Sydell System F Sheep & Goat Corral and Working System – Item 0988

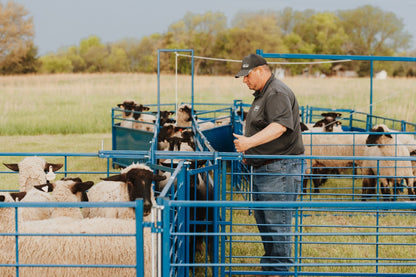

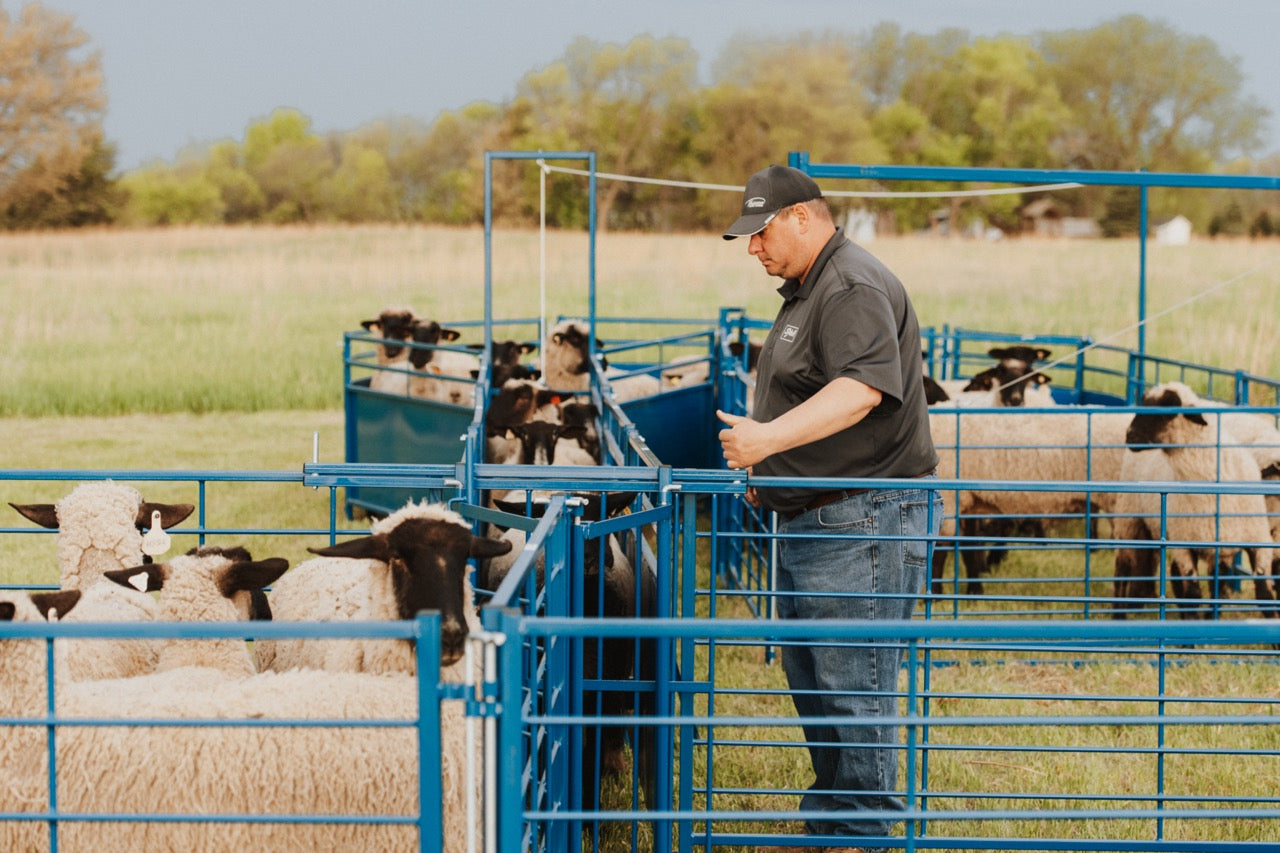

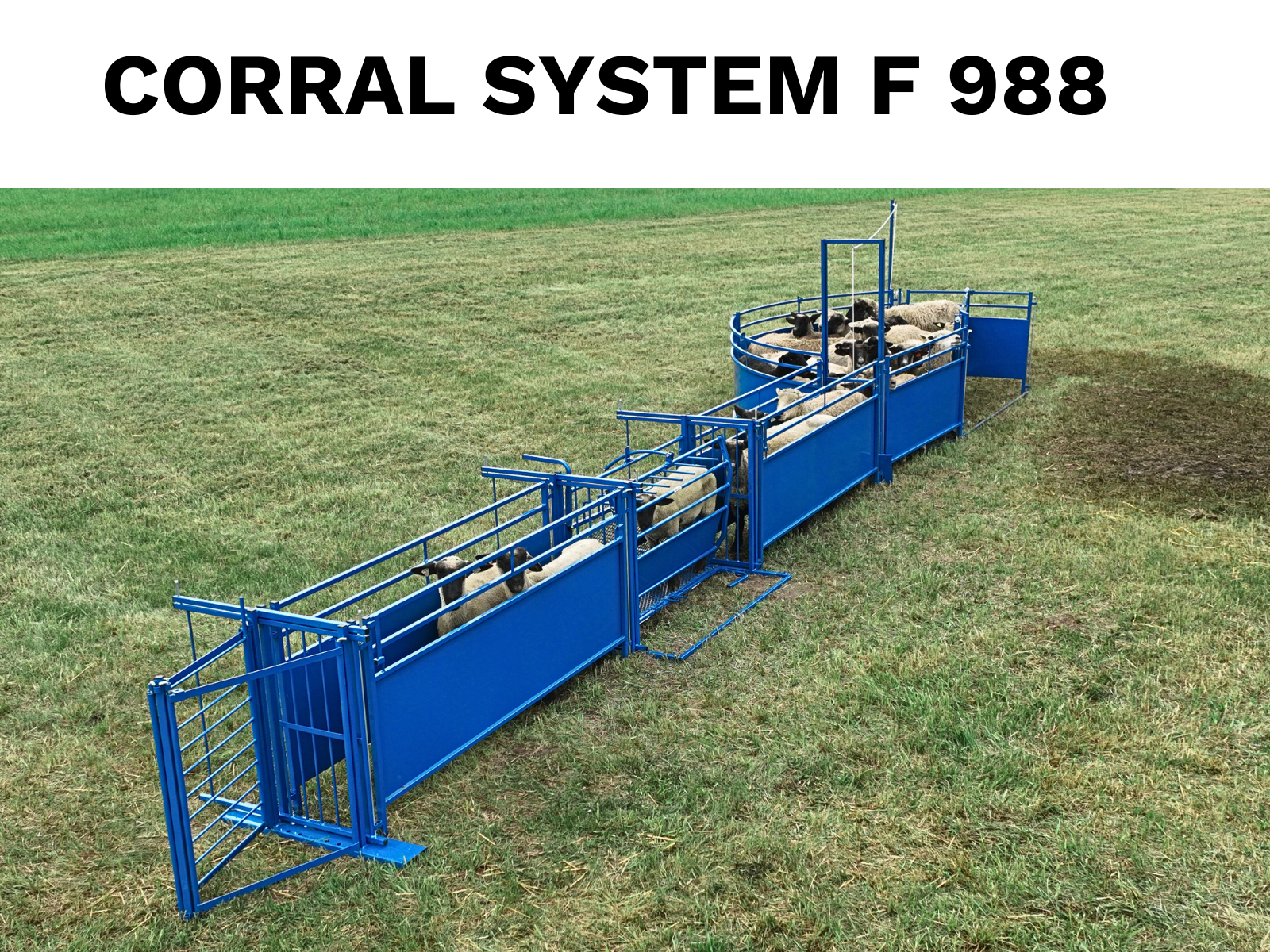

The Sydell System F Corral and Working System (Item 0988) is a complete sheep and goat handling system with an integrated Tilt Table, designed for producers who need an organized setup for crowding, moving, sorting, restraining, hoof trimming, examining, treating, and working livestock. Built from heavy-duty American steel, System F combines a curved crowding tub, solid working alley, 2-way sorting system, gates, anti-backup equipment, support components, and the 0930 Tilt Table into one complete handling system.

With an approximate footprint of 38 ft 3 in L x 7 ft 10 in W and an approximate weight of 1,125 lb, System F provides extensive handling and treatment capabilities while maintaining a relatively narrow overall footprint.

System Specifications

• Sydell Item Number: 0988
• Approximate Overall Size: 38 ft 3 in L x 7 ft 10 in W
• Approximate Weight: 1,125 lb
• Full Working Line with Tilt Table: Approximately 14.5 ft
• Primary Panel Height: 42 in
• Construction: Heavy-duty American steel
• Designed For: Sheep and goats
• System Type: Crowding, sorting, restraint, hoof trimming, treatment, and livestock handling system

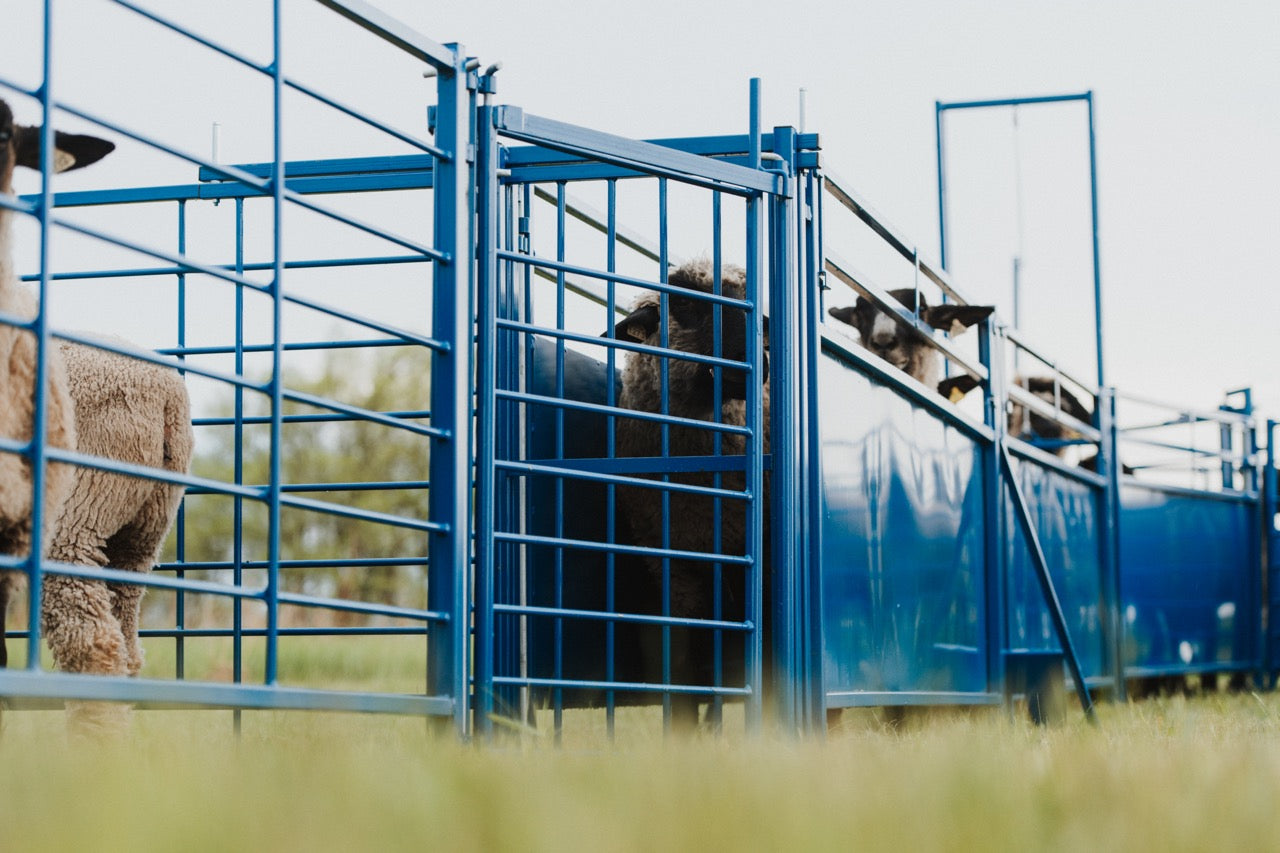

• Assembly: Modular panels and gates connected with heavy-duty drop pins
• Featured Handling Equipment: 0930 Tilt Table

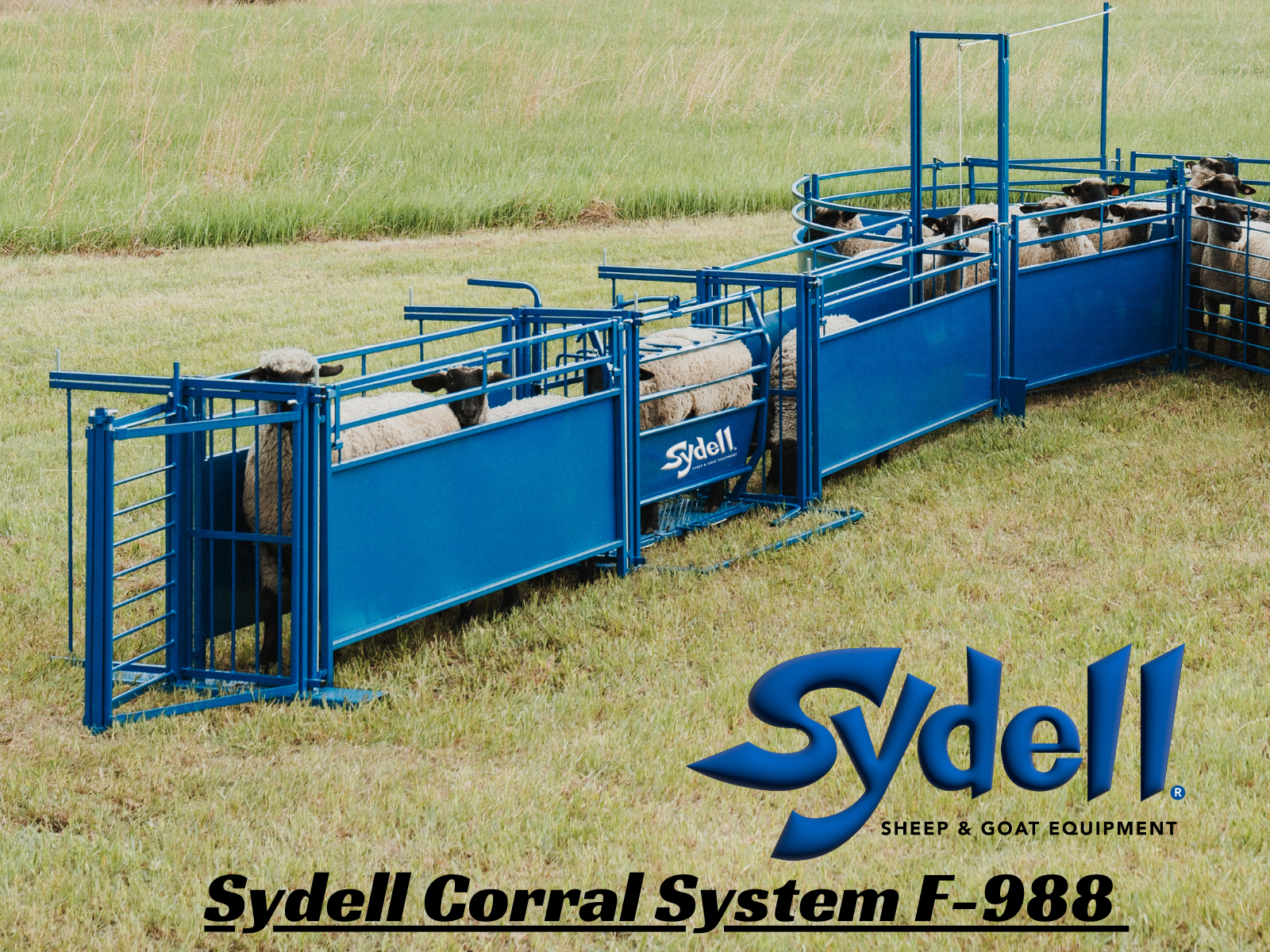

Working Alley

• Working Alley with Tilt Table: System F incorporates the 0930 Tilt Table directly into the working line, creating an overall working area of approximately 14.5 ft for moving, restraining, and handling sheep and goats.

The solid 42 in high working-alley panels help limit outside distractions while providing secure containment as animals move through the system. Livestock can move directly through the alley into the Tilt Table for hoof trimming, hoof inspection, treatment, health checks, and other routine management procedures.

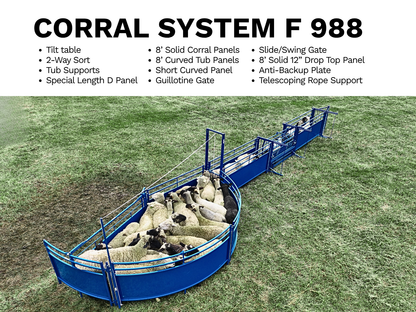

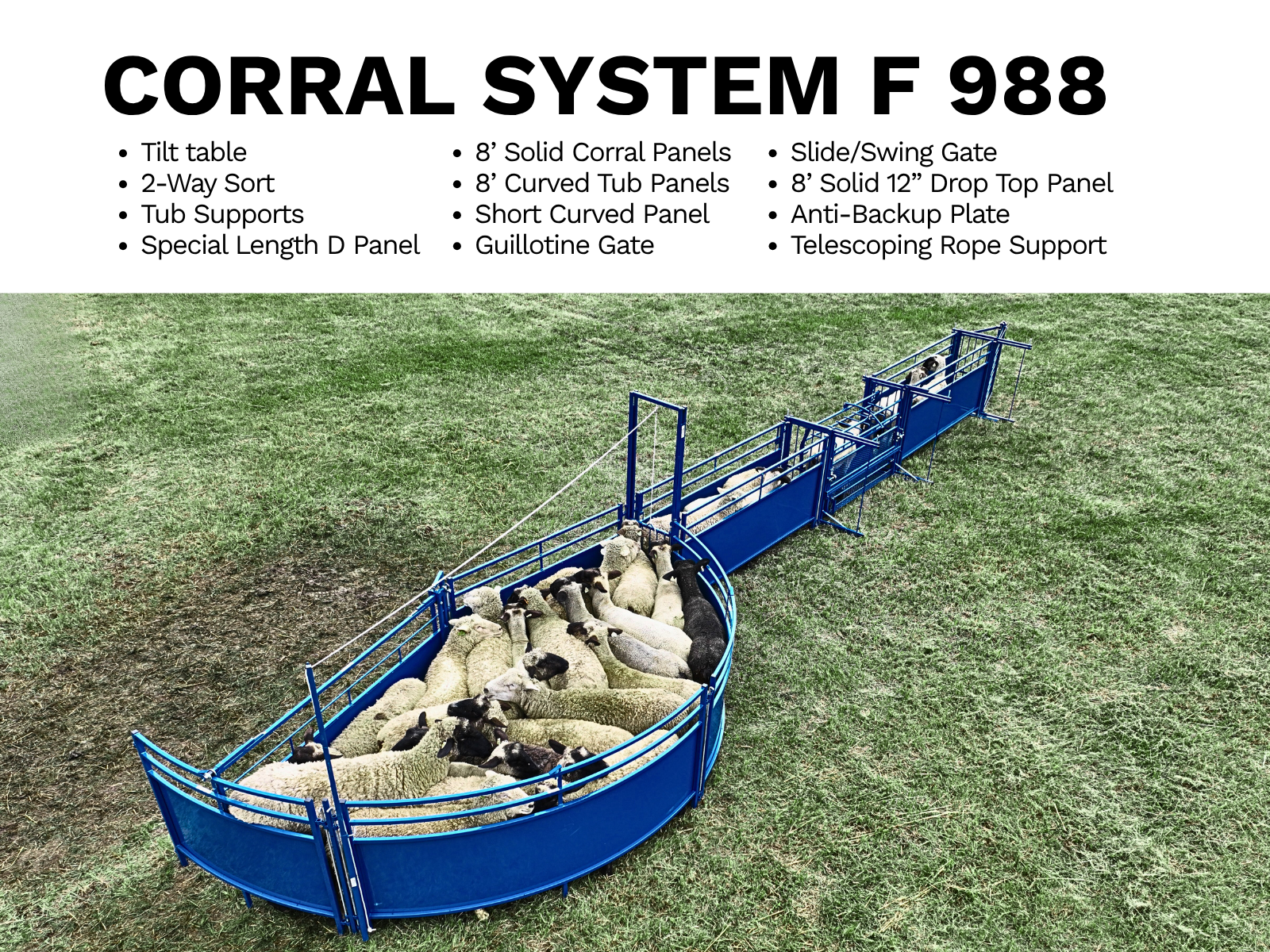

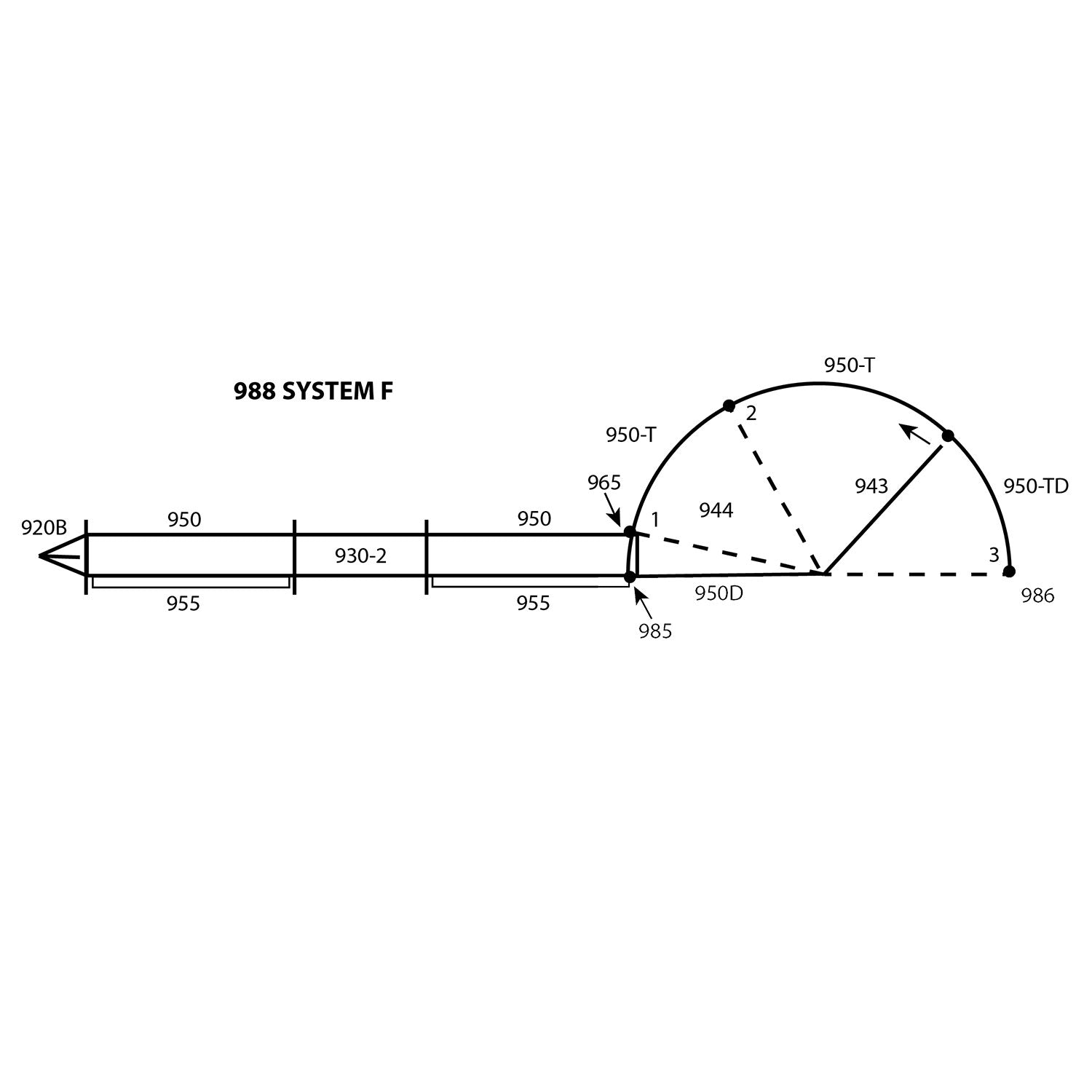

What’s Included in System F

• (1) 0930 – Tilt Table
• (1) 0920B – 2-Way Sort
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944 – Tub Support Assembly
• (2) 0950 – 8 ft Solid Corral Panels
• (1) 0950D – Special-Length Solid Panel
• (2) 0950-T – 8 ft Curved Solid Tub Panels
• (1) 0950-TD – Short Curved Tub Panel
• (2) 0955 – 8 ft Solid Panels with 12 in Drop Top
• (1) 0965 – Flat Anti-Backup Plate
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (24) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

The curved crowding tub uses 42 in high solid panels along with the 0950-TD Short Curved Tub Panel to form the System F crowding area and help guide sheep and goats into the solid working alley while limiting outside distractions.

The 0985 Guillotine Gate helps control livestock entry into the working area, while the 0965 Flat Anti-Backup Plate helps discourage animals from backing through the alley. Animals can then move directly into the 0930 Tilt Table for controlled restraint and positioning before continuing toward the 0920B 2-Way Sort.

System F is designed for everyday sheep and goat management, including hoof trimming, hoof inspection, foot care, health checks, vaccinations, identification, treatment, examination, breeding management, sorting, and routine livestock handling.

0930 Tilt Table

The Sydell 0930 Tilt Table is the centerpiece of System F and provides controlled restraint and positioning of sheep and goats for a variety of management procedures.

One of its primary uses is hoof trimming and hoof care. Positioning the animal in the Tilt Table gives the handler better access to the feet while reducing the amount of manual restraint required during trimming and inspection.

The Tilt Table is useful for:

• Hoof trimming
• Hoof inspection and routine foot care
• Health checks and examinations
• Vaccinations and treatments
• Identification and tagging
• General livestock restraint
• Other routine sheep and goat management procedures

Integrating the Tilt Table directly into System F allows sheep and goats to move from the crowding area through the working alley and into the restraint unit without having to move the animal to a separate handling location.

The Tilt Table is recommended for animals approximately 100 lb and larger. It may not be suitable for animals with wide side horns that interfere with safe positioning in the table.

Key Features & Benefits

• Complete sheep and goat working system with integrated Tilt Table
• Approximate footprint of 38 ft 3 in x 7 ft 10 in
• Approximately 14.5 ft full working line including the Tilt Table
• Designed for hoof trimming and routine hoof care
• Tilt Table provides controlled animal restraint and improved access to the feet
• 42 in high solid panels help limit outside distractions
• Curved solid crowding tub helps guide livestock into the working area
• 2-Way Sort directs animals into two separate groups
• 8 ft Slide/Swing Gate provides flexible livestock access and control
• 12 in drop-top panels provide easier handler access
• Guillotine Gate helps control livestock movement into the working alley
• Anti-backup equipment helps discourage animals from backing through the system
• Heavy-duty American steel construction
• Modular drop-pin design allows components to be assembled and reconfigured
• Narrow overall width makes efficient use of available livestock handling space

Detailed System F Components

• 1-0930 Tilt Table
  Provides controlled restraint and positioning for hoof trimming, hoof inspection, treatment, examination, and routine sheep and goat care.
• 1-0920B 2-Way Sort
  Directs sheep and goats into two separate sorting directions.
• 1-0943-8 8 ft Slide/Swing Gate
  Slides or swings open for flexible livestock access and control. 42 in H.
• 1-0944 Tub Support Assembly
  Supports and stabilizes the crowding tub section.
• 2-0950 8 ft Solid Corral Panel
  Solid panel used to guide livestock and limit outside distractions. 42 in H.
• 1-0950D Special-Length Solid Panel
  Special-length solid panel designed to complete the System F crowding and working layout. 42 in H.
• 2-0950-T 8 ft Curved Solid Tub Panel
  Forms the curved crowding tub and helps guide livestock toward the working alley. 42 in H.
• 1-0950-TD Short Curved Tub Panel
  Short curved solid panel used to complete the System F crowding tub. 42 in H.
• 2-0955 8 ft Solid Panel with 12 in Drop Top
  Solid working-alley panel with a lowered top section for easier handler access. 42 in overall height.
• 1-0965 Flat Anti-Backup Plate
  Helps discourage sheep and goats from backing up in the working alley.

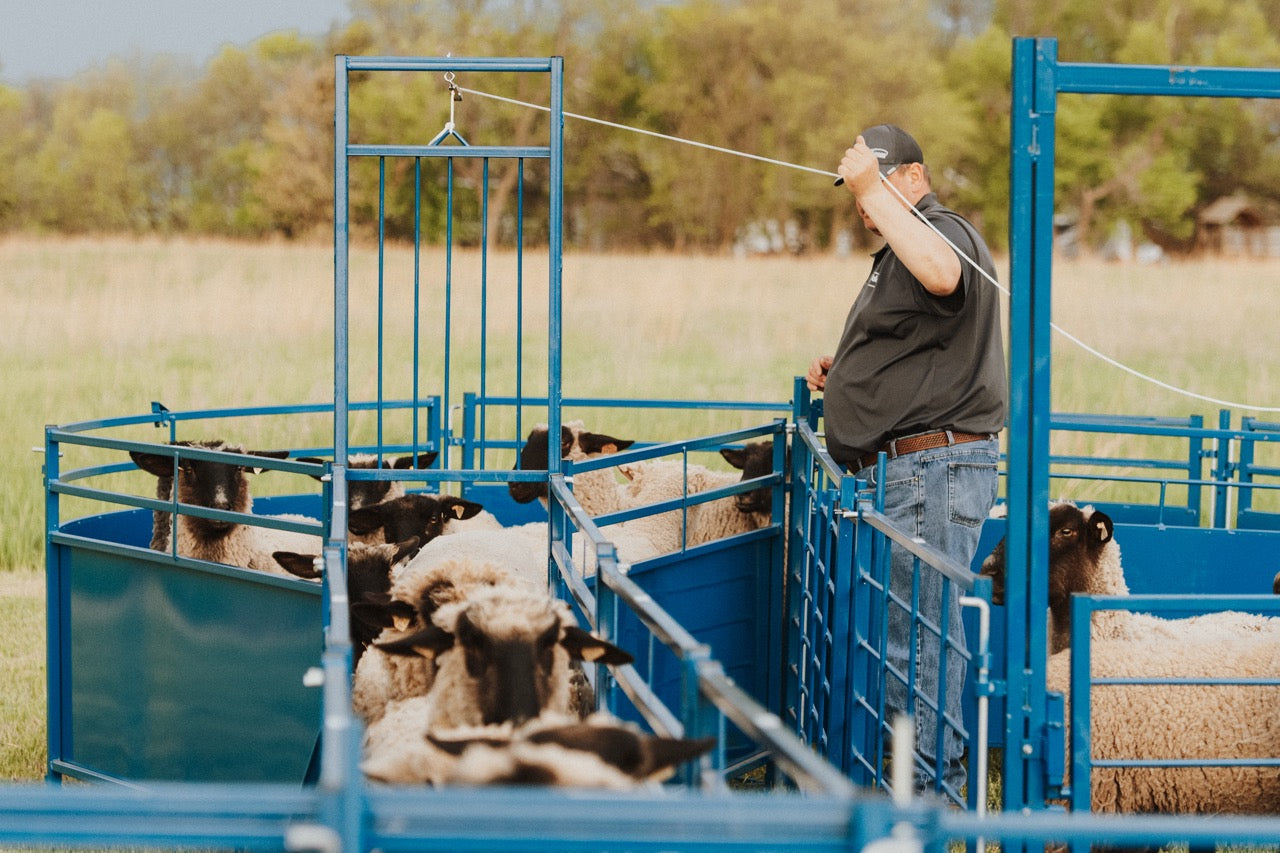

• 1-0985 Guillotine Gate
  Opens and closes vertically to control livestock movement into the working area.
• 1-0986 Telescoping Rope Support
  Supports the rope-operated Guillotine Gate system.
• 24-0945 Heavy-Duty Drop Pin
  Zinc-plated 1/2 in x 42 in pin used to securely connect panels, gates, and system components.

Common Uses

• Hoof trimming
• Hoof inspection and foot care
• Sheep and goat restraint
• Vaccinations and health checks
• Treatment and examination
• Identification and tagging
• Breeding management
• Sheep and goat sorting
• Crowding and controlled livestock movement
• Separating livestock into management groups
• Routine flock and herd management

Ideal For

• Sheep working systems
• Goat working systems
• Producers who regularly perform hoof trimming and hoof care
• Operations wanting an integrated Tilt Table handling system
• Family farms and ranches
• Breeding and registered stock operations
• Commercial sheep and goat producers
• Universities and research facilities
• Veterinary and livestock health facilities
• Operations needing a complete crowding, restraint, sorting, hoof-care, and treatment system

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
