Complete Corral System A- Working System for Sheep & Goats | Sydell #0991

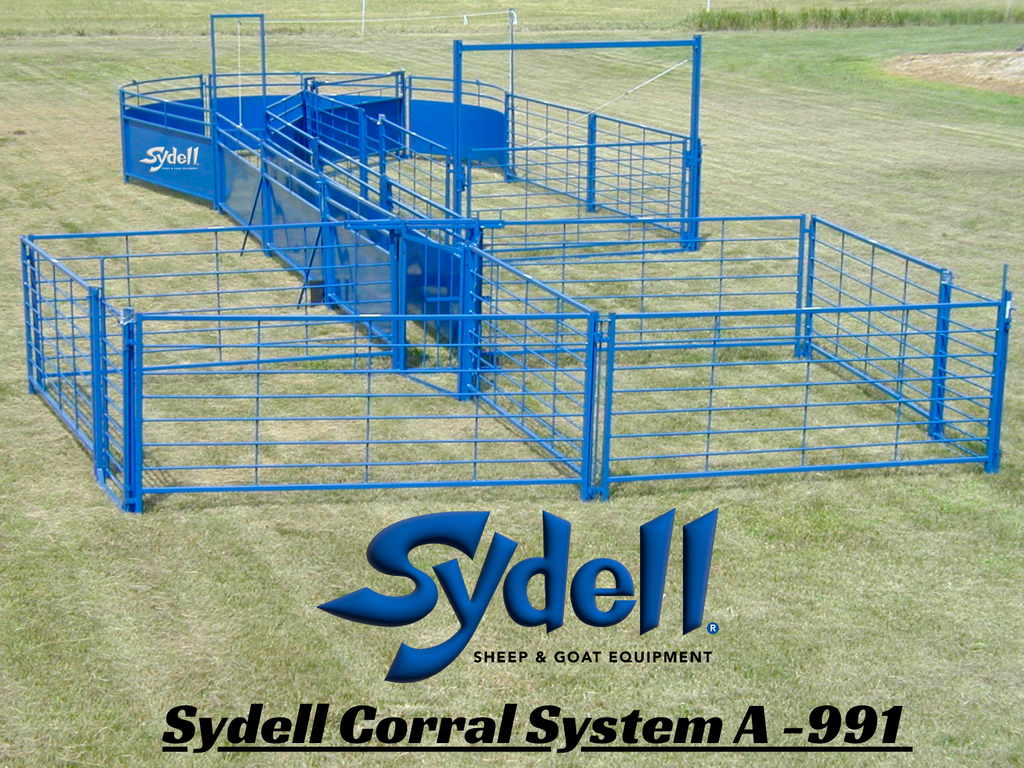

Sydell System A Sheep & Goat Corral and Working System – Item 0991

The Sydell System A Corral and Working System (Item 0991) is a complete sheep and goat handling system designed for producers who need an organized setup for crowding, sorting, moving, separating, and working livestock. Built from heavy-duty American steel, System A combines a crowding tub, solid working alley, sorting equipment, gates, open and solid corral panels, anti-backup equipment, and support components into one complete system.

With an approximate footprint of 50 ft 5 in L x 21 ft 8 in W and an approximate weight of 2,200 lb, System A provides substantial working and holding space for sheep and goat operations.

System Specifications

• Sydell Item Number: 0991
• Approximate Overall Size: 50 ft 5 in L x 21 ft 8 in W
• Approximate Weight: 2,200 lb
• Primary Panel Height: 42 in
• Construction: Heavy-duty American steel
• Designed For: Sheep and goats
• System Type: Corral, crowding, sorting, and working system
• Assembly: Modular panels and gates connected with heavy-duty drop pins

Working Alley

• 24 ft Working Alley: The System 0991 working alley extends approximately 24 ft from the 0985 Guillotine Gate to the 0920B 2-Way Sort, providing a controlled path for moving sheep and goats through the system before sorting or directing them into separate groups.

Holding Pen Sizes

• End Holding Pens: Two approximately 8 ft x 8 ft holding pens are located at the end of the corral system. Each holding area includes a 30 in Walk-Thru Gate for convenient handler access.
• Main Holding Pen: System 0991 also includes an approximately 26 ft 9 in L x 10 ft 5 in W holding area with a 30 in Walk-Thru Gate for convenient handler access. The 0942-8 8 ft Arched Swing Gate provides a wide opening to make loading sheep and goats into the holding area easier and helps improve livestock flow into the system.

These holding areas provide space for staging, separating, and managing sheep and goats before or after they move through the crowding tub, working alley, and sorting area.

What’s Included in System A

• (1) 0920B – 2-Way Sort
• (3) 0940 – Walk-Thru Gates
• (1) 0942-8 – 8 ft Arched Swing Gate
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944 – Tub Support Assembly
• (5) 0950 – 8 ft Solid Corral Panels
• (3) 0950-T – 8 ft Curved Solid Tub Panels
• (3) 0955 – Solid Panels with 12 in Drop Top
• (11) 0961 – Open Corral Panels with 1/2 in Rods
• (1) 0965 – Flat Anti-Backup Plate
• (2) 0970 – Corral Support Stands
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (52) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

The curved crowding tub is built with 8 ft solid tub panels, 42 in high, helping guide sheep and goats into the solid working alley while limiting outside distractions. Open corral panels at each end of the system provide visibility and secure containment, while multiple gates help control livestock flow and give handlers convenient access throughout the setup.

System A is designed for everyday sheep and goat management, including sorting, vaccinations, health checks, identification, breeding management, hoof care, treatment, weighing preparation, flock or herd separation, and routine livestock handling.

Key Features & Benefits

• Complete sheep and goat corral and working system
• Curved solid crowding tub helps direct animals into the working alley
• 8 ft solid tub panels are 42 in high
• Solid working-alley panels help limit outside distractions
• Open corral panels provide visibility and secure containment
• 2-Way Sort allows animals to be separated into different groups
• Multiple gates provide controlled livestock movement and handler access
• Anti-backup equipment helps discourage animals from backing through the alley
• Heavy-duty American steel construction
• Modular drop-pin design allows components to be assembled or reconfigured
• Designed for routine livestock management on sheep and goat operations

Detailed System A Components

• 1-0920B 2-Way Sort
  Directs sheep and goats into two separate sorting directions.
• 3-0940 Walk-Thru Gate
  Provides convenient handler access between sections of the system. 30-1/4 in W x 42 in H.
• 1-0942-8 8 ft Arched Swing Gate
  Provides a wide opening for moving livestock into or out of the system. 42 in gate height with an 80 in overall arch height.
• 1-0943-8 8 ft Slide/Swing Gate
  Slides or swings open for flexible livestock access and control. 42 in H.
• 1-0944 Tub Support Assembly
  Supports and stabilizes the crowding tub section.
• 5-0950 8 ft Solid Corral Panel
  Solid panel used to guide livestock and limit outside distractions. 42 in H.
• 3-0950-T 8 ft Curved Solid Tub Panel
  Forms the curved crowding tub and helps guide animals toward the working alley. 42 in H.
• 3-0955 Solid Panel with 12 in Drop Top
  Solid working-alley panel with a lowered top section for easier handler access. 42 in overall height.
• 11-0961 Open Corral Panel
  Open livestock panel with 1/2 in rods for containment and visibility. 42 in H.
• 1-0965 Flat Anti-Backup Plate
  Helps discourage sheep and goats from backing up in the working alley.
• 2-0970 Corral Support Stand
  Provides added stability to the corral panels.
• 1-0985 Guillotine Gate
  Opens and closes vertically to control livestock movement through the working alley.
• 1-0986 Telescoping Rope Support
  Supports the rope-operated gate system.
• 52-0945 Heavy-Duty Drop Pin
  Zinc-plated 1/2 in x 42 in pin used to connect panels and gates.

Common Uses

• Sheep and goat sorting
• Crowding and controlled livestock movement
• Working and handling
• Vaccinations and health checks
• Identification and tagging
• Breeding management
• Hoof care and treatment
• Separating livestock into management groups
• Moving animals through weighing or treatment areas
• Routine flock and herd management

Ideal For

• Sheep working systems
• Goat working systems
• Family farms and ranches
• Breeding and registered stock operations
• Commercial sheep and goat producers
• Universities and research facilities
• Veterinary and livestock health facilities
• Operations needing a complete crowding, sorting, corral, and working system

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
