Complete Corral System A- Working System for Sheep & Goats | Sydell #0991

Sydell System A Sheep & Goat Corral and Working System – Item 0991

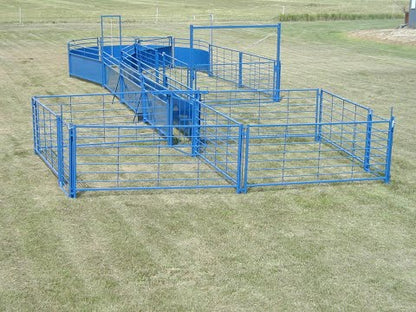

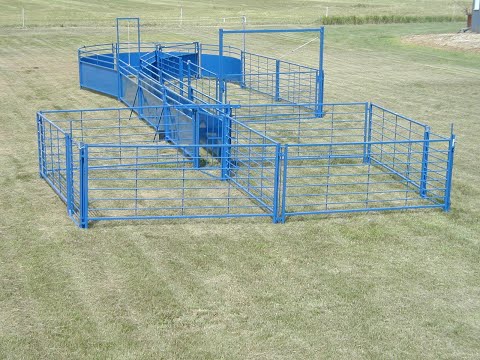

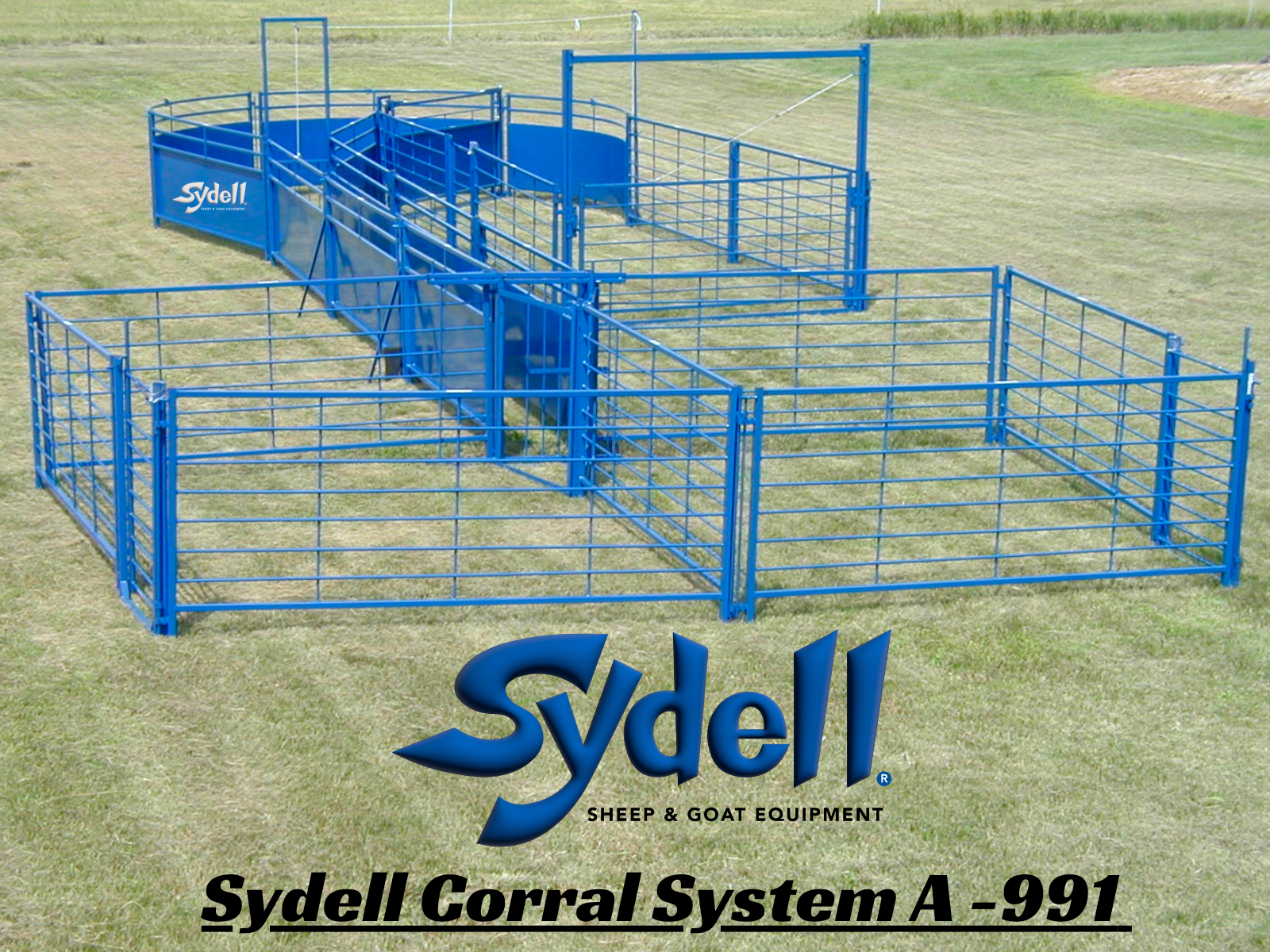

The Sydell System A Corral and Working System (Item 0991) is a complete sheep and goat handling system designed for producers who need an organized setup for crowding, sorting, moving, separating, and working livestock. Built from heavy-duty American steel, System A combines the 0992 crowding tub, solid working alley, sorting equipment, gates, open and solid corral panels, anti-backup equipment, and support components into one complete system.

With an overall footprint of 50 ft 5 in L x 21 ft 8 in W and a weight of 2,200 lb, System A provides substantial working and holding space for sheep and goat operations.

System Specifications

Sydell Item Number: 0991
Overall Size: 50 ft 5 in L x 21 ft 8 in W
Weight: 2,200 lb
Primary Panel Height: 42 in
Construction: Heavy-duty American steel
Designed For: Sheep and goats
System Type: Corral, crowding, sorting, and working system
Assembly: Modular panels and gates connected with heavy-duty drop pins

0992 Crowding Tub – 30-Head Capacity

System A includes the Sydell 0992 Tub Section, creating a durable, efficient crowding area for directing sheep and goats into the working alley.

The 0992 Tub Section holds up to 30 head of full-grown sheep or goats and has a 14 ft diameter. Three 8 ft curved solid tub panels form the crowding area, while the 8 ft Slide/Swing Gate allows the operator to move livestock forward and control animal flow into the working alley.

The solid, curved design helps guide animals toward the alley while limiting outside distractions and providing better control during routine livestock handling.

0992 Tub Includes:

• 1 – 0943-8: 8 ft Slide/Swing Gate
• 1 – 0944: Tub Support Assembly
• 3 – 0950-T: 8 ft Curved Solid Tub Panels

Tub Capacity: Up to 30 head of full-grown sheep or goats
Tub Diameter: 14 ft

Working Alley

24 ft Working Alley: The System 0991 working alley extends 24 ft from the 0985 Guillotine Gate to the 0920B 2-Way Sort, providing a controlled path for moving sheep and goats through the system before sorting or directing them into separate groups.

Solid working-alley panels help limit outside distractions, while the anti-backup equipment helps discourage animals from backing through the alley.

Holding Pen Sizes

End Holding Pens: Two 8 ft x 8 ft holding pens are located at the end of the corral system. Each holding area includes a 30 in Walk-Thru Gate for convenient handler access.

Main Holding Pen: System 0991 also includes a 26 ft 9 in L x 10 ft 5 in W holding area with a 30 in Walk-Thru Gate for convenient handler access. The 0942-8 8 ft Arched Swing Gate provides a wide opening to make loading sheep and goats into the holding area easier and helps improve livestock flow into the system.

These holding areas provide space for staging, separating, and managing sheep and goats before or after they move through the crowding tub, working alley, and sorting area.

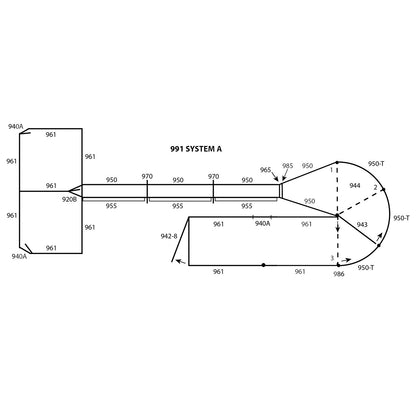

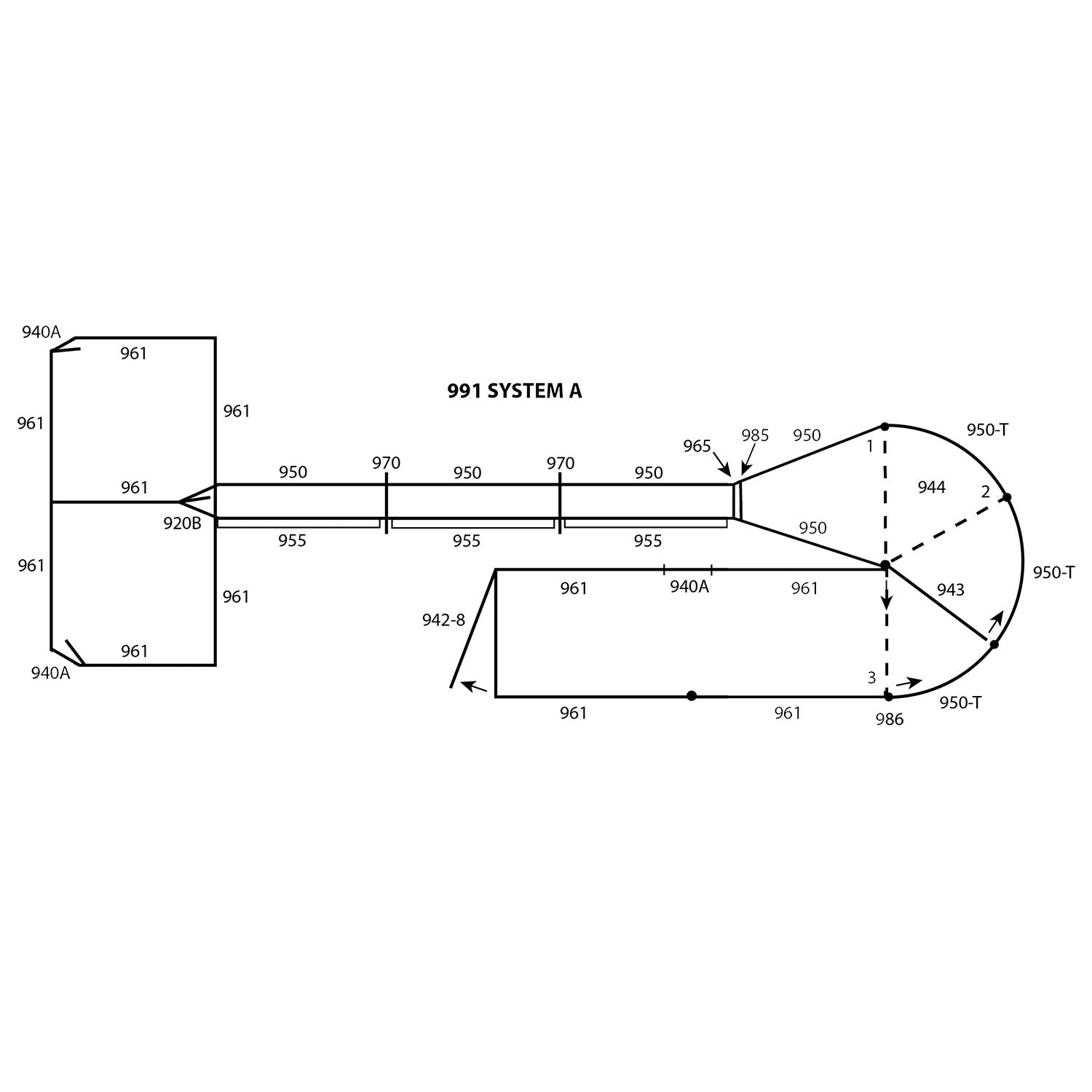

What’s Included in System A

• (1) 0920B – 2-Way Sort
• (3) 0940 – Walk-Thru Gates
• (1) 0942-8 – 8 ft Arched Swing Gate
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944 – Tub Support Assembly
• (5) 0950 – 8 ft Solid Corral Panels
• (3) 0950-T – 8 ft Curved Solid Tub Panels
• (3) 0955 – Solid Panels with 12 in Drop Top
• (11) 0961 – Open Corral Panels with 1/2 in Rods
• (1) 0965 – Flat Anti-Backup Plate
• (2) 0970 – Corral Support Stands
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (52) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

The 0992 curved crowding tub is built with 8 ft solid tub panels, 42 in high, and holds up to 30 head of full-grown sheep or goats. The curved design helps guide livestock into the solid working alley while limiting outside distractions.

Open corral panels at each end of the system provide visibility and secure containment, while multiple gates help control livestock flow and give handlers convenient access throughout the setup.

System A is designed for everyday sheep and goat management, including sorting, vaccinations, health checks, identification, breeding management, hoof care, treatment, weighing preparation, flock or herd separation, and routine livestock handling.

Key Features & Benefits

• Complete sheep and goat corral and working system
• 0992 crowding tub holds up to 30 head of full-grown sheep or goats
• 14 ft diameter crowding tub
• Curved solid crowding tub helps direct animals into the working alley
• 8 ft solid tub panels are 42 in high
• 24 ft working alley provides a controlled livestock path
• Solid working-alley panels help limit outside distractions
• Open corral panels provide visibility and secure containment
• Multiple gates help control livestock flow
• Two-way sorting gate helps separate sheep and goats
• Anti-backup equipment helps discourage animals from backing through the alley
• Holding pens provide space for staging and separating livestock
• Heavy-duty American steel construction
• Modular design assembles with heavy-duty zinc-plated drop pins
• Complete system for routine sheep and goat handling operations ki
