Sydell System E Sheep & Goat Corral and Working System – Item 0987

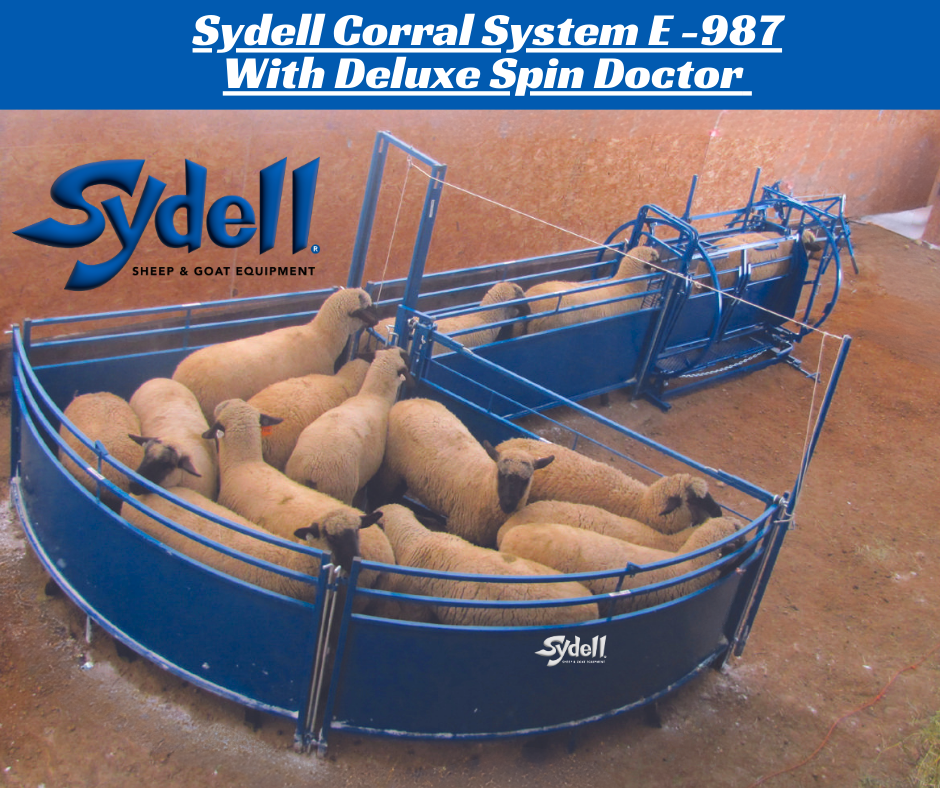

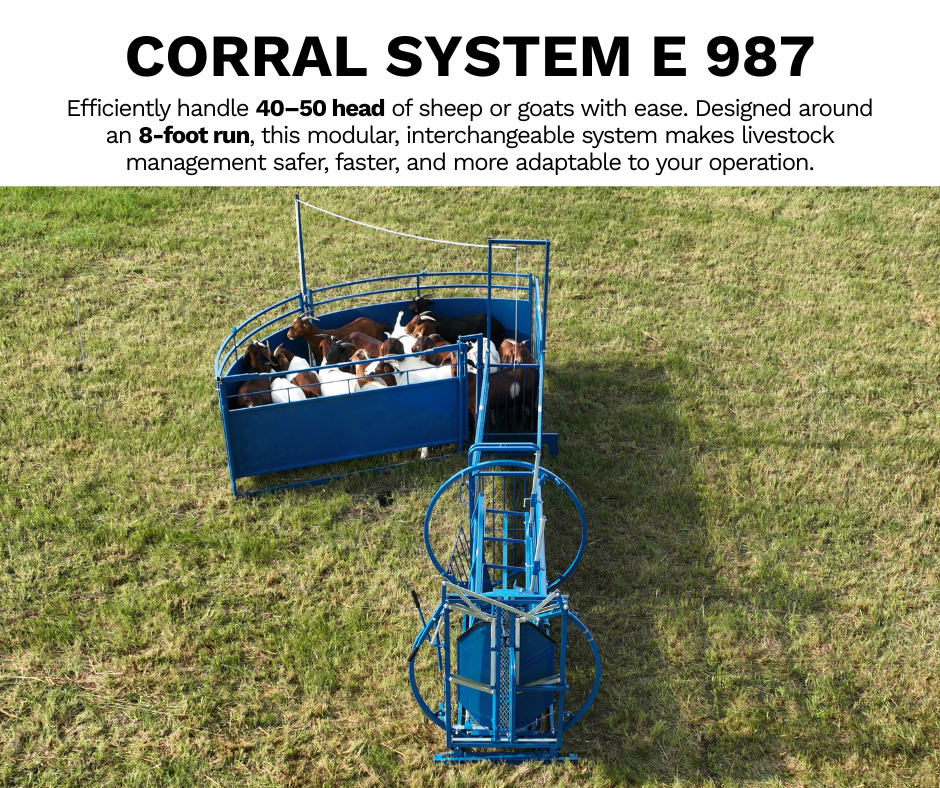

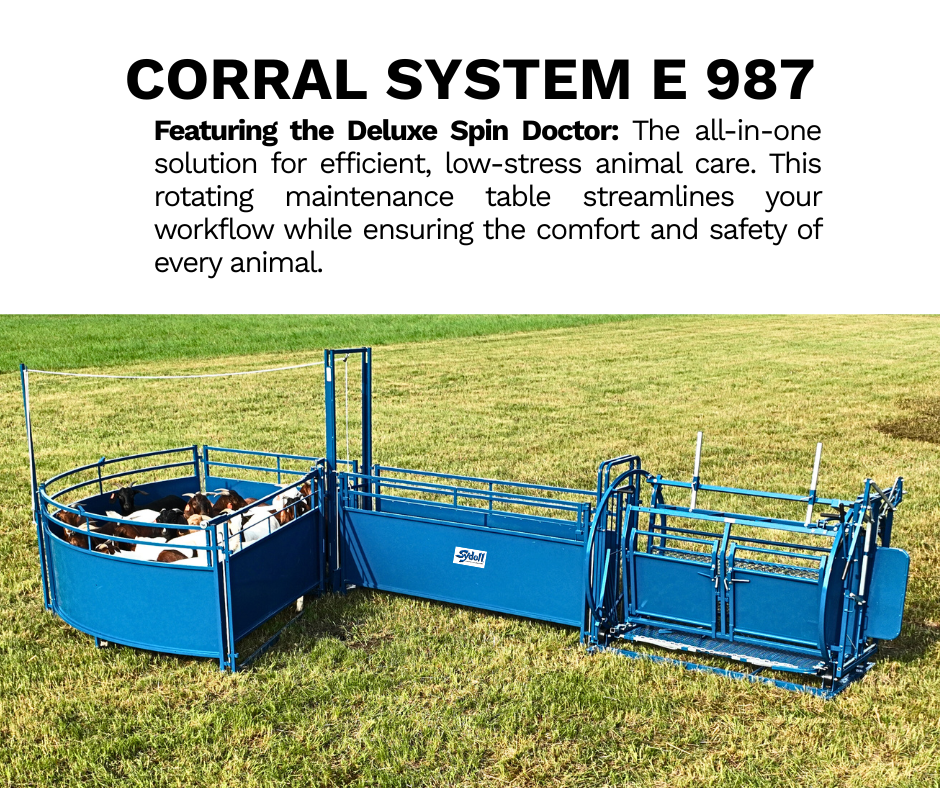

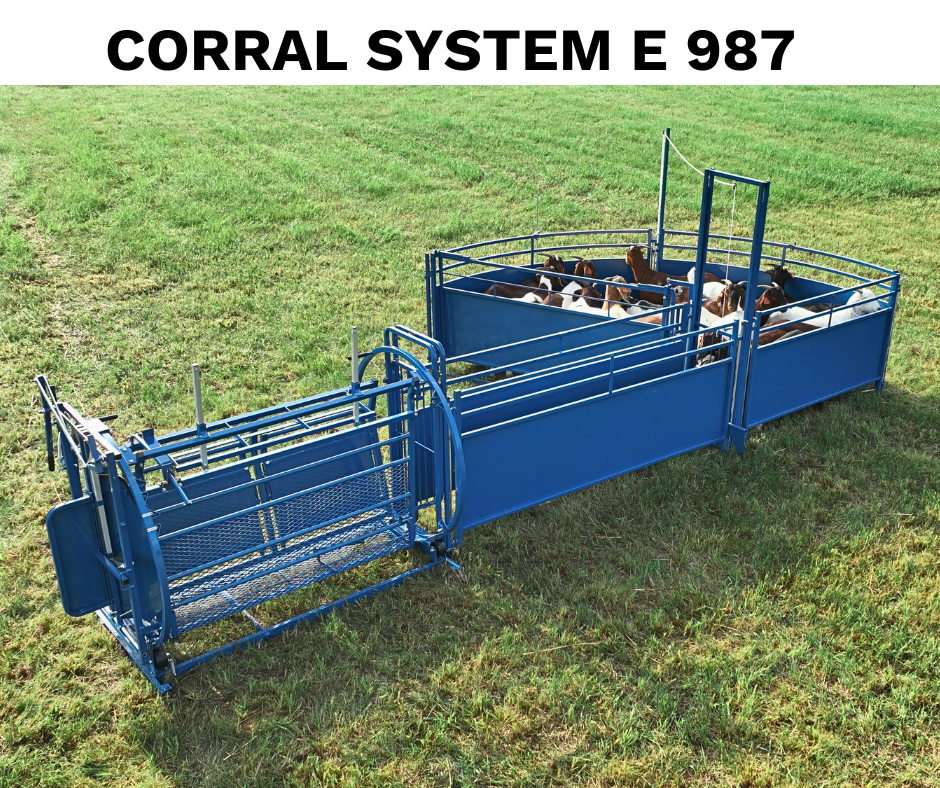

The Sydell System E Corral and Working System (Item 0987) is a complete sheep and goat handling system built around the Sydell Spin Doctor. Designed for producers who want an organized setup for crowding, moving, restraining, examining, treating, and working livestock, System E combines a curved crowding tub, solid working alley, gates, anti-backup, and the Spin Doctor into one compact handling system.

With an approximate footprint of 20 ft 1 in L x 9 ft 4 in W and an approximate weight of 975 lb, System E provides extensive livestock handling capability without requiring a large corral footprint.

System Specifications

• Sydell Item Number: 0987
• Approximate Overall Size: 20 ft 1 in L x 9 ft 4 in W
• Approximate Weight: 975 lb
• Working Alley Length: 8 ft
• Primary Panel Height: 42 in
• Construction: Heavy-duty American steel
• Designed For: Sheep and goats
• System Type: Crowding, restraint, treatment, and livestock handling system
• Assembly: Modular panels and components connected with heavy-duty drop pins
• Featured Handling Equipment: 0938 Spin Doctor

Working Alley

• 8 ft Working Alley: The System 0987 working alley provides a controlled path for moving sheep and goats from the crowding area into the 0938 Spin Doctor for restraint, inspection, hoof care, treatment, and other livestock management procedures.

The solid 42 in high panels help limit outside distractions and provide secure containment as livestock move toward the handling area.

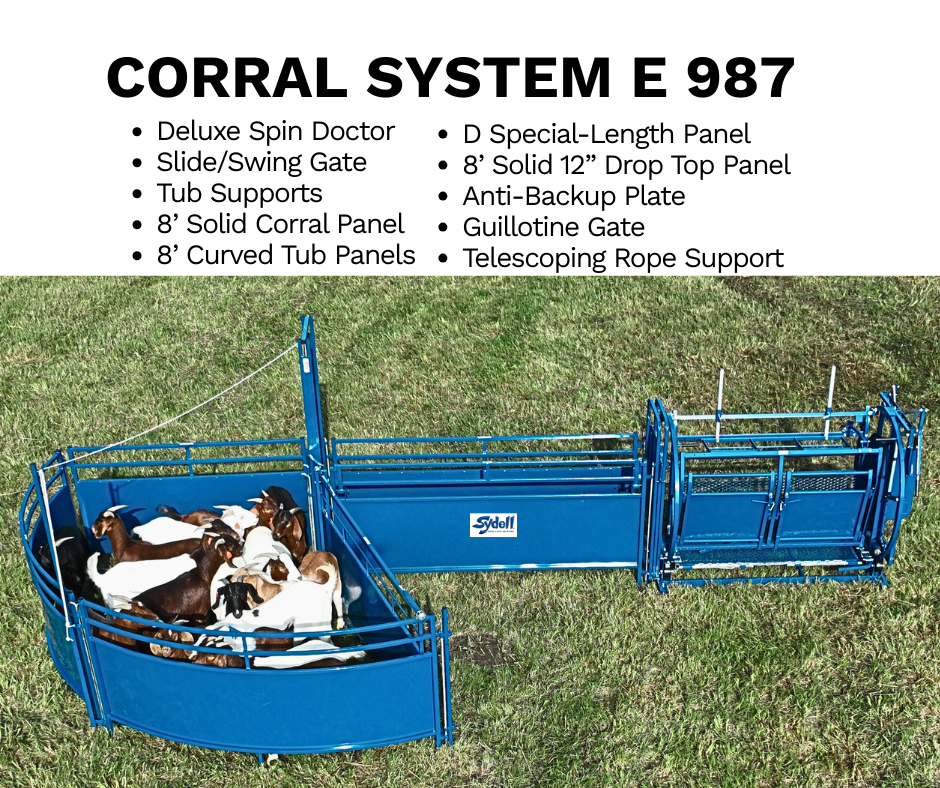

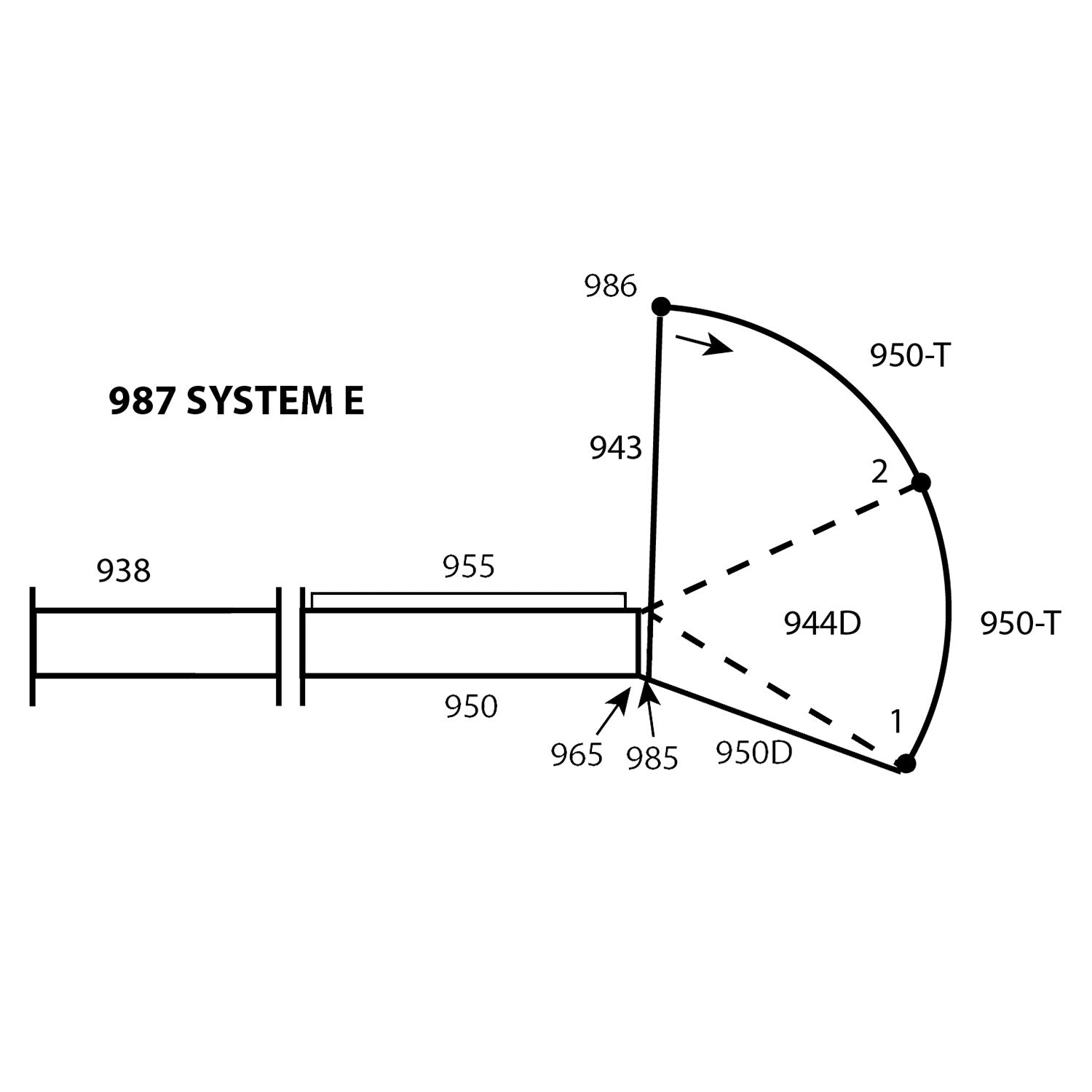

What’s Included in System E

• (1) 0938 – Spin Doctor
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944D – Tub Support Assembly
• (1) 0950 – 8 ft Solid Corral Panel
• (1) 0950D – Special-Length Solid Panel
• (2) 0950-T – 8 ft Curved Solid Tub Panels
• (1) 0955 – 8 ft Solid Panel with 12 in Drop Top
• (1) 0965 – Flat Anti-Backup Plate
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (12) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

The curved crowding tub uses solid 42 in high panels to help guide sheep and goats into the 8 ft solid working alley while limiting outside distractions.

The 0985 Guillotine Gate helps control livestock entry into the working area, while the 0965 Flat Anti-Backup Plate helps discourage animals from backing through the alley. Livestock can then move directly into the 0938 Spin Doctor, providing producers with a dedicated area for controlled restraint and animal care.

System E is designed for everyday sheep and goat management, including hoof trimming, hoof inspection, health checks, vaccinations, identification, breeding management, treatment, examination, and routine livestock handling.

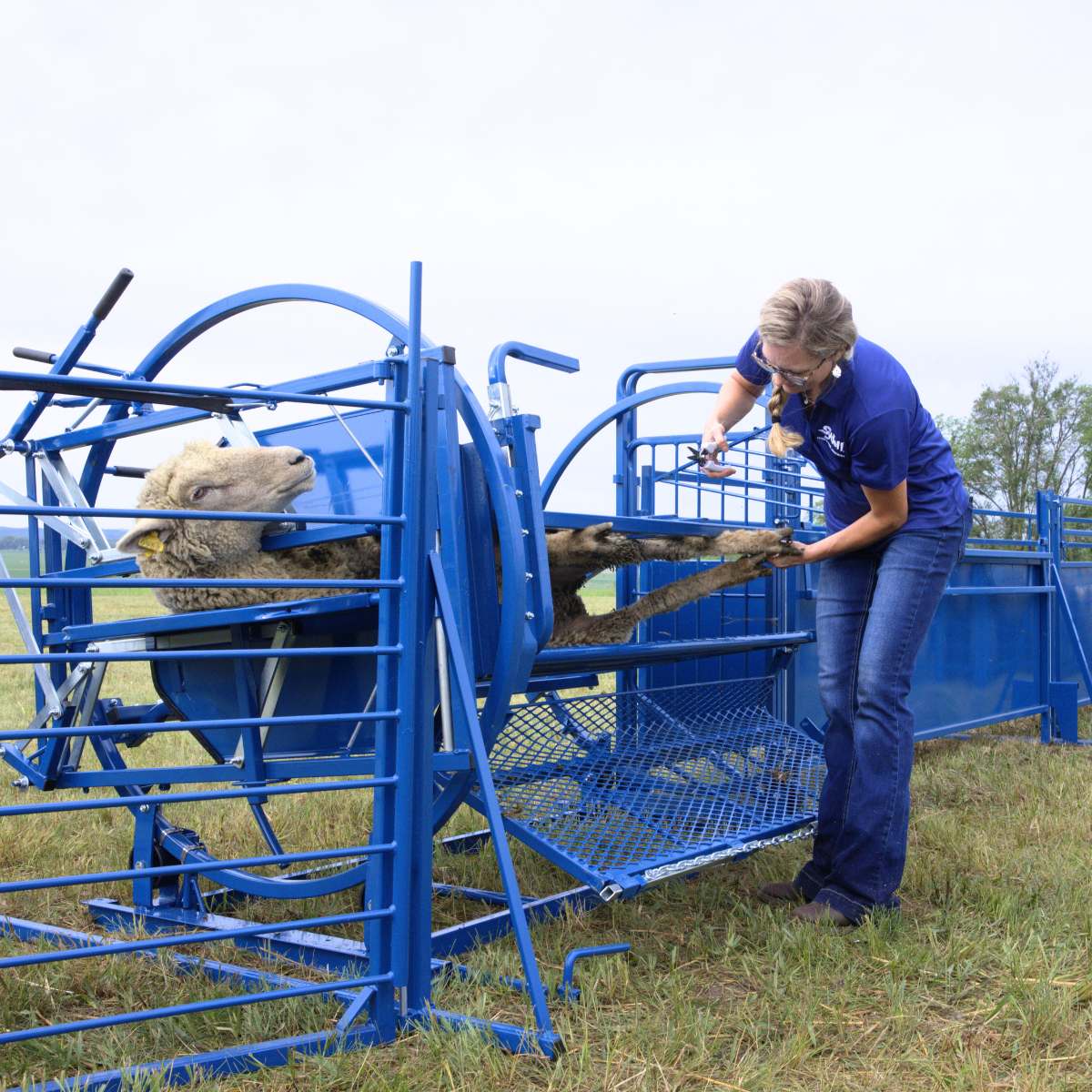

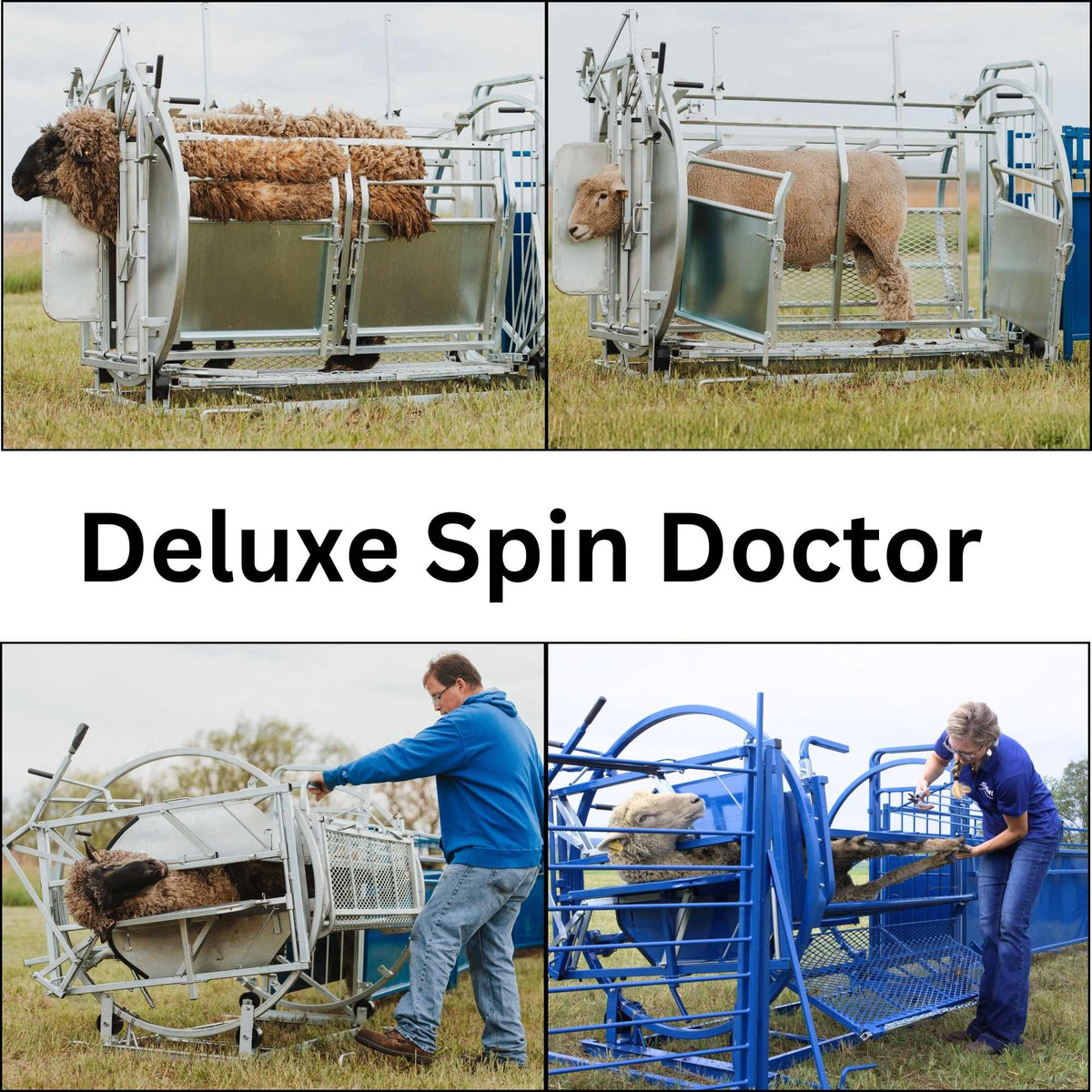

0938 Spin Doctor

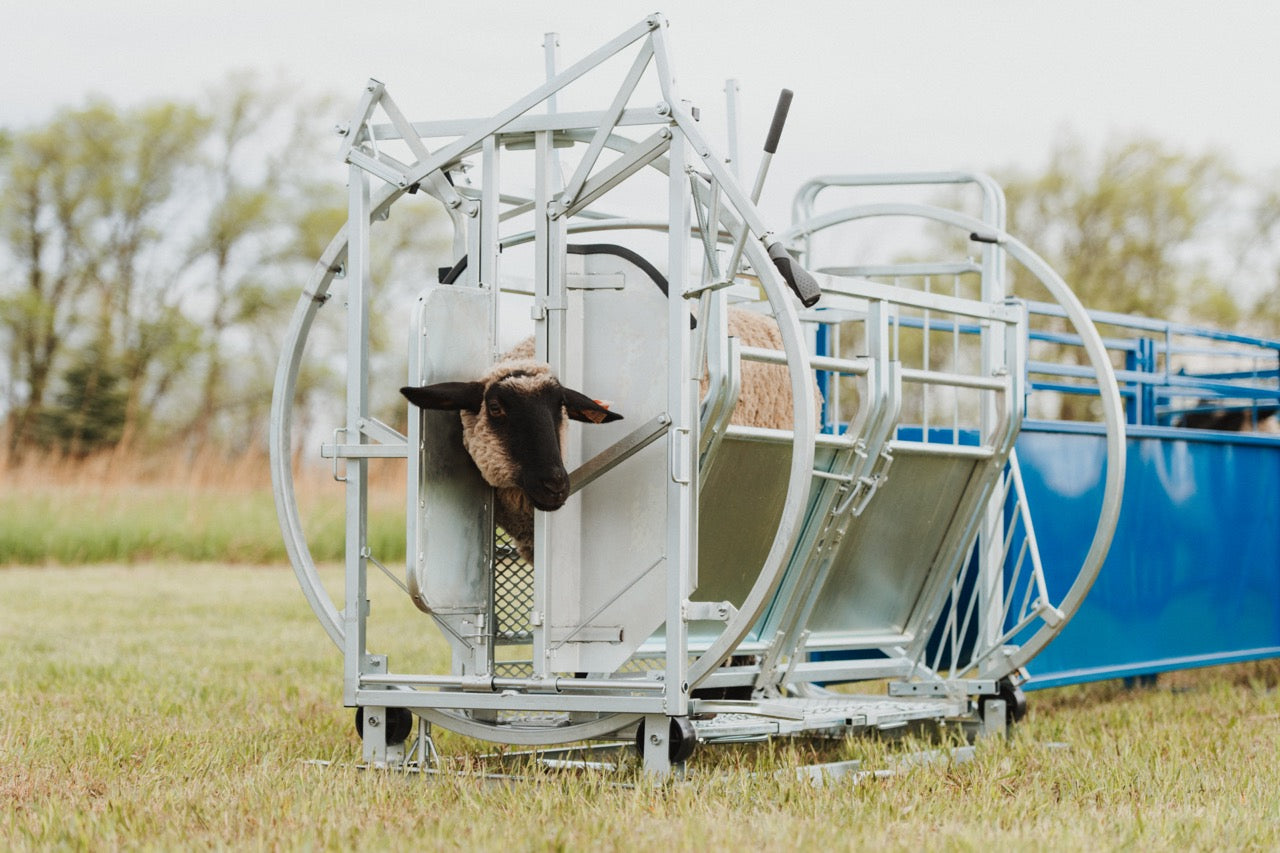

The Sydell 0938 Spin Doctor is the centerpiece of System E and is designed to provide controlled restraint while giving handlers better access to sheep and goats for routine management and care.

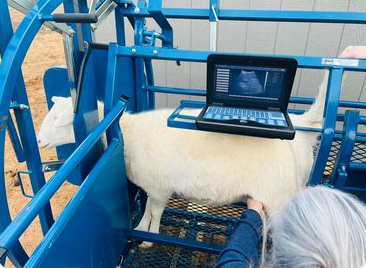

The Spin Doctor allows the animal to be positioned for improved access during procedures such as hoof trimming, health checks, treatment, vaccinations, identification, and general livestock care.

Its design provides access to different areas of the animal while helping reduce the amount of manual restraint required from the handler.

Key Spin Doctor features include:

• Up to 120 degrees of rotation
• Designed for one-hand operation
• Side doors for convenient animal access
• False floor for improved hoof access
• Deluxe Headgate
• Stop gate
• Adjustable top and bottom
• Designed to accommodate a range of sheep and goat sizes
• Compatible with horned sheep and goats

Key Features & Benefits

• Complete sheep and goat working system with Spin Doctor
• Approximate footprint of 20 ft 1 in x 9 ft 4 in
• 8 ft solid working alley
• 42 in high solid panels help limit outside distractions
• Curved crowding tub helps guide livestock toward the working area
• Spin Doctor provides controlled livestock restraint and positioning
• Designed for hoof trimming, hoof inspection, treatment, and general livestock care
• 8 ft Slide/Swing Gate provides flexible livestock access and control
• 12 in drop-top panel provides easier handler access
• Guillotine Gate helps control livestock movement into the working area
• Anti-backup equipment helps discourage animals from backing through the alley
• Heavy-duty American steel construction
• Modular drop-pin design
• Spin Doctor can be expanded with optional Spin Doctor Add-On Accessories

Detailed System E Components

• 1-0938 Spin Doctor
  Provides controlled restraint and positioning for hoof trimming, inspection, treatment, health checks, and routine sheep and goat care.
• 1-0943-8 8 ft Slide/Swing Gate
  Slides or swings open for flexible livestock access and control. 42 in H.
• 1-0944D Tub Support Assembly
  Supports and stabilizes the crowding tub section.
• 1-0950 8 ft Solid Corral Panel
  Solid panel used to guide livestock and limit outside distractions. 42 in H.
• 1-0950D Special-Length Solid Panel
  Special-length solid panel designed to complete the System E crowding and working layout. 42 in H.
• 2-0950-T 8 ft Curved Solid Tub Panel
  Forms the curved crowding tub and helps guide livestock toward the working alley. 42 in H.
• 1-0955 8 ft Solid Panel with 12 in Drop Top
  Solid working-alley panel with a lowered top section for easier handler access. 42 in overall height.
• 1-0965 Flat Anti-Backup Plate
  Helps discourage sheep and goats from backing up in the working alley.
• 1-0985 Guillotine Gate
  Opens and closes vertically to control livestock movement into the working area.
• 1-0986 Telescoping Rope Support
  Supports the rope-operated Guillotine Gate system.
• 12-0945 Heavy-Duty Drop Pin
  Zinc-plated 1/2 in x 42 in pin used to securely connect panels, gates, and system components.

Optional Add-Ons & Accessories for Spin Doctor

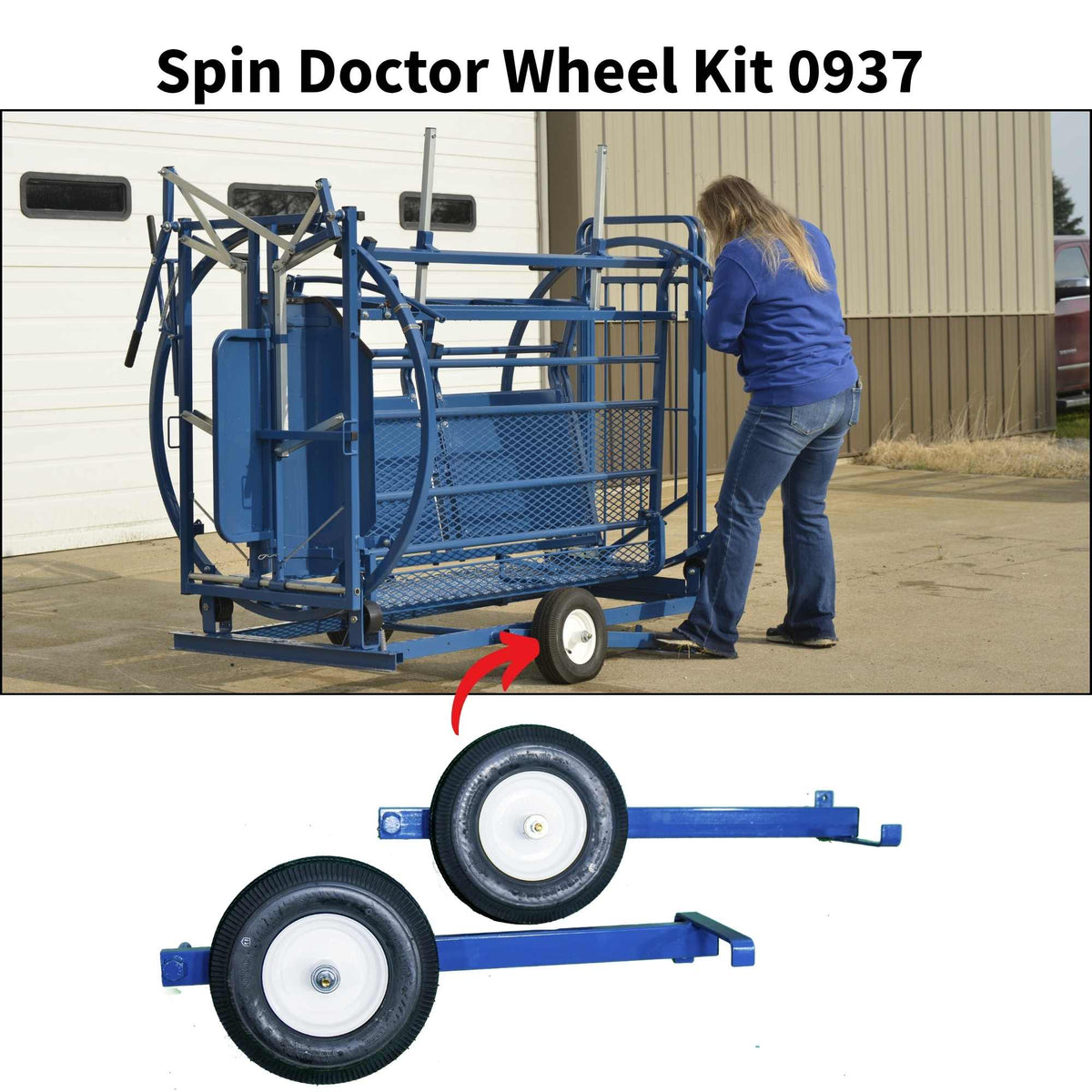

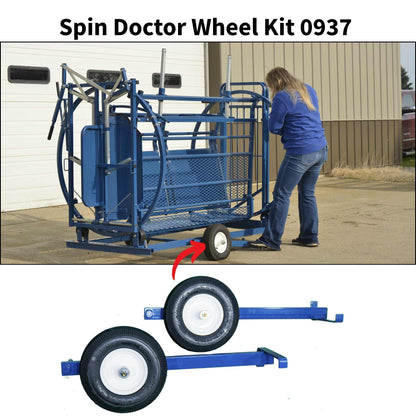

• 0937 Spin Doctor Wheel Kit
  Adds wheels to the Spin Doctor to make moving and repositioning the unit around the farm easier.

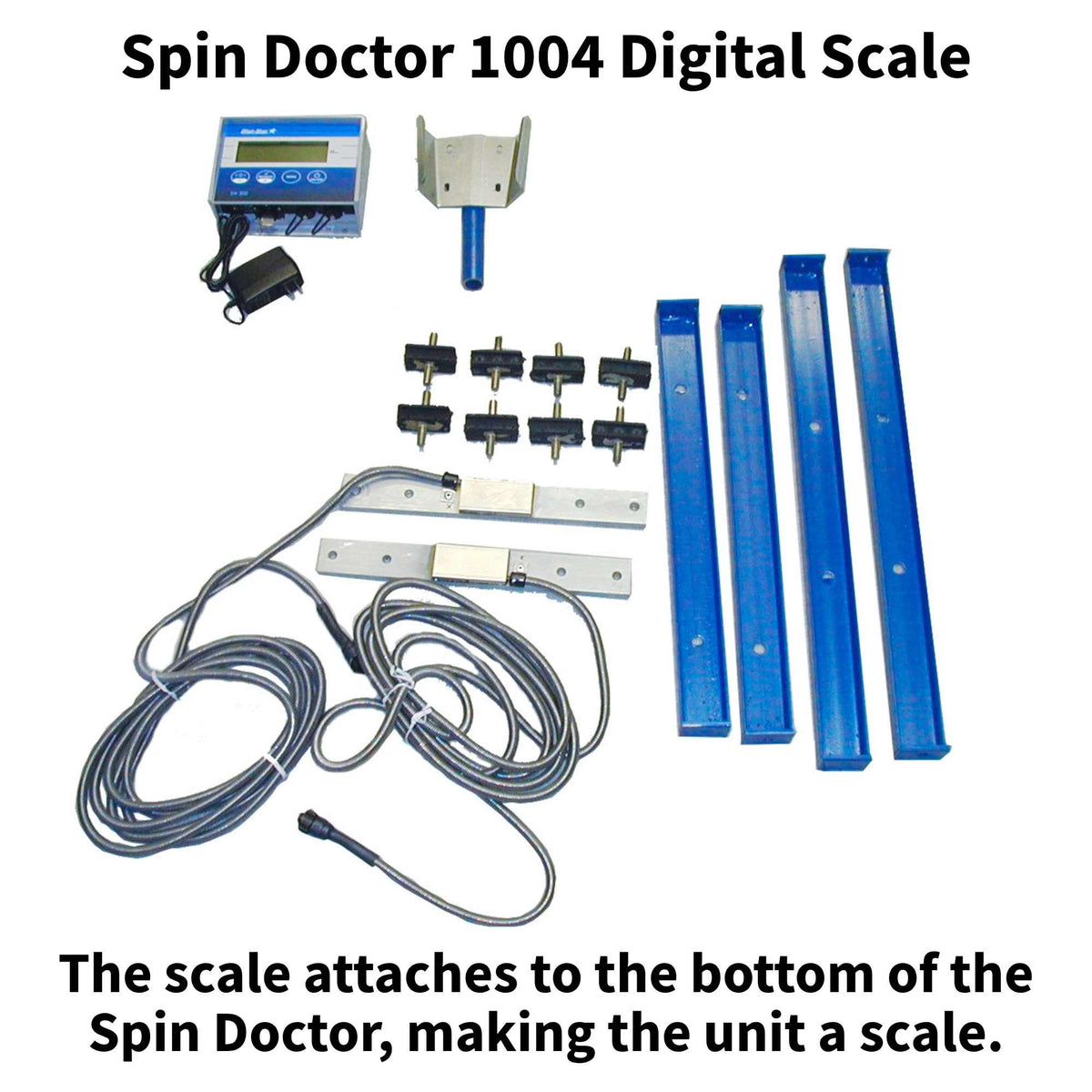

• 1004 Digital Scale
  Designed for use with the Spin Doctor, allowing livestock to be weighed as part of the handling process.
• 0927 Spin Doctor Headgate/Access Gate Unit
  Adds a compatible headgate and access-gate setup for additional livestock entry, exit, and handling options with the Spin Doctor.

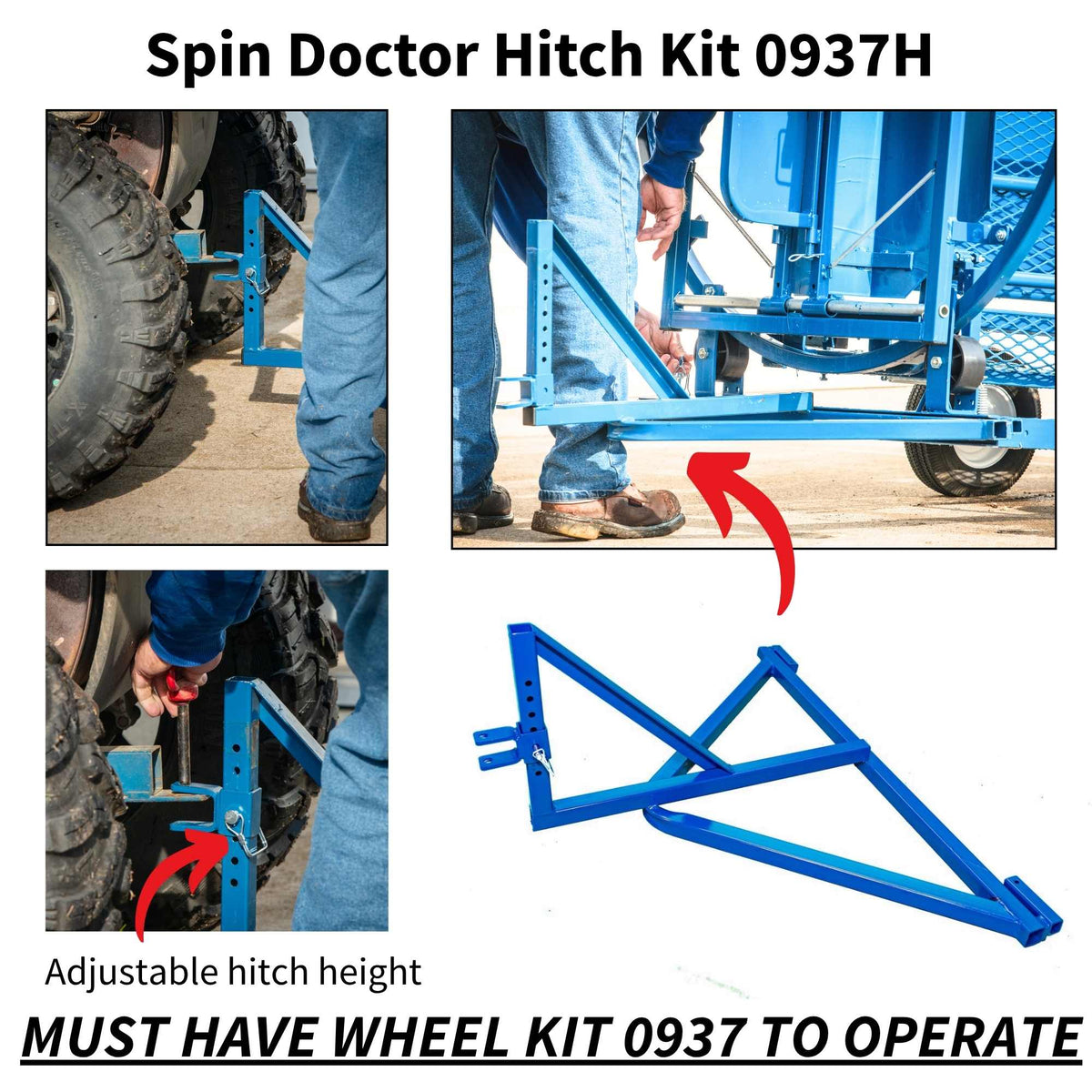

• 0937H Hitch for 0938 Deluxe Spin Doctor
  Adds a hitch to help move or transport the Spin Doctor around the farm with a compatible vehicle.

Common Uses

• Hoof trimming
• Hoof inspection and foot care
• Sheep and goat restraint
• Vaccinations and health checks
• Identification and tagging
• Treatment and examination
• Breeding management
• Controlled livestock movement
• Routine flock and herd management

Ideal For

• Sheep working systems
• Goat working systems
• Producers wanting an integrated Spin Doctor handling system
• Producers who regularly perform hoof trimming and livestock care
• Family farms and ranches
• Breeding and registered stock operations
• Commercial sheep and goat producers
• Universities and research facilities
• Veterinary and livestock health facilities
• Operations needing a compact crowding, restraint, and treatment system

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
