Complete Corral Working System B for Sheep & Goats | Sydell #0992

Complete Corral Working System B for Sheep & Goats | Sydell #0992

Regular price $4,295.00
Regular price Sale price $4,295.00
Sale Sold out
Shipping calculated at checkout.
Quantity

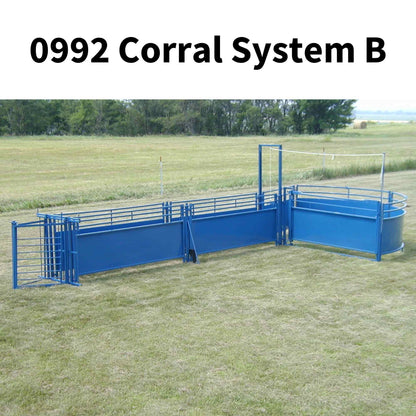

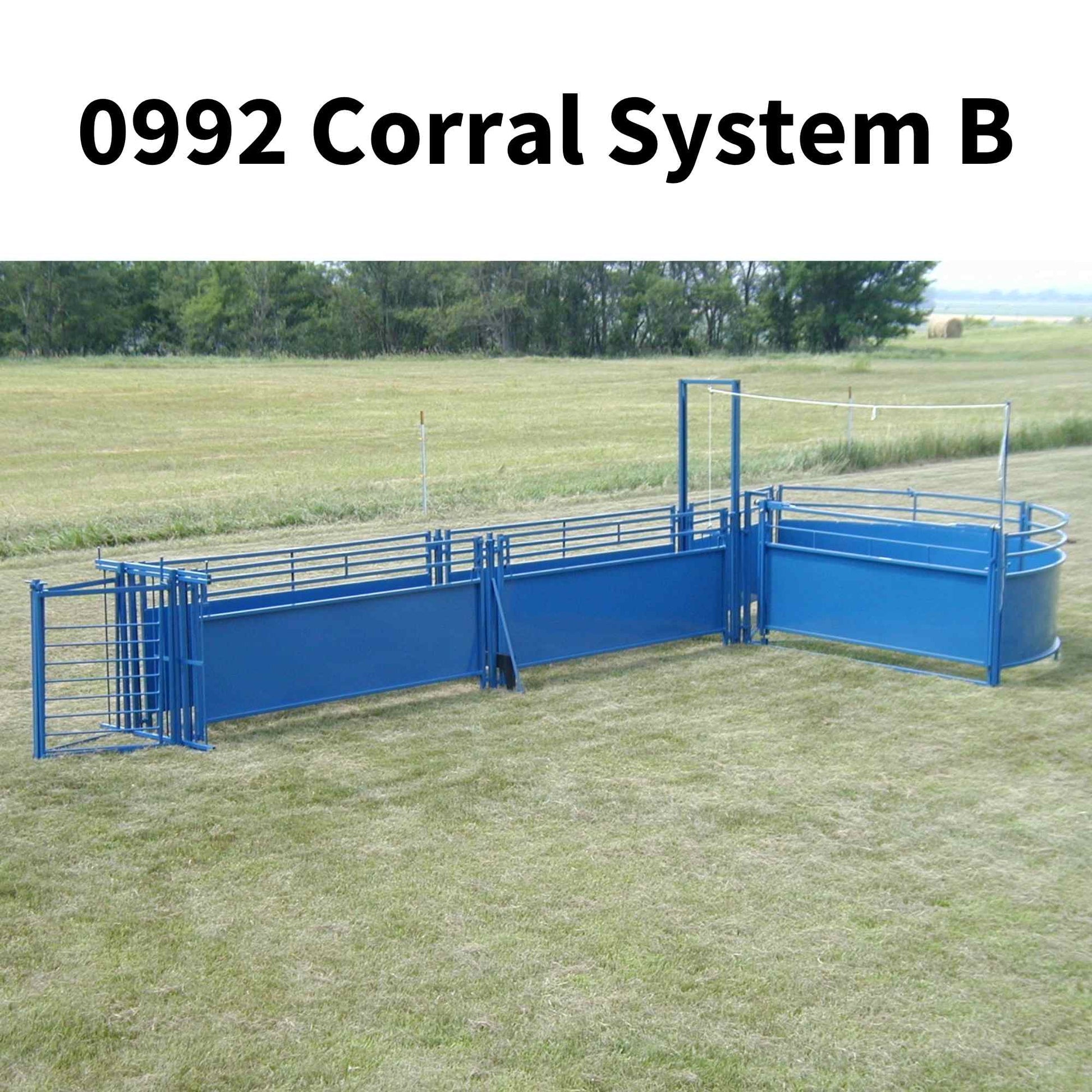

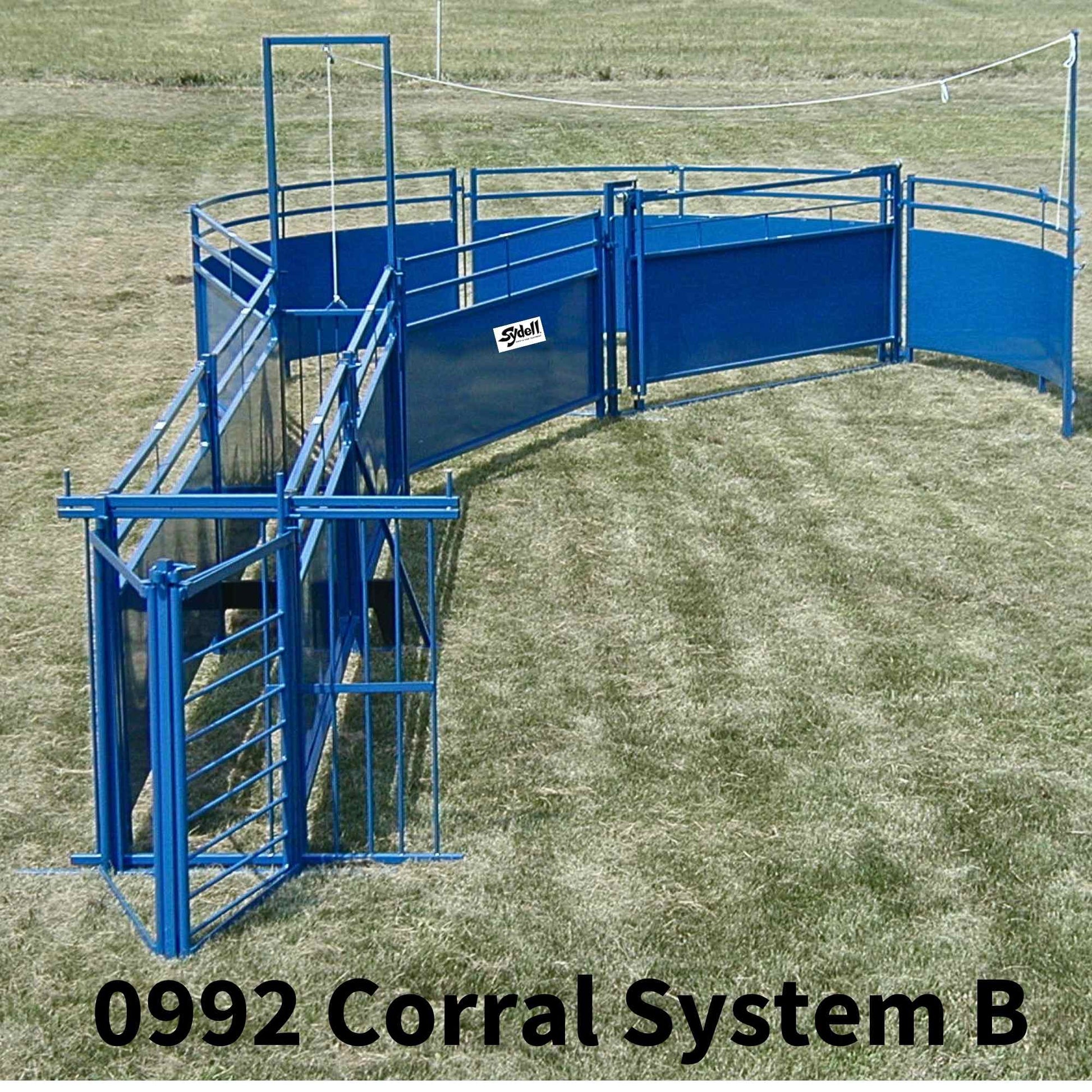

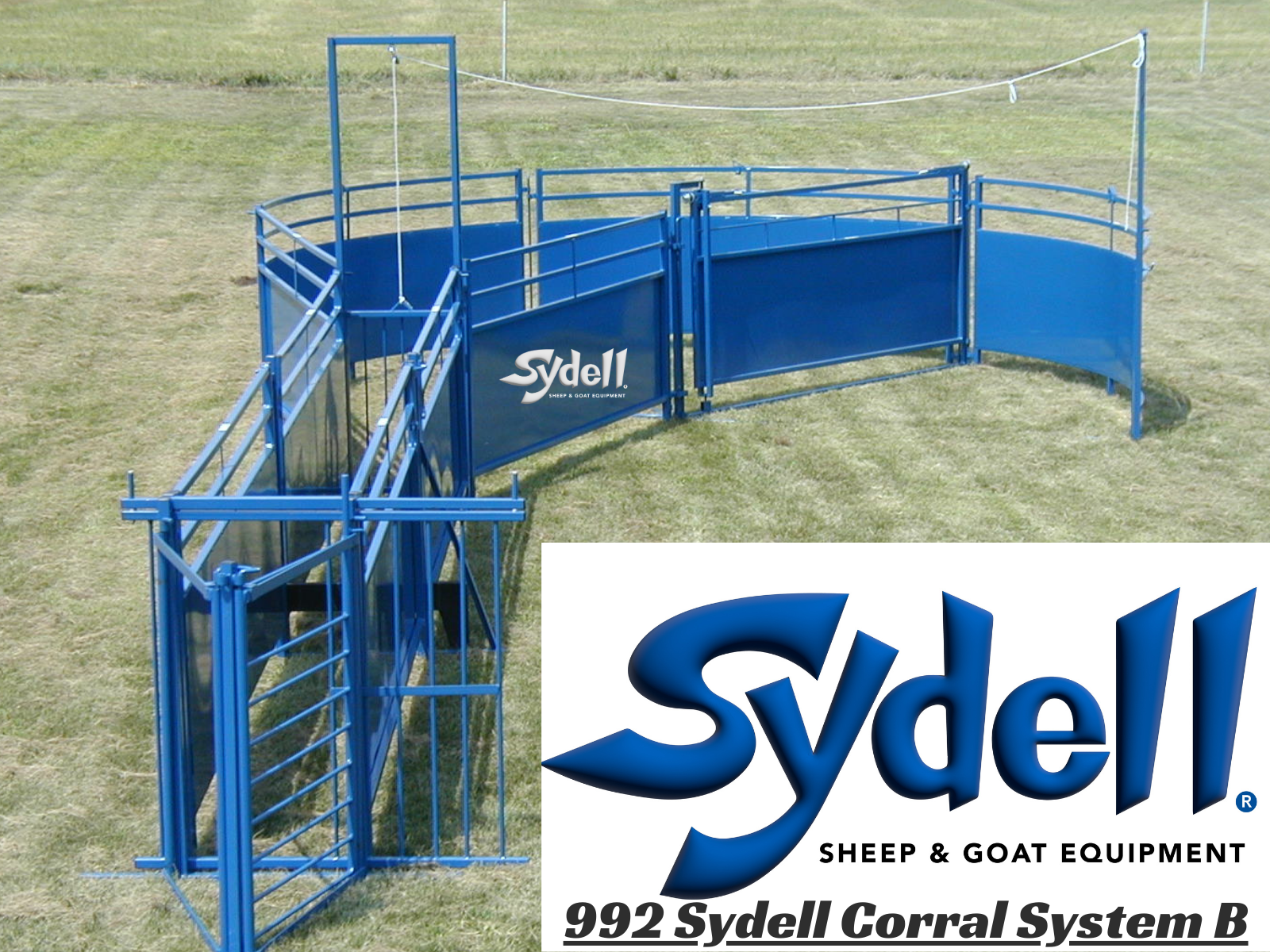

Sydell System B Sheep & Goat Corral and Working System – Item 0992

The Sydell System B Corral and Working System (Item 0992) is a compact sheep and goat handling system designed for producers who need an organized setup for crowding, sorting, moving, separating, and working livestock without the larger footprint of System A. Built from heavy-duty American steel, System B combines a curved crowding tub, solid working alley, sorting equipment, gates, anti-backup equipment, and support components into one complete handling setup.

With an approximate footprint of 34 ft 6 in L x 14 ft W and an approximate weight of 1,030 lb, System B provides an efficient working system for sheep and goat operations where available space may be limited.

System Specifications

  • Sydell Item Number: 0992
  • Approximate Overall Size: 34 ft 6 in L x 14 ft W
  • Approximate Weight: 1,030 lb
  • Primary Panel Height: 42 in
  • Construction: Heavy-duty American steel
  • Designed For: Sheep and goats
  • System Type: Crowding, sorting, and working system
  • Assembly: Modular panels and gates connected with heavy-duty drop pins

Working Alley

  • 16 ft Working Alley: The System 0992 working alley extends approximately 16 ft from the 0985 Guillotine Gate to the 0920B 2-Way Sort, providing a controlled path for moving sheep and goats through the system before sorting or directing them into separate groups.

.

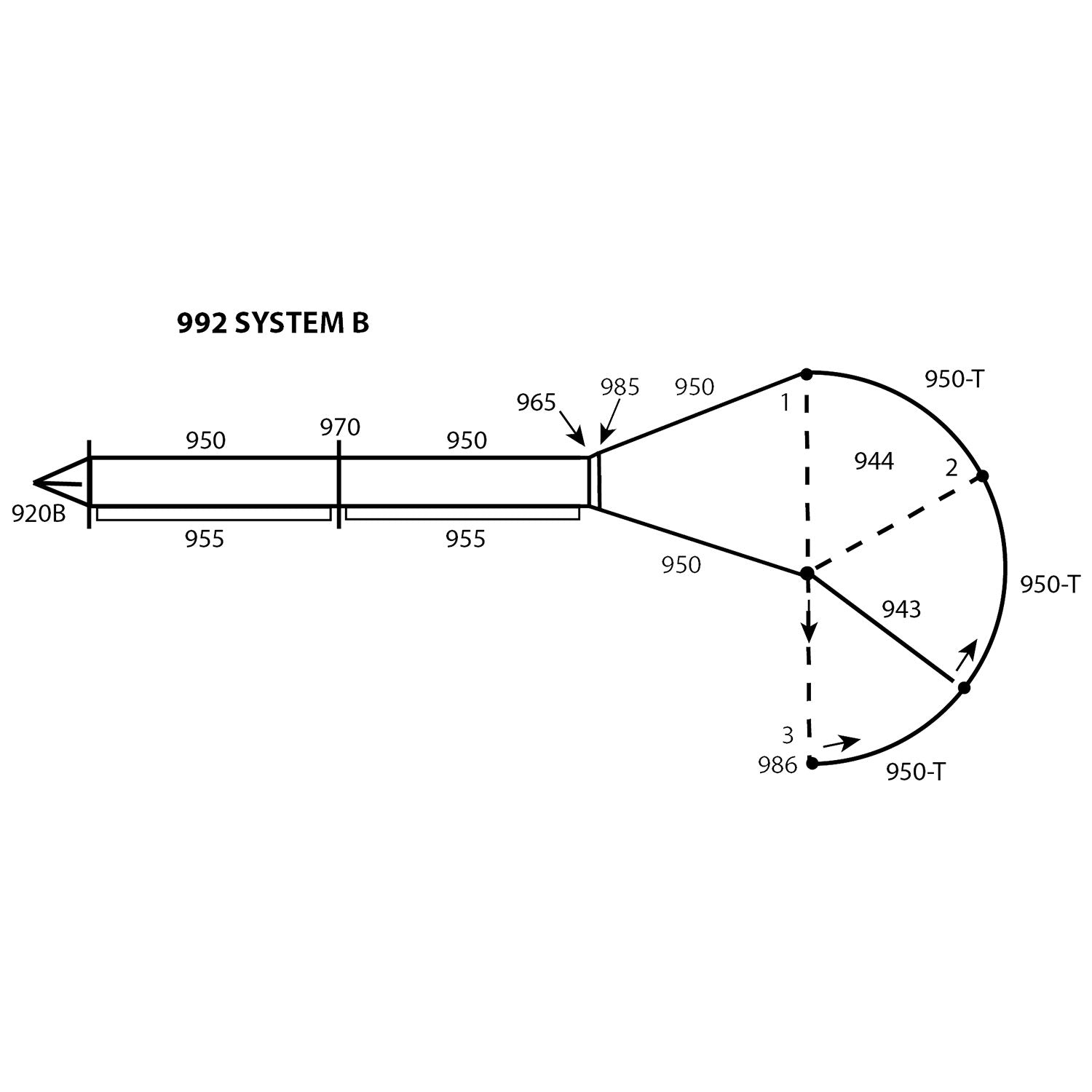

What’s Included in System B

  • (1) 0920B – 2-Way Sort
  • (1) 0943-8 – 8 ft Slide/Swing Gate
  • (1) 0944 – Tub Support Assembly
  • (4) 0950 – 8 ft Solid Corral Panels
  • (3) 0950-T – 8 ft Curved Solid Tub Panels
  • (2) 0955 – Solid Panels with 12 in Drop Top
  • (1) 0965A – Anti-Backup Component
  • (1) 0970 – Corral Support Stand
  • (1) 0985 – Guillotine Gate
  • (1) 0986 – Telescoping Rope Support
  • (26) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

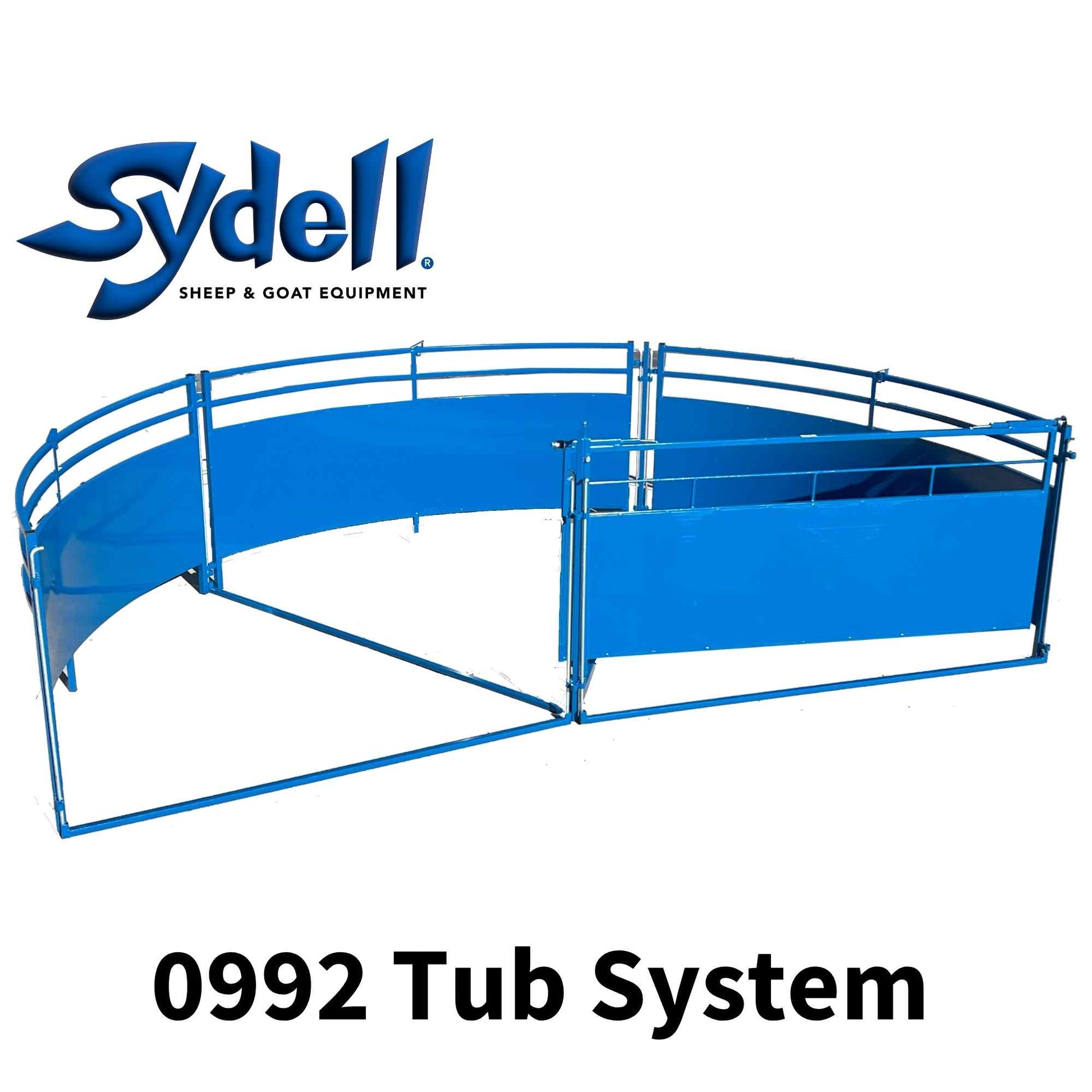

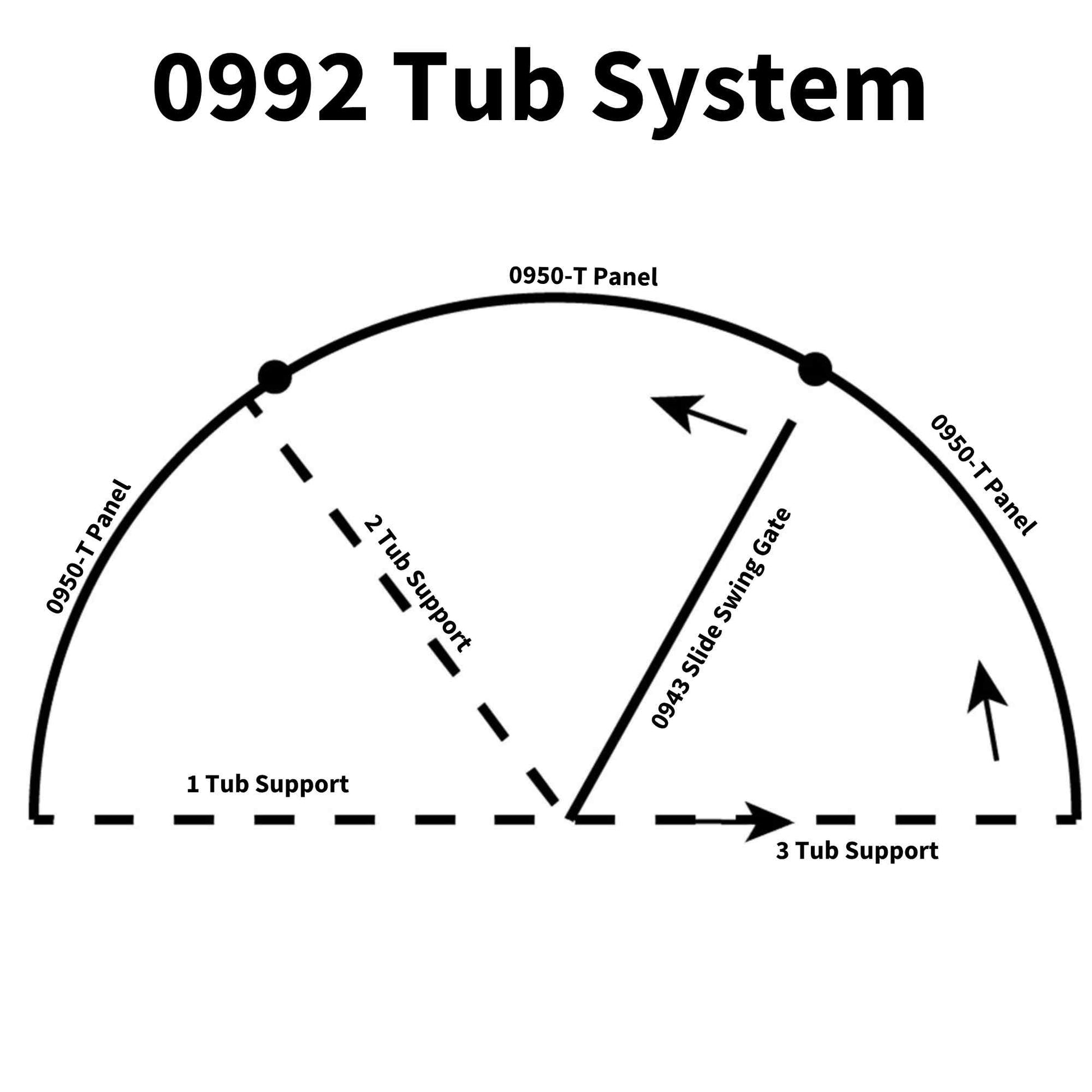

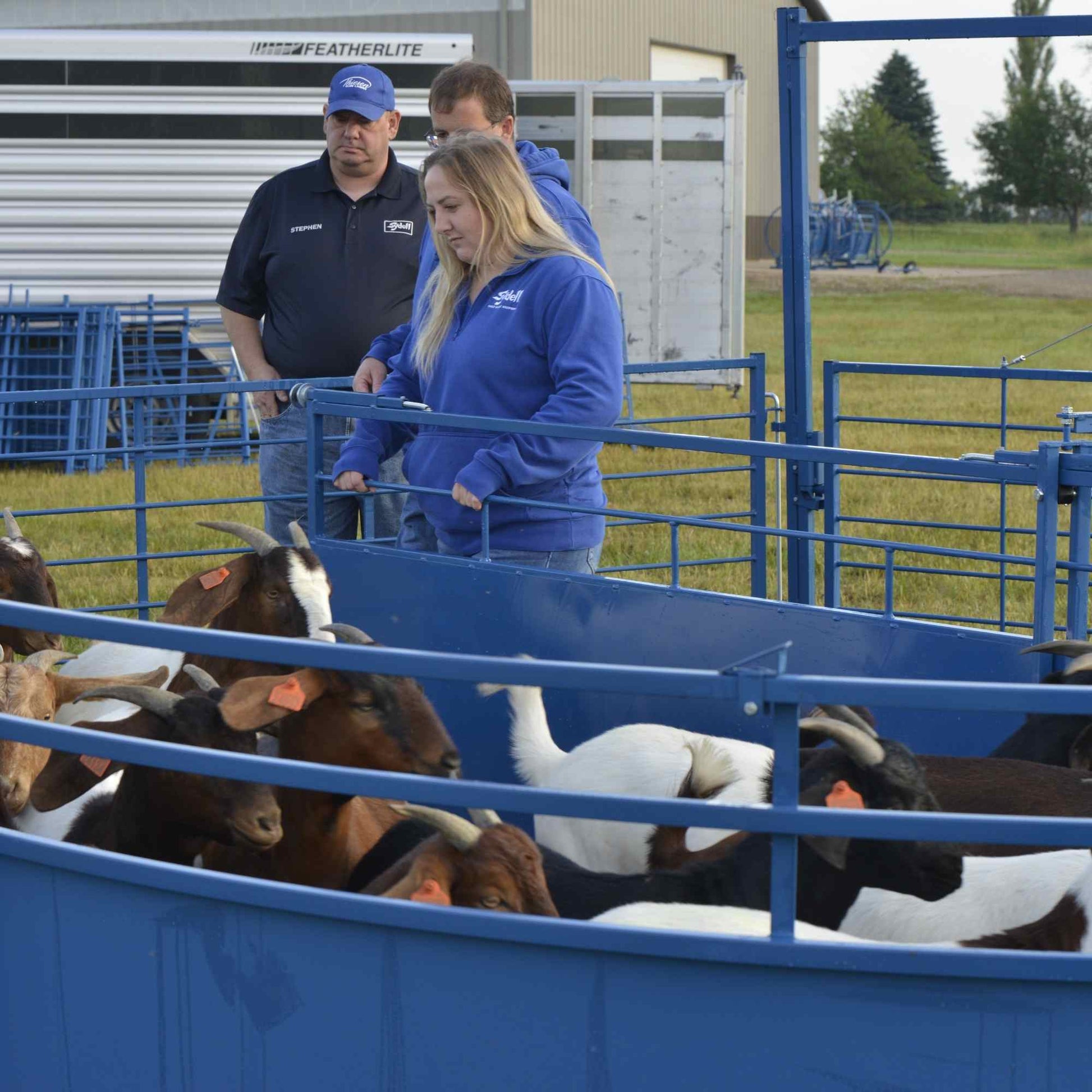

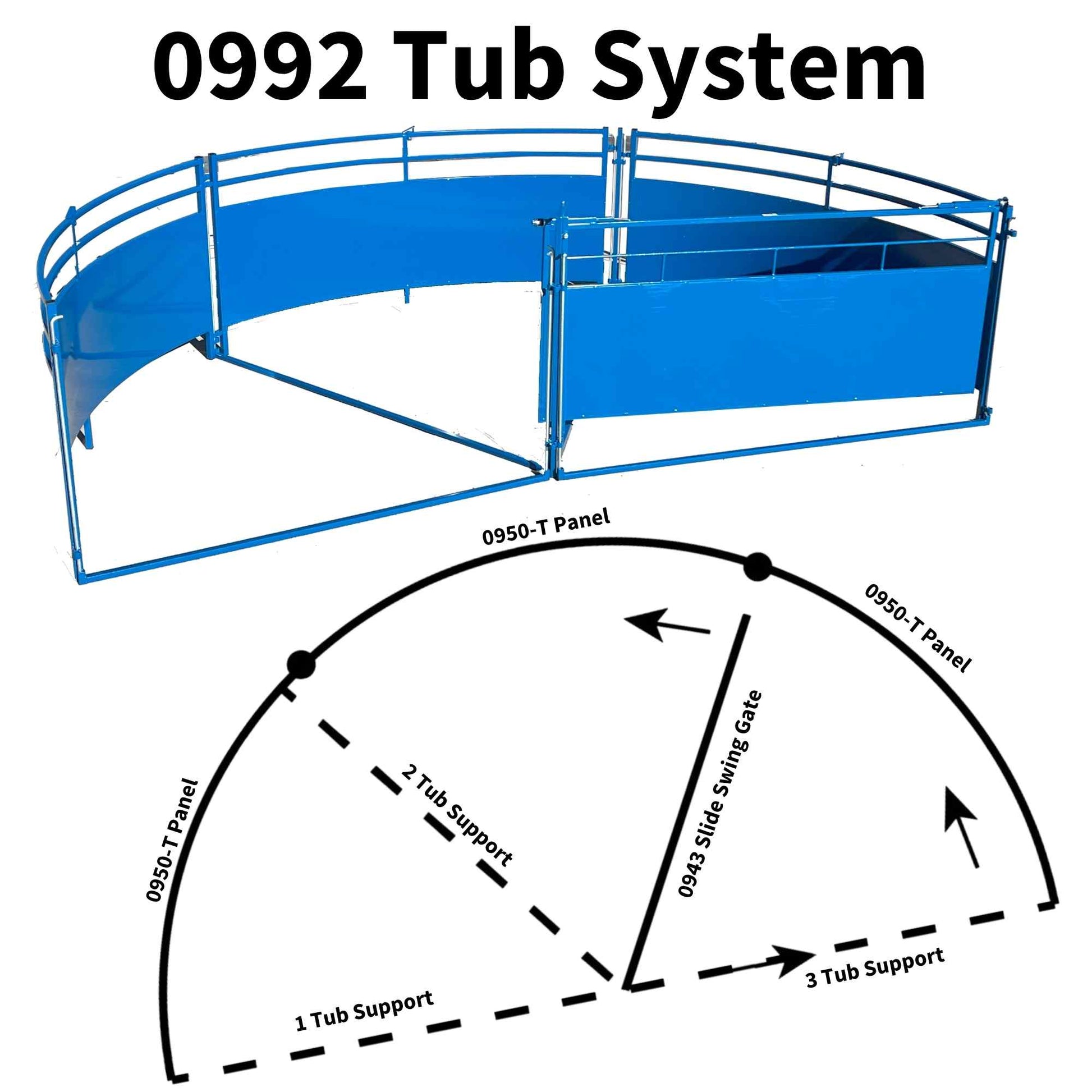

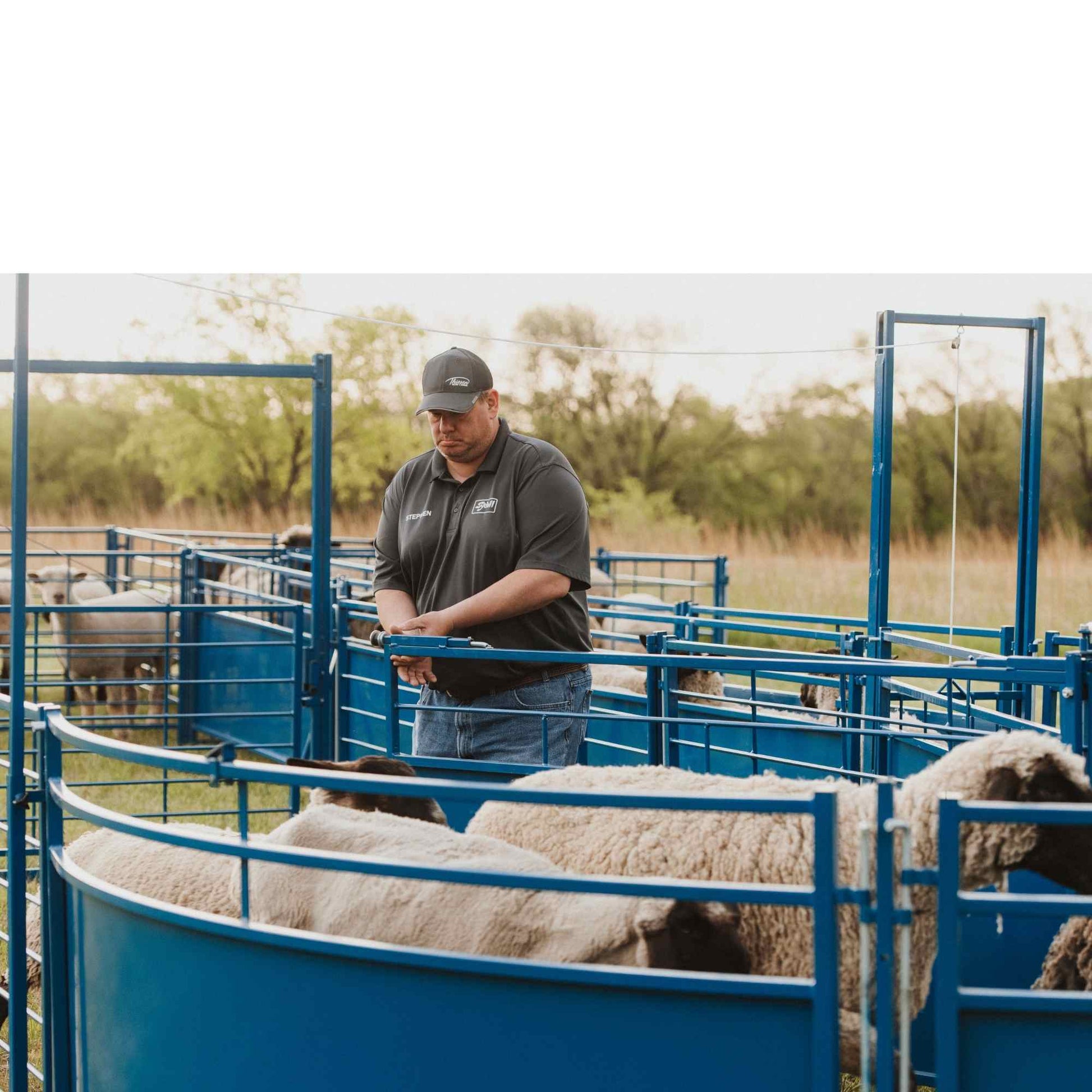

The curved crowding tub is built with 8 ft solid tub panels, 42 in high, helping guide sheep and goats into the solid working alley while limiting outside distractions. The working alley directs livestock toward the 2-Way Sort, where animals can be separated into different groups as needed.

The 8 ft Slide/Swing Gate provides flexible livestock access, while the Guillotine Gate and anti-backup equipment help control animal movement through the working area.

System B is designed for everyday sheep and goat management, including sorting, vaccinations, health checks, identification, breeding management, hoof care, treatment, weighing preparation, flock or herd separation, and routine livestock handling.

Key Features & Benefits

  • Compact sheep and goat working system
  • Approximate footprint of 34 ft 6 in x 14 ft
  • Curved solid crowding tub helps direct livestock into the working alley
  • 8 ft solid tub panels are 42 in high
  • Solid working-alley panels help limit outside distractions

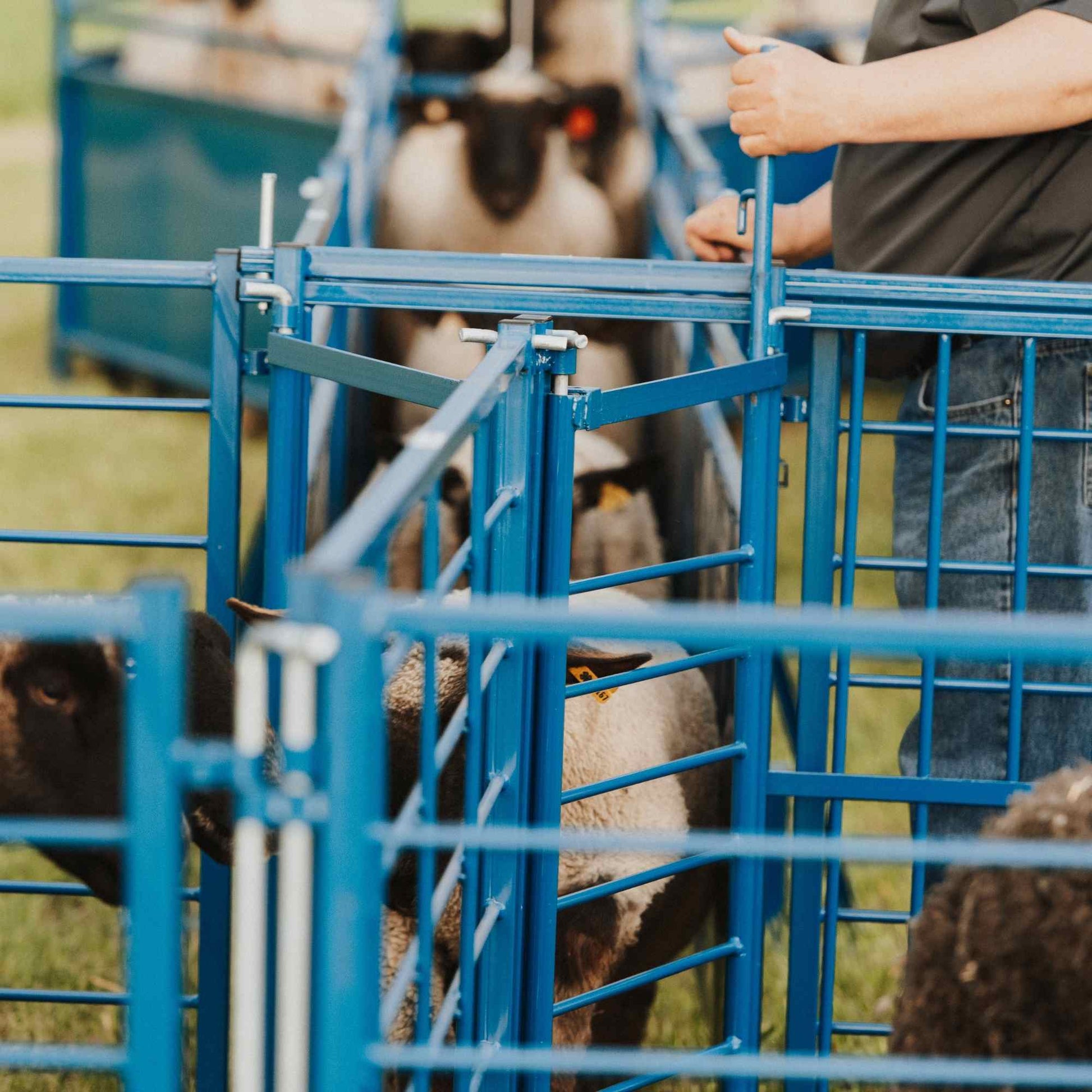

  • 2-Way Sort allows animals to be separated into different groups
  • 8 ft Slide/Swing Gate provides flexible livestock access and control
  • Guillotine Gate helps regulate animal movement through the alley
  • Anti-backup equipment helps discourage animals from backing through the system
  • Heavy-duty American steel construction
  • Modular drop-pin design allows components to be assembled or reconfigured
  • Designed for routine livestock management on sheep and goat operations

Detailed System B Components

  • 1-0920B 2-Way Sort
    Directs sheep and goats into two separate sorting directions.
  • 1-0943-8 8 ft Slide/Swing Gate
    Slides or swings open for flexible livestock access and control. 42 in H.

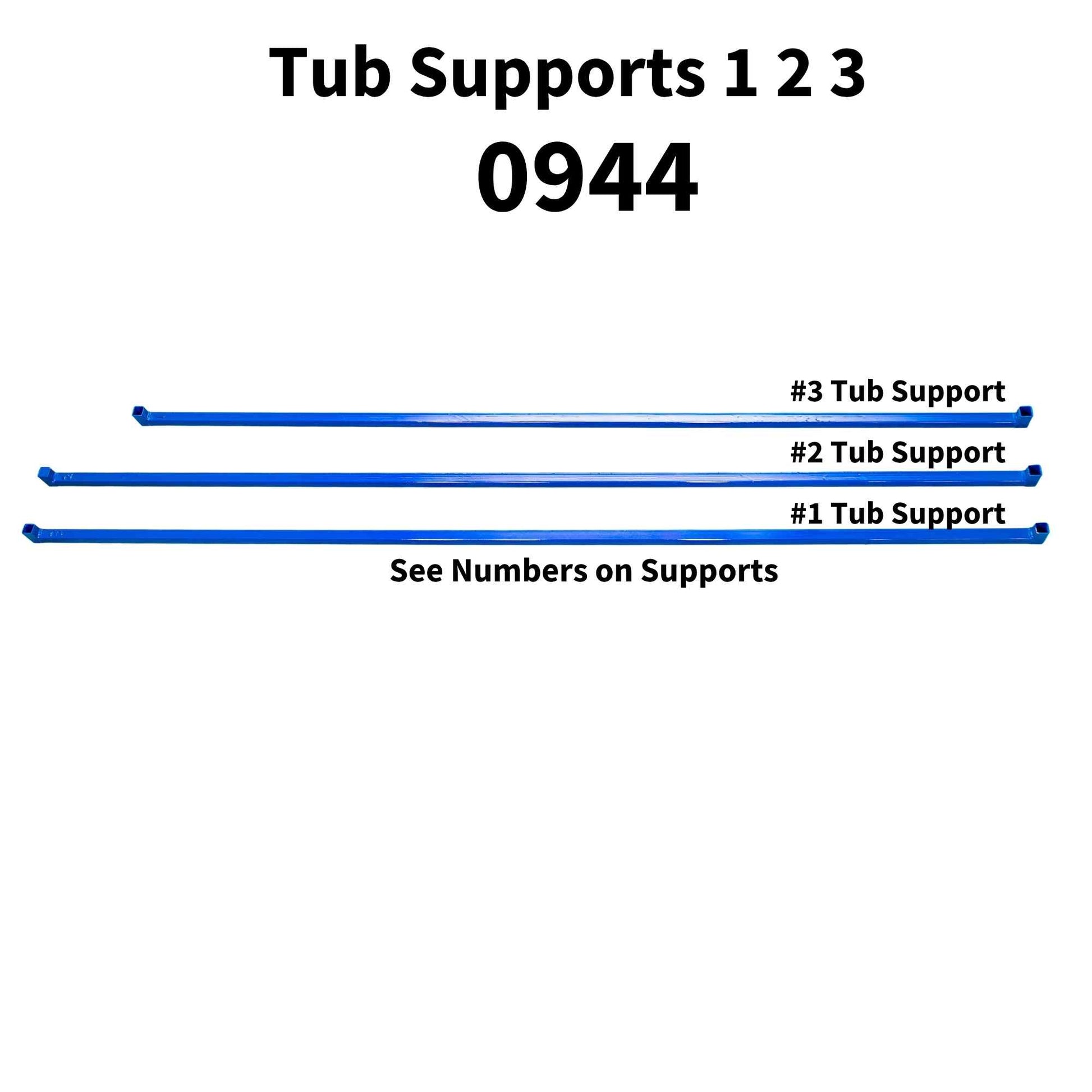

  • 1-0944 Tub Support Assembly
    Supports and stabilizes the crowding tub section.
  • 4-0950 8 ft Solid Corral Panel
    Solid panel used to guide livestock and limit outside distractions. 42 in H.
  • 3-0950-T 8 ft Curved Solid Tub Panel
    Forms the curved crowding tub and helps guide animals toward the working alley. 42 in H.
  • 2-0955 Solid Panel with 12 in Drop Top
    Solid working-alley panel with a lowered top section for easier handler access. 42 in overall height.
  • 1-0965A Anti-Backup Component
    Helps discourage sheep and goats from backing up in the working alley.
  • 1-0970 Corral Support Stand
    Provides added stability and support to the working system.

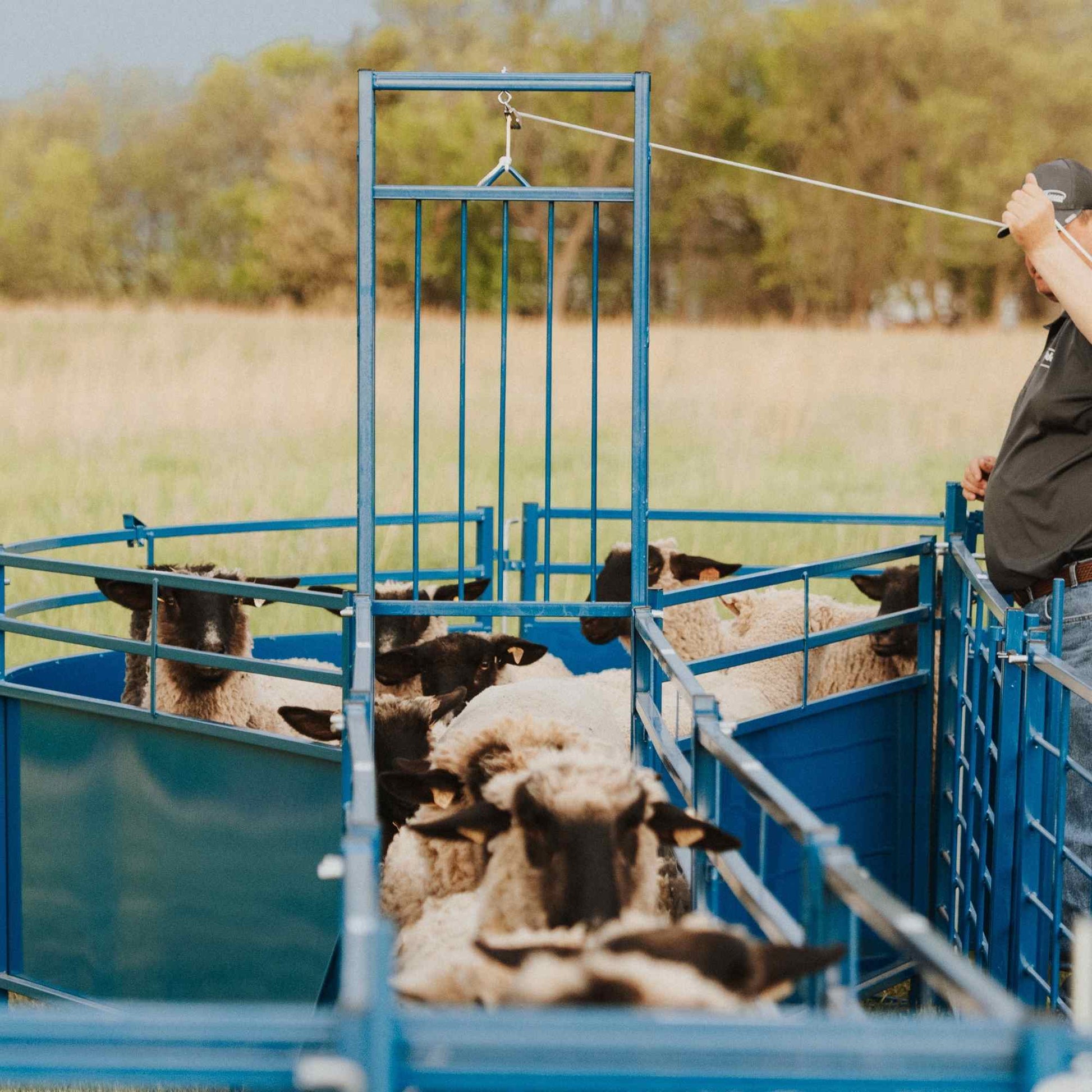

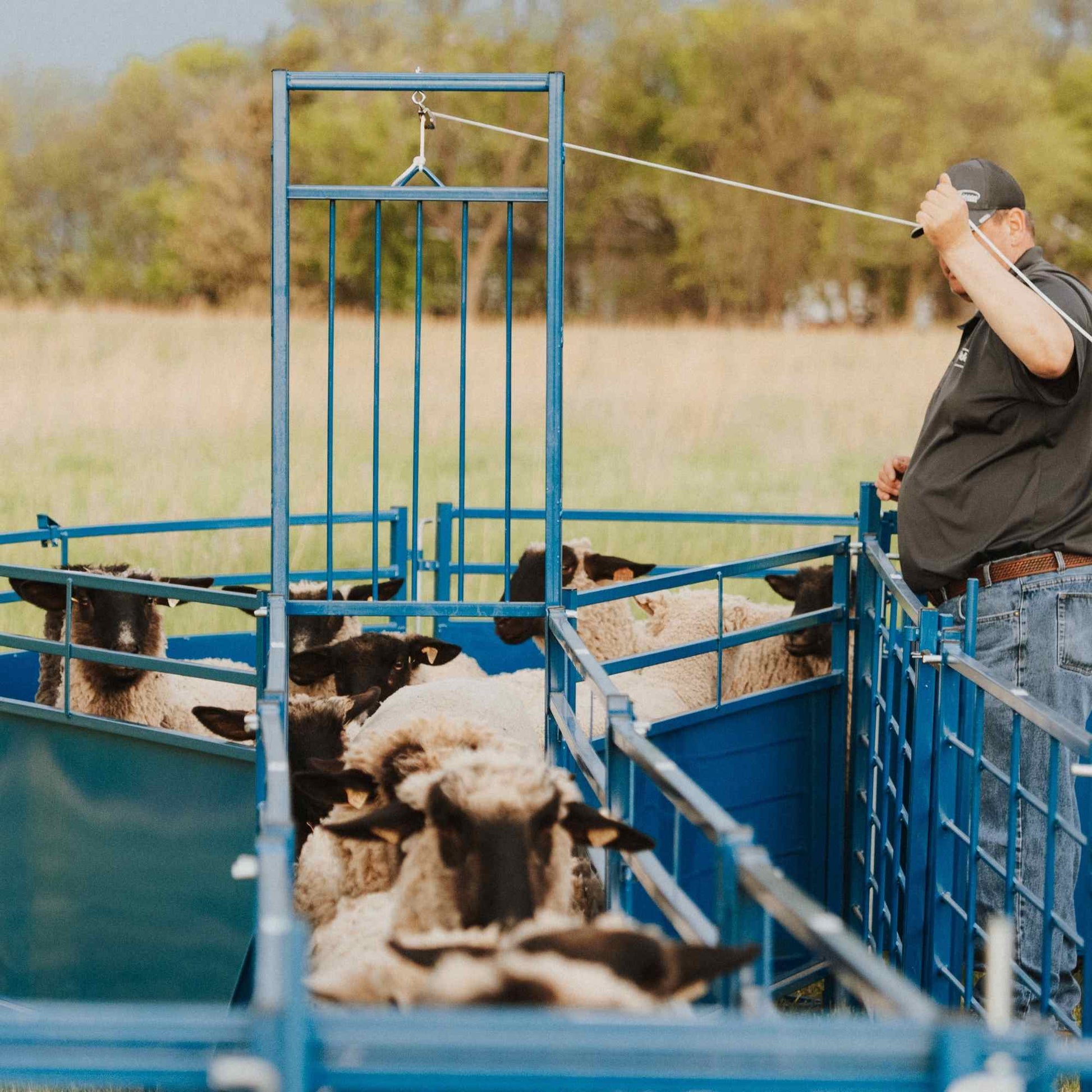

  • 1-0985 Guillotine Gate
    Opens and closes vertically to control livestock movement through the working alley.
  • 1-0986 Telescoping Rope Support
    Supports the rope-operated gate system.
  • 26-0945 Heavy-Duty Drop Pin
    Zinc-plated 1/2 in x 42 in pin used to connect panels and gates.

Common Uses

  • Sheep and goat sorting
  • Crowding and controlled livestock movement
  • Working and handling
  • Vaccinations and health checks
  • Identification and tagging
  • Breeding management
  • Hoof care and treatment
  • Separating livestock into management groups
  • Moving animals through weighing or treatment areas
  • Routine flock and herd management

Ideal For

  • Sheep working systems
  • Goat working systems
  • Farms with limited space for a larger corral system
  • Family farms and ranches
  • Breeding and registered stock operations
  • Commercial sheep and goat producers
  • Universities and research facilities
  • Veterinary and livestock health facilities
  • Operations needing a compact crowding, sorting, and working system

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
