Complete Corral Working System C for Sheep & Goats | Sydell #0993

Sydell System C Sheep & Goat Corral and Working System – Item 0993

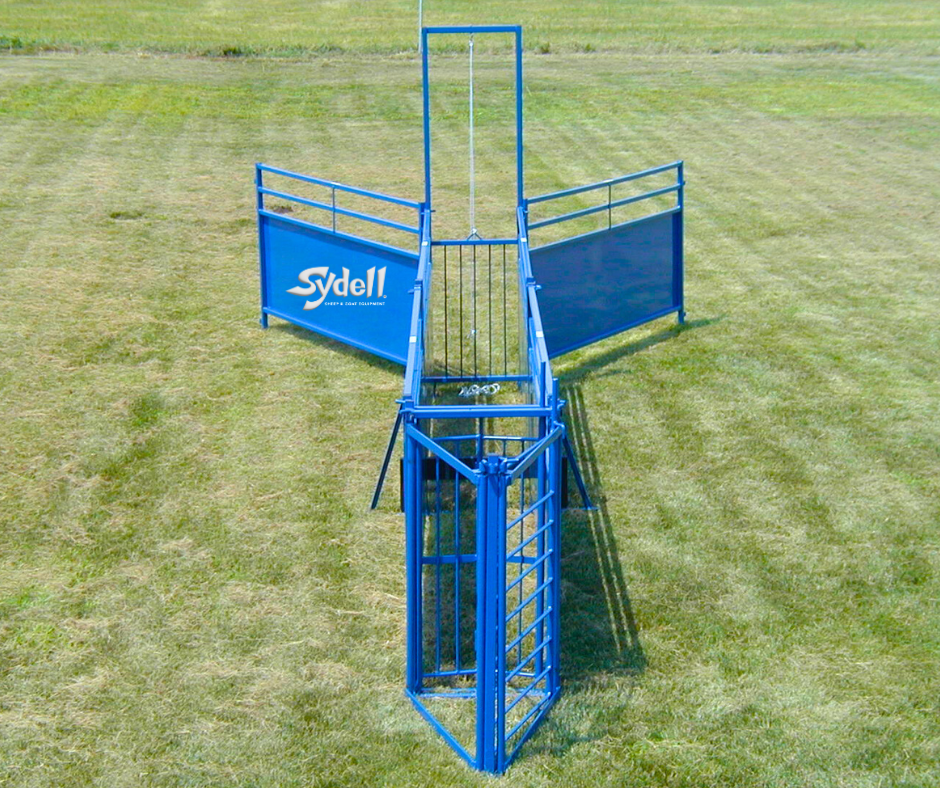

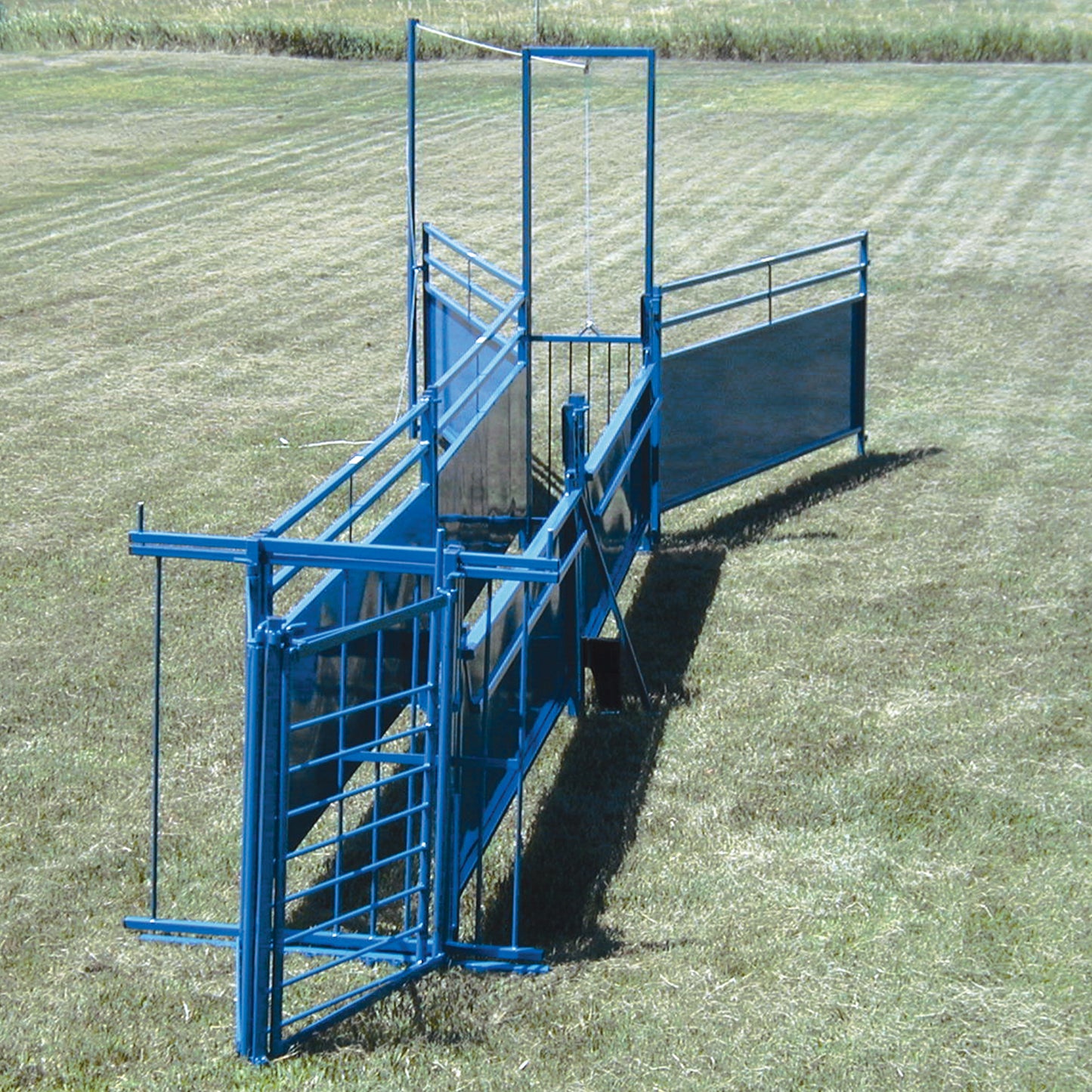

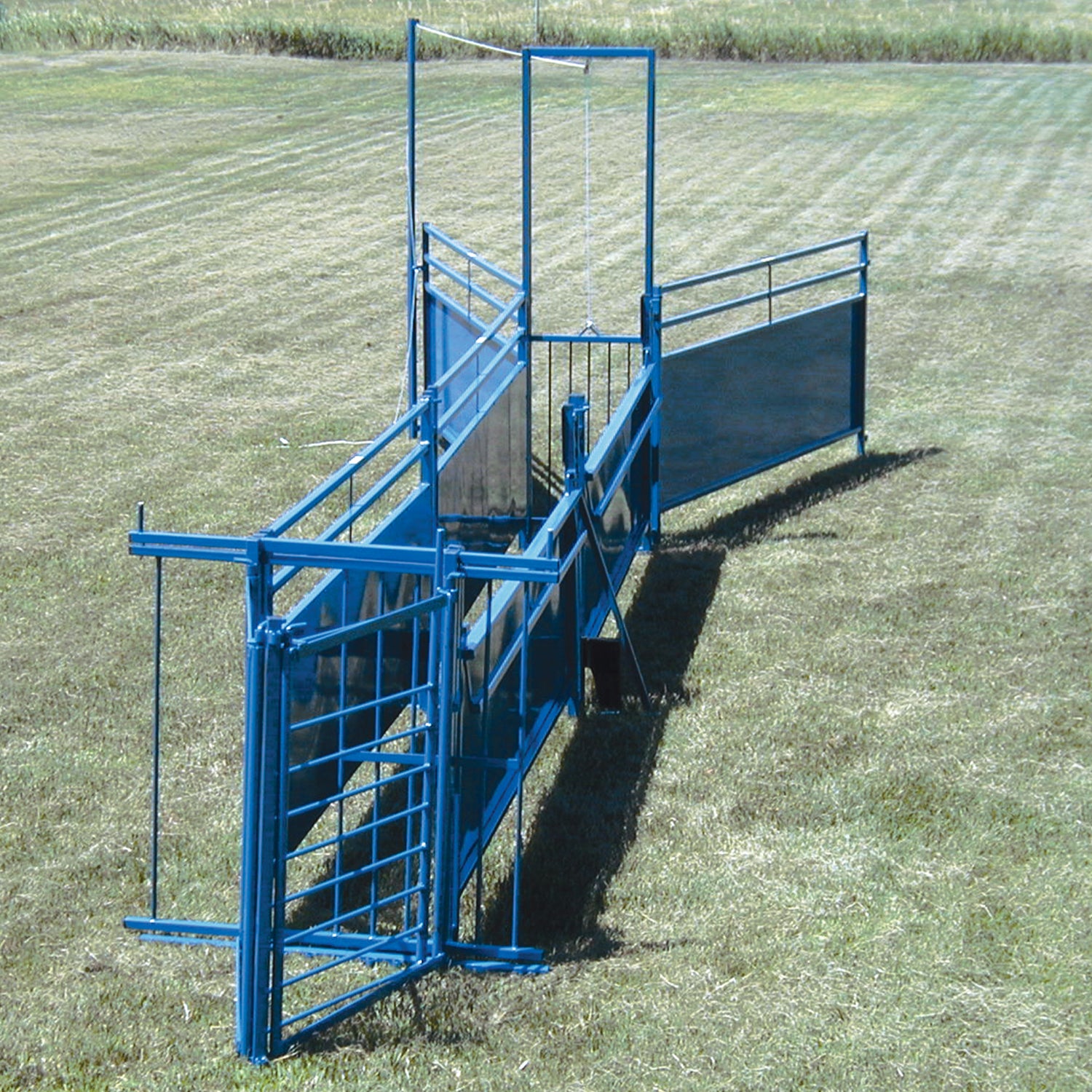

The Sydell System C Corral and Working System (Item 0993) is a compact sheep and goat handling system designed for producers who need an efficient setup for moving, sorting, separating, and working livestock without a large corral footprint. Built from heavy-duty American steel, System C combines a solid adjustable working alley, 2-way sorting gate, guillotine gate, anti-backup equipment, and support components into one practical livestock handling system.

With an approximate footprint of 27 ft 5 in L x 8 ft W and an approximate weight of 700 lb, System C is a good option for operations that need dependable sheep and goat handling equipment in a more compact area.

System Specifications

• Sydell Item Number: 0993
• Approximate Overall Size: 27 ft 5 in L x 8 ft W
• Approximate Weight: 700 lb
• Primary Panel Height: 42 in
• Construction: Heavy-duty American steel
• Designed For: Sheep and goats
• System Type: Working alley, sorting, and livestock handling system
• Assembly: Modular panels and components connected with heavy-duty drop pins
• Working Alley Width: Adjustable to accommodate different sizes of sheep and goats

Working Alley

• 16 ft Working Alley: The System 0993 working alley extends approximately 16 ft from the 0985 Guillotine Gate to the 0920B 2-Way Sort, providing a controlled path for moving sheep and goats through the system before sorting or directing them into separate groups.

The solid 42 in high alley panels help limit outside distractions and encourage livestock to continue moving forward. The working alley can also be narrowed at the bottom to create a V-shaped configuration, allowing producers to better fit the alley to different sizes of sheep and goats and help reduce the opportunity for animals to turn around.

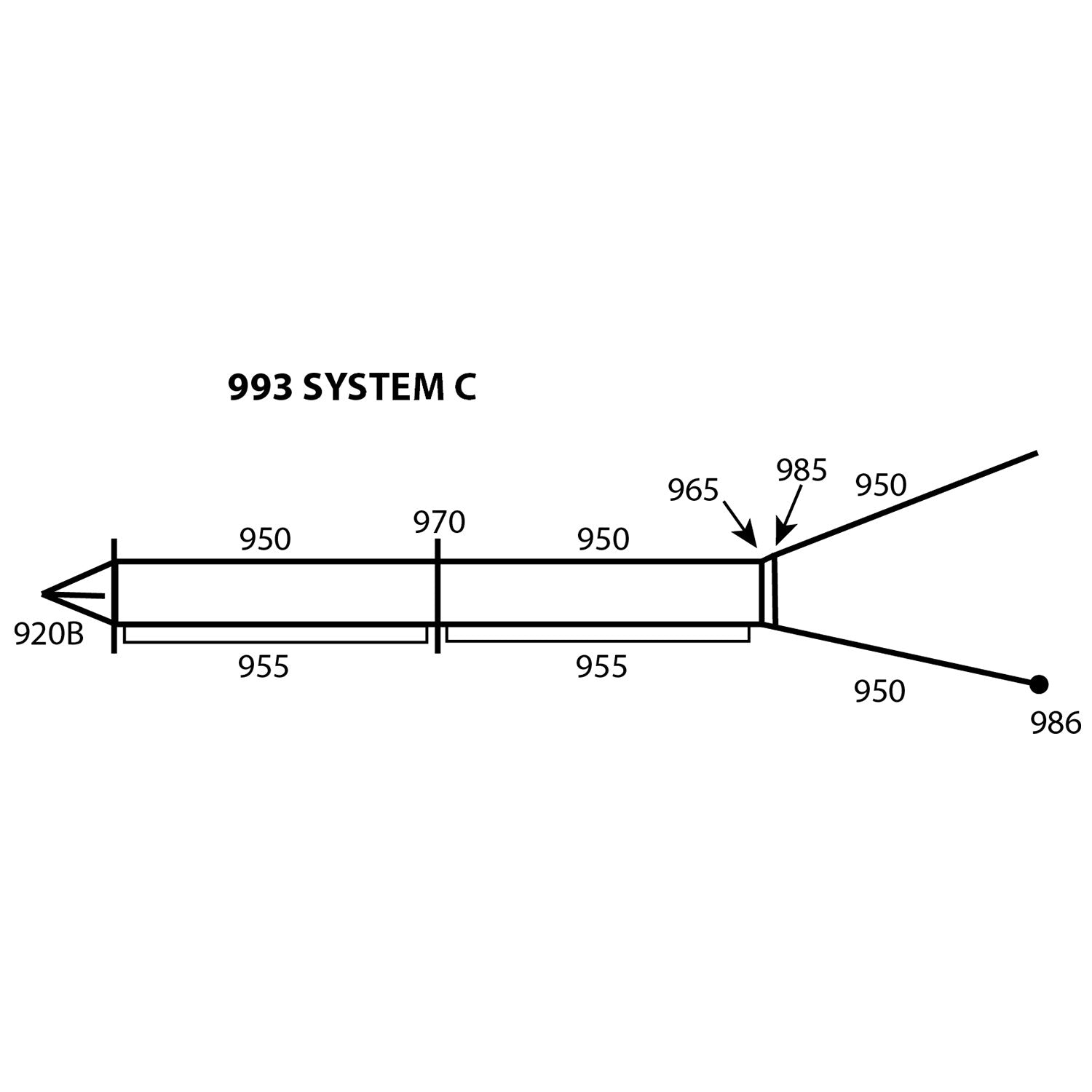

What’s Included in System C

• (1) 0920B – 2-Way Sort
• (4) 0950 – 8 ft Solid Corral Panels
• (2) 0955 – 8 ft Solid Panels with 12 in Drop Top
• (1) 0965 – Flat Anti-Backup Plate
• (1) 0970 – Corral Support Stand
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (17) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Designed for Efficient Sheep & Goat Handling

System C uses 8 ft solid panels, 42 in high, to create a controlled working alley that helps limit outside distractions while moving sheep and goats toward the 0920B 2-Way Sort.

The 0985 Guillotine Gate controls livestock entry into the working alley, while the 0965 Anti-Backup Plate helps discourage animals from backing through the system. At the end of the alley, the 2-Way Sort allows livestock to be directed into separate groups depending on the producer’s management needs.

System C is designed for everyday sheep and goat management, including sorting, vaccinations, health checks, identification, breeding management, hoof care, treatment, weighing preparation, flock or herd separation, and routine livestock handling.

Key Features & Benefits

• Compact sheep and goat working and sorting system
• Approximate overall footprint of 27 ft 5 in x 8 ft
• 16 ft solid working alley
• 42 in high solid panels help limit outside distractions
• Adjustable alley width accommodates different sizes of sheep and goats
• Alley can be narrowed into a V-shaped configuration
• 2-Way Sort allows livestock to be separated into different groups
• Guillotine Gate helps control livestock entry into the working alley
• Anti-backup equipment helps discourage animals from backing through the alley
• Solid panels with 12 in drop tops provide easier handler access
• Heavy-duty American steel construction
• Modular drop-pin design allows components to be assembled and reconfigured
• Designed for operations that need an effective working system in a smaller footprint

Detailed System C Components

• 1-0920B 2-Way Sort
  Directs sheep and goats into two separate sorting directions.
• 4-0950 8 ft Solid Corral Panel
  Solid panel used to guide livestock and limit outside distractions. 42 in H.
• 2-0955 8 ft Solid Panel with 12 in Drop Top
  Solid working-alley panel with a lowered top section for easier handler access. 42 in overall height.
• 1-0965 Flat Anti-Backup Plate
  Helps discourage sheep and goats from backing up in the working alley.
• 1-0970 Corral Support Stand
  Provides added support and stability to the working system.
• 1-0985 Guillotine Gate
  Opens and closes vertically to control livestock movement into the working alley.
• 1-0986 Telescoping Rope Support
  Supports the rope-operated Guillotine Gate system.
• 17-0945 Heavy-Duty Drop Pin
  Zinc-plated 1/2 in x 42 in pin used to securely connect panels and system components.

Optional System Add-Ons

System C can be adapted as your livestock handling needs change. Compatible Sydell equipment may include a 3-Way Sort, Spin Doctor, Tilt Table, scales, and other sheep and goat handling equipment, depending on your desired setup.

Common Uses

• Sheep and goat sorting
• Controlled livestock movement
• Working and handling
• Vaccinations and health checks
• Identification and tagging
• Breeding management
• Hoof care and treatment
• Separating livestock into management groups
• Moving animals through weighing or treatment equipment
• Routine flock and herd management

Ideal For

• Sheep working systems
• Goat working systems
• Farms with limited space for a larger corral system
• Family farms and ranches
• Breeding and registered stock operations
• Commercial sheep and goat producers
• Universities and research facilities
• Veterinary and livestock health facilities
• Operations needing a compact working, sorting, and livestock handling system

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
