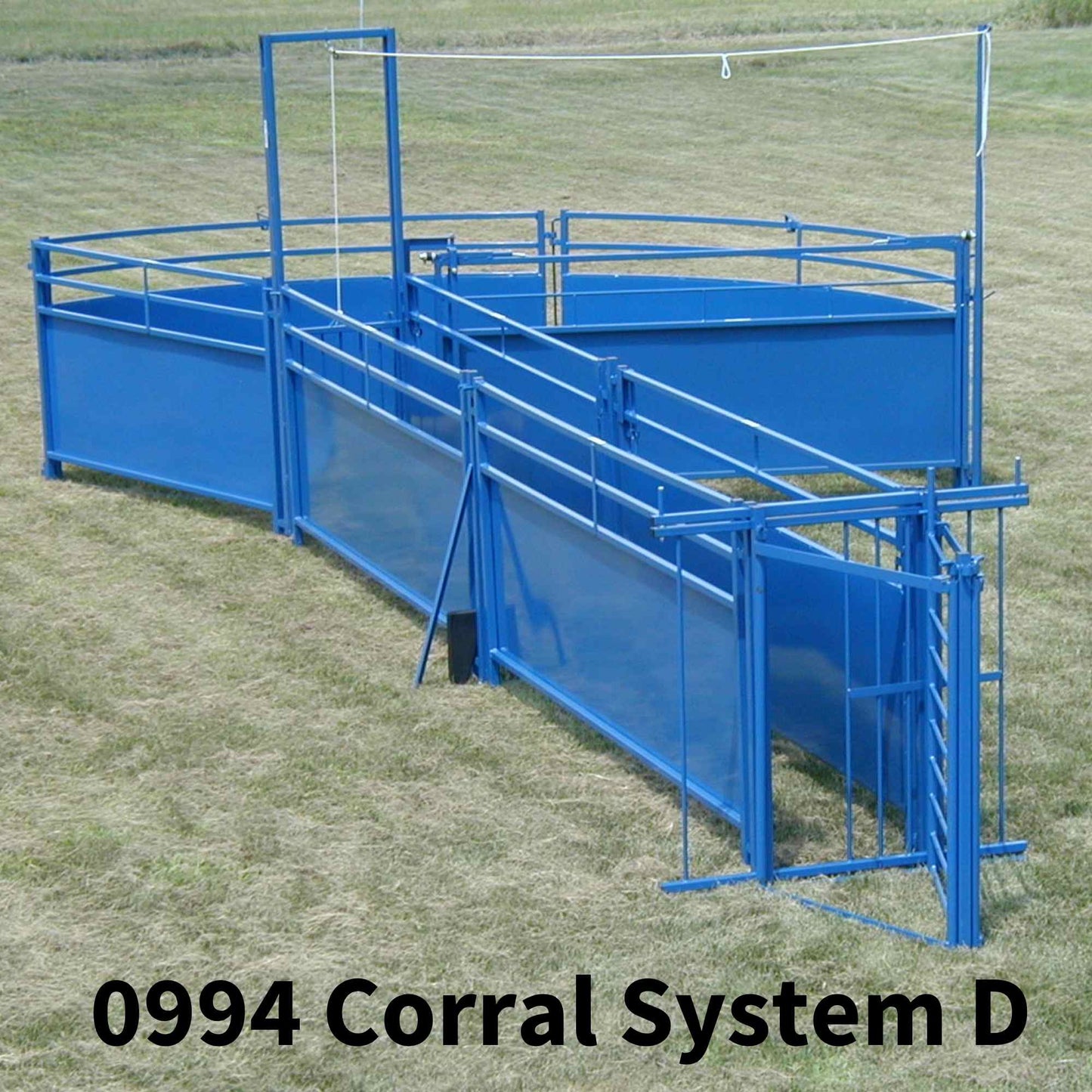

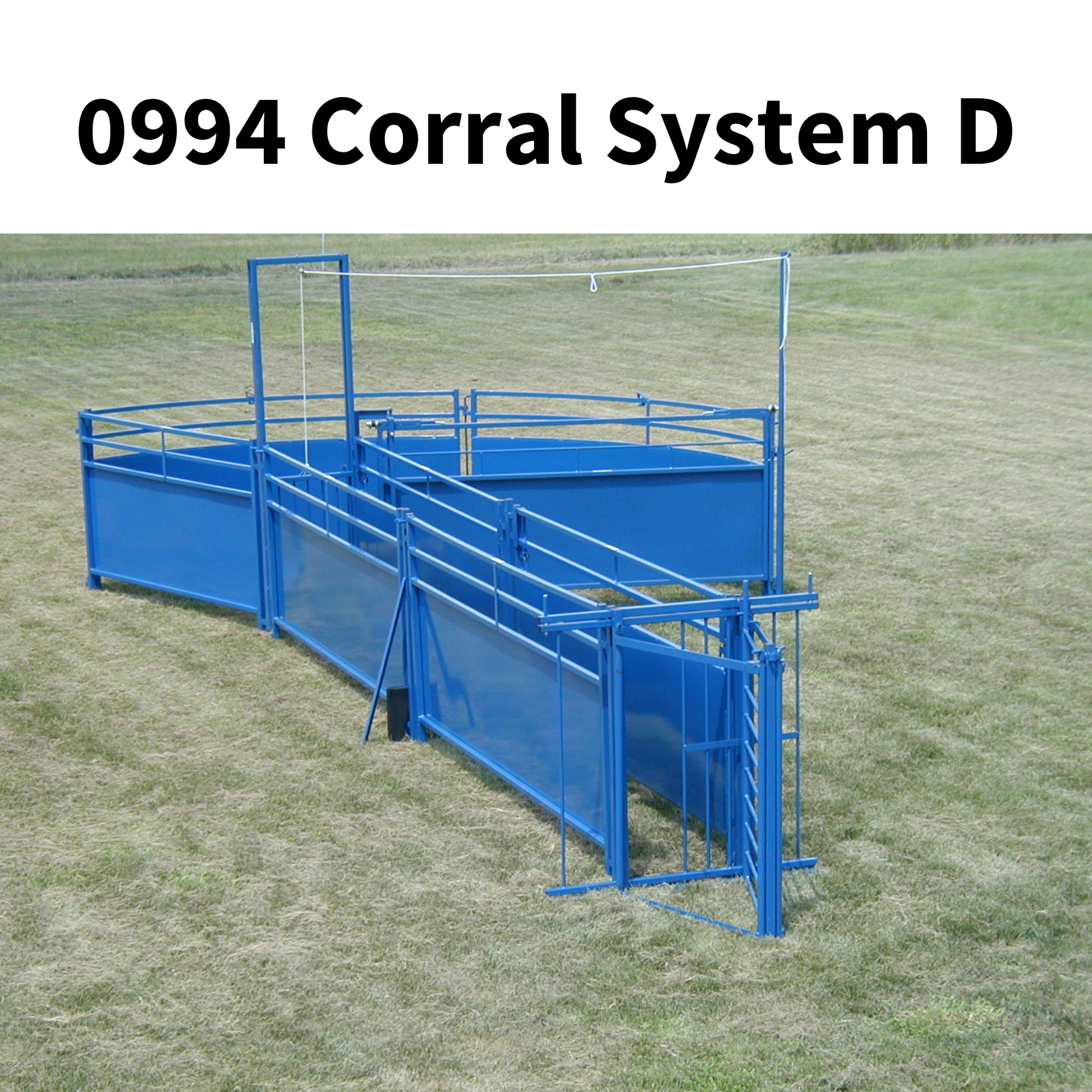

Complete Corral Working System D for Sheep & Goats | Sydell #0994

Sydell System D Sheep & Goat Corral and Working System – Item 0994

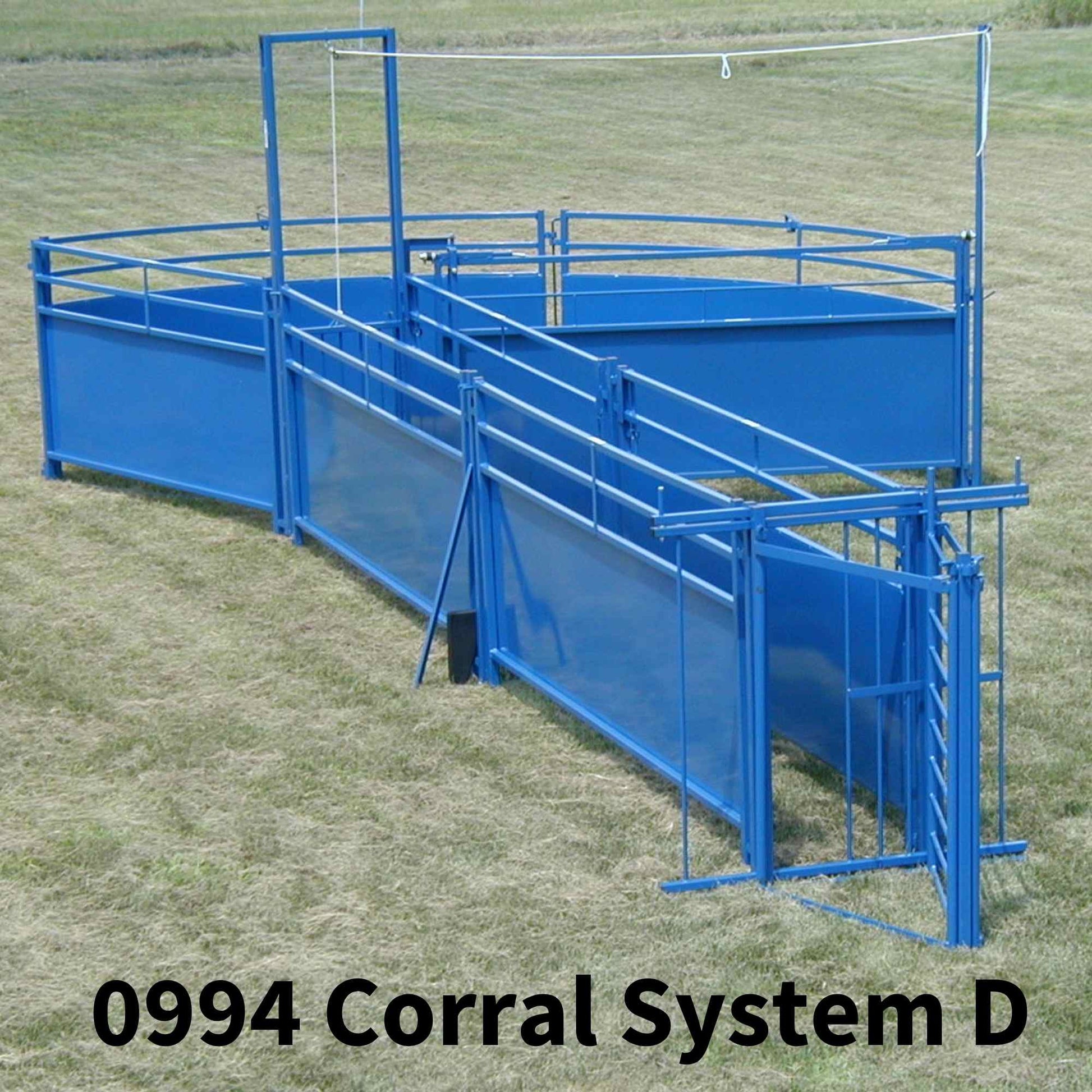

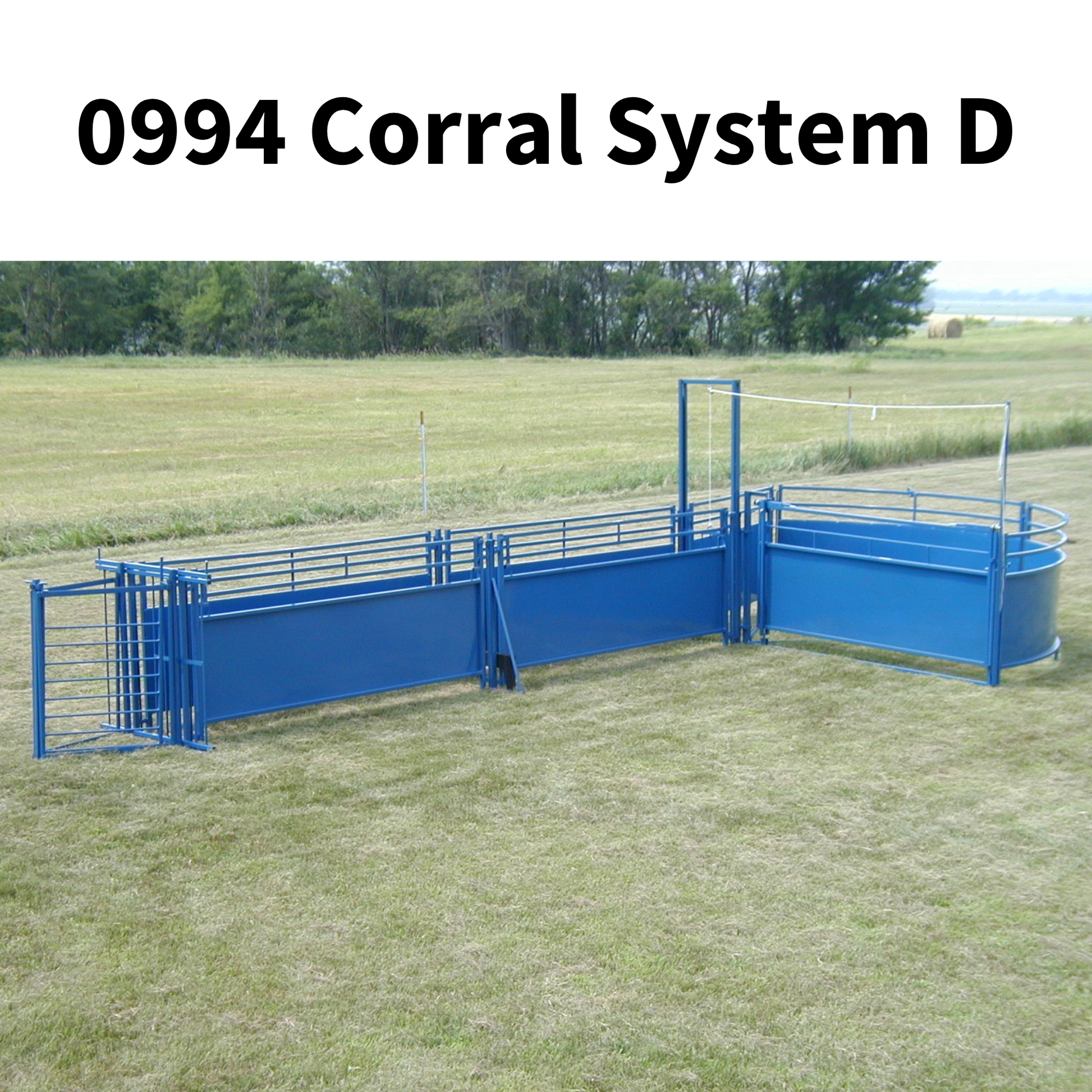

The Sydell System D Corral and Working System (Item 0994) is a compact sheep and goat handling system designed for crowding, moving, working, and sorting livestock. Its adjustable working alley and compact footprint make it a versatile choice for operations handling different sizes of sheep and goats.

Built from heavy-duty American steel, System D combines a 20-head crowding tub, 16 ft solid working alley, Guillotine Gate, anti-backup equipment, and 2-Way Sort into one organized livestock handling system.

System Specifications

Sydell Item Number: 0994
Overall Size: 26 ft 9 in L x 10 ft 5 in W
Weight: 900 lb
Crowding Tub Capacity: Up to 20 head of full-grown sheep or goats
Working Alley Length: 16 ft
Working Alley Width: Adjustable to accommodate different sizes of sheep and goats
Primary Panel Height: 42 in
Construction: Heavy-duty American steel
Designed For: Sheep and goats
System Type: Crowding, working, and sorting system
Assembly: Modular panels and gates connected with heavy-duty drop pins

How System D Works

Livestock enter the 20-head System D crowding tub, where solid-sided panels help limit outside distractions and guide sheep and goats toward the working alley. The 8 ft Slide/Swing Gate allows the operator to move livestock forward through the tub and control animal flow toward the 0985 Guillotine Gate.

From the tub, livestock enter the 16 ft solid working alley. The 42 in high solid panels provide secure containment and help keep animals focused on moving forward. Two alley panels feature a 12 in drop top, providing easier handler access when inspection or hands-on management is needed.

A key feature of System D is the adjustable working alley. The bottom of the alley can be narrowed to create a V-shaped configuration, allowing the alley to be adjusted for different sizes of sheep and goats while helping reduce the opportunity for animals to turn around.

The 0965 Flat Anti-Backup Plate helps discourage livestock from backing through the alley. At the end of the working alley, the 0920B 2-Way Sort allows sheep and goats to be directed into two separate groups.

This tub-to-alley-to-sort layout creates an efficient path for routine livestock handling in a compact overall footprint.

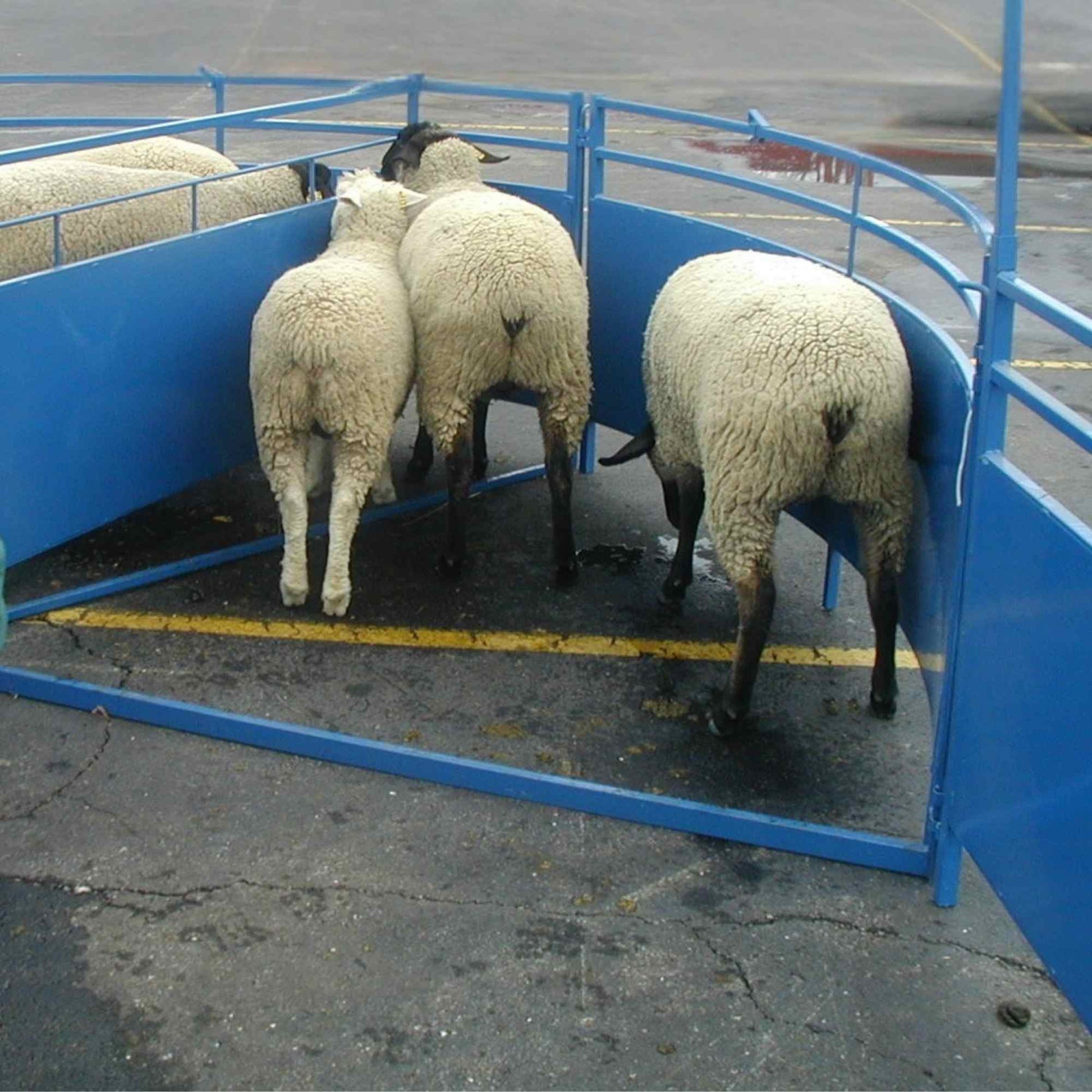

0994 Crowding Tub – 20-Head Capacity

The System D crowding tub creates a durable, controlled area for directing sheep and goats into the working alley and holds up to 20 head of full-grown sheep or goats.

The tub uses two 8 ft curved solid tub panels and a System D special-length solid panel to form the crowding area. The curved design helps guide livestock toward the alley, while the solid panels help limit outside distractions.

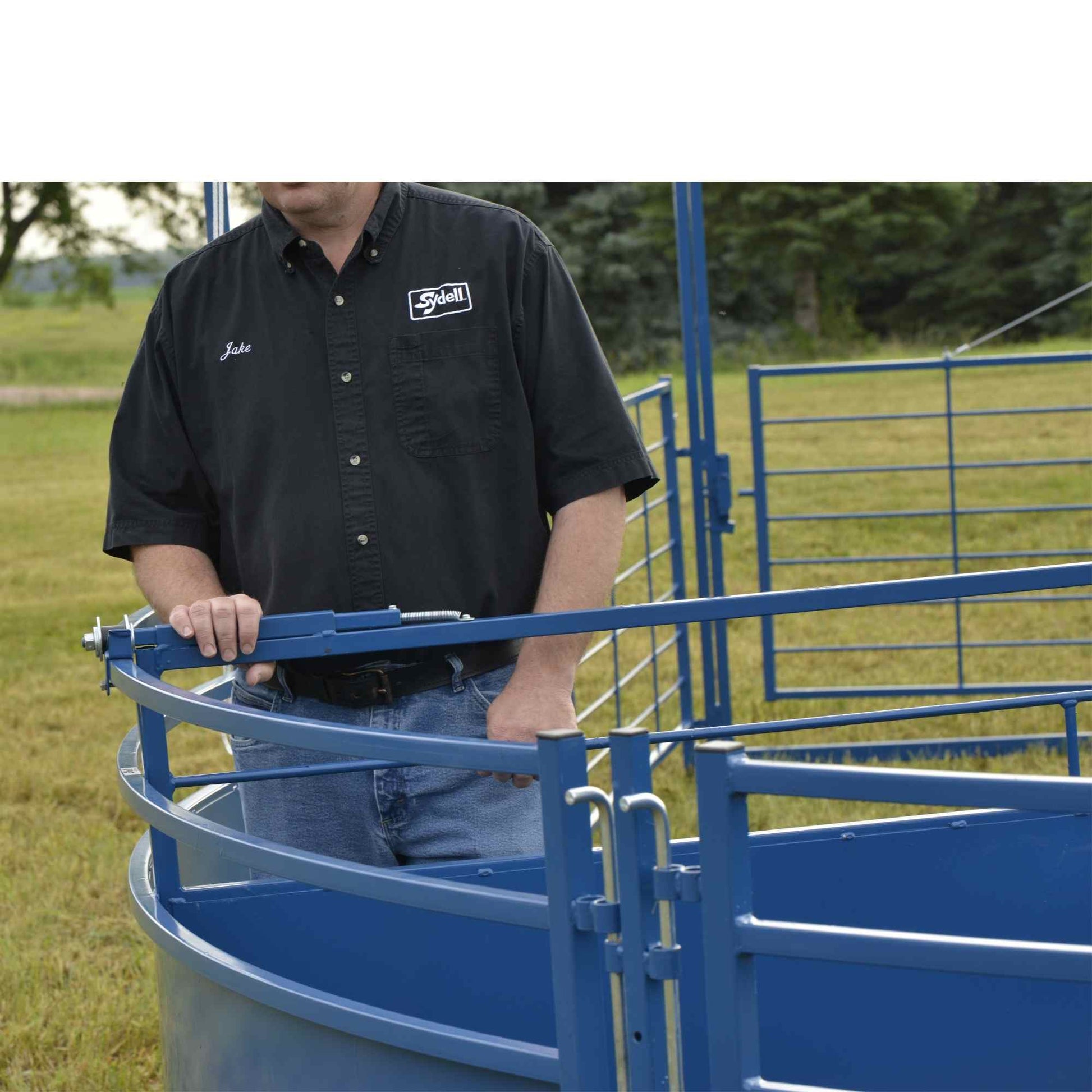

The 0943-8 Slide/Swing Gate allows the operator to move livestock forward through the tub and provides flexible access for loading and controlling stock.

0994 Tub Includes:

• 1 – 0943-8: 8 ft Slide/Swing Gate
• 1 – 0944D: System D Tub Support Assembly
• 2 – 0950-T: 8 ft Curved Solid Tub Panels
• 1 – 0950D: System D Special-Length Solid Panel

Tub Capacity: Up to 20 head of full-grown sheep or goats

Key Features & Benefits

• Complete sheep and goat crowding, working, and sorting system
• Crowding tub holds up to 20 head of full-grown sheep or goats
• Compact overall footprint of 26 ft 9 in L x 10 ft 5 in W
• 16 ft solid working alley
• Adjustable alley accommodates different sizes of sheep and goats
• Alley can be narrowed at the bottom to create a V-shaped configuration
• Curved solid crowding tub helps guide livestock toward the working alley
• 42 in high solid panels help limit outside distractions
• 12 in drop-top panels provide easier handler access to livestock
• Guillotine Gate controls livestock entry into the working alley
• Anti-backup equipment helps discourage livestock from backing through the alley
• 2-Way Sort directs livestock into two separate groups
• 8 ft Slide/Swing Gate provides livestock access and flow control
• Heavy-duty American steel construction
• Modular drop-pin design allows components to be assembled and reconfigured
• Compact design makes efficient use of available handling space

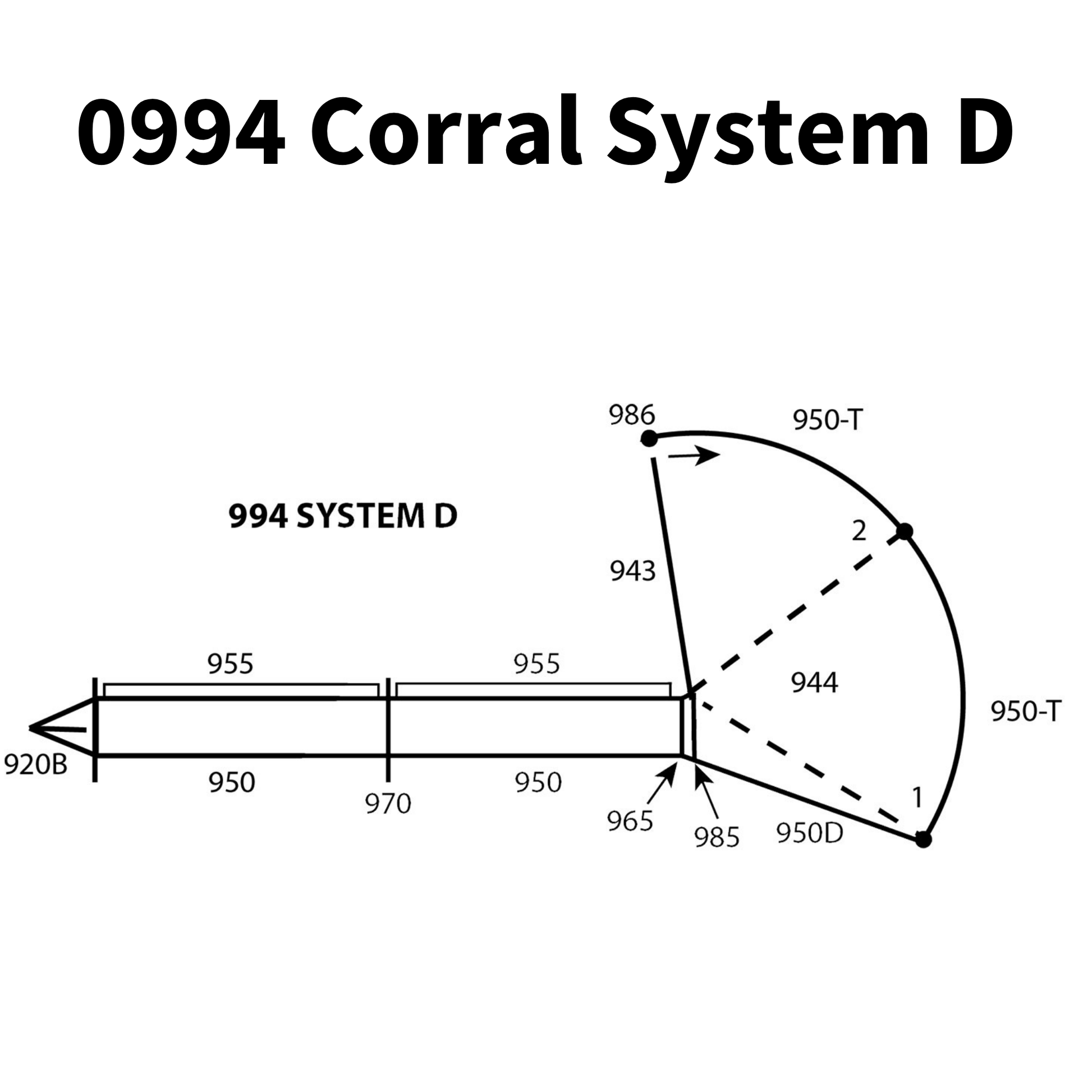

What’s Included in System D

• (1) 0920B – 2-Way Sort
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944D – System D Tub Support Assembly
• (2) 0950 – 8 ft Solid Corral Panels
• (1) 0950D – System D Special-Length Solid Panel
• (2) 0950-T – 8 ft Curved Solid Tub Panels
• (2) 0955 – 8 ft Solid Panels with 12 in Drop Top
• (1) 0965 – Flat Anti-Backup Plate
• (1) 0970 – Corral Support Stand
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (22) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Detailed System D Components

1-0920B 2-Way Sort
Directs sheep and goats into two separate sorting directions.

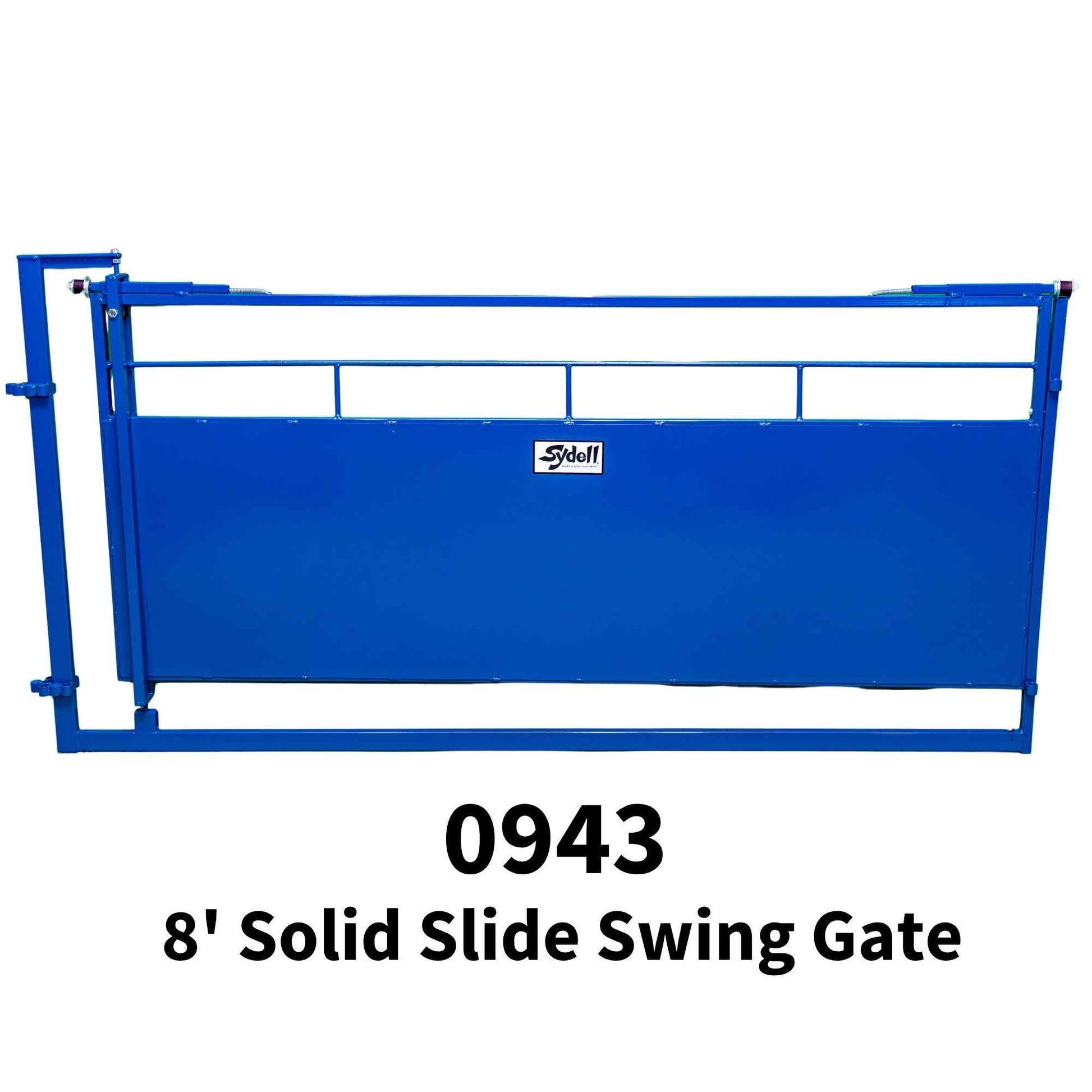

1-0943-8 8 ft Slide/Swing Gate
Slides or swings open for flexible livestock access and control. 42 in H.

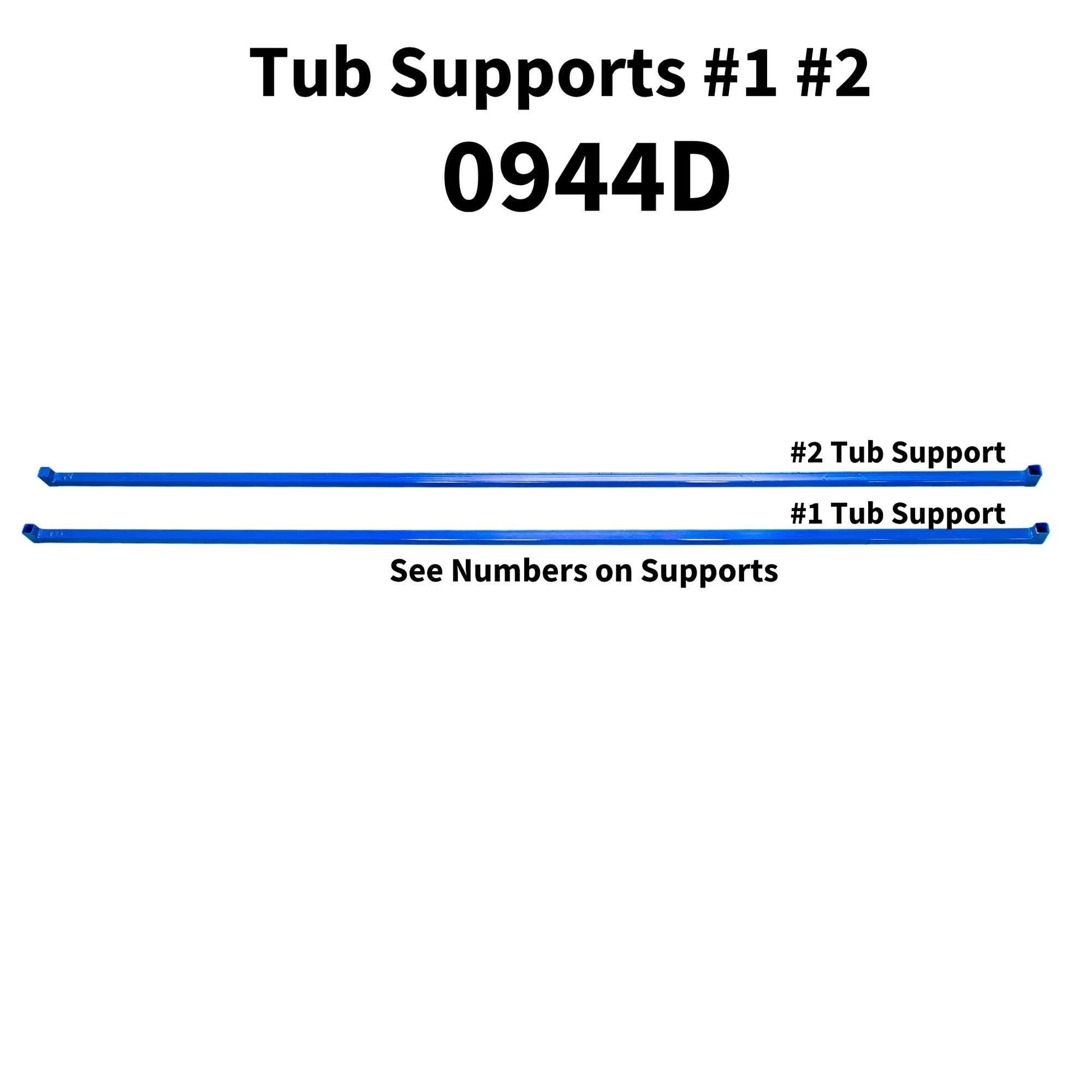

1-0944D System D Tub Support Assembly
Supports and stabilizes the System D crowding tub.

2-0950 8 ft Solid Corral Panels
Solid panels used to guide livestock and limit outside distractions. 42 in H.

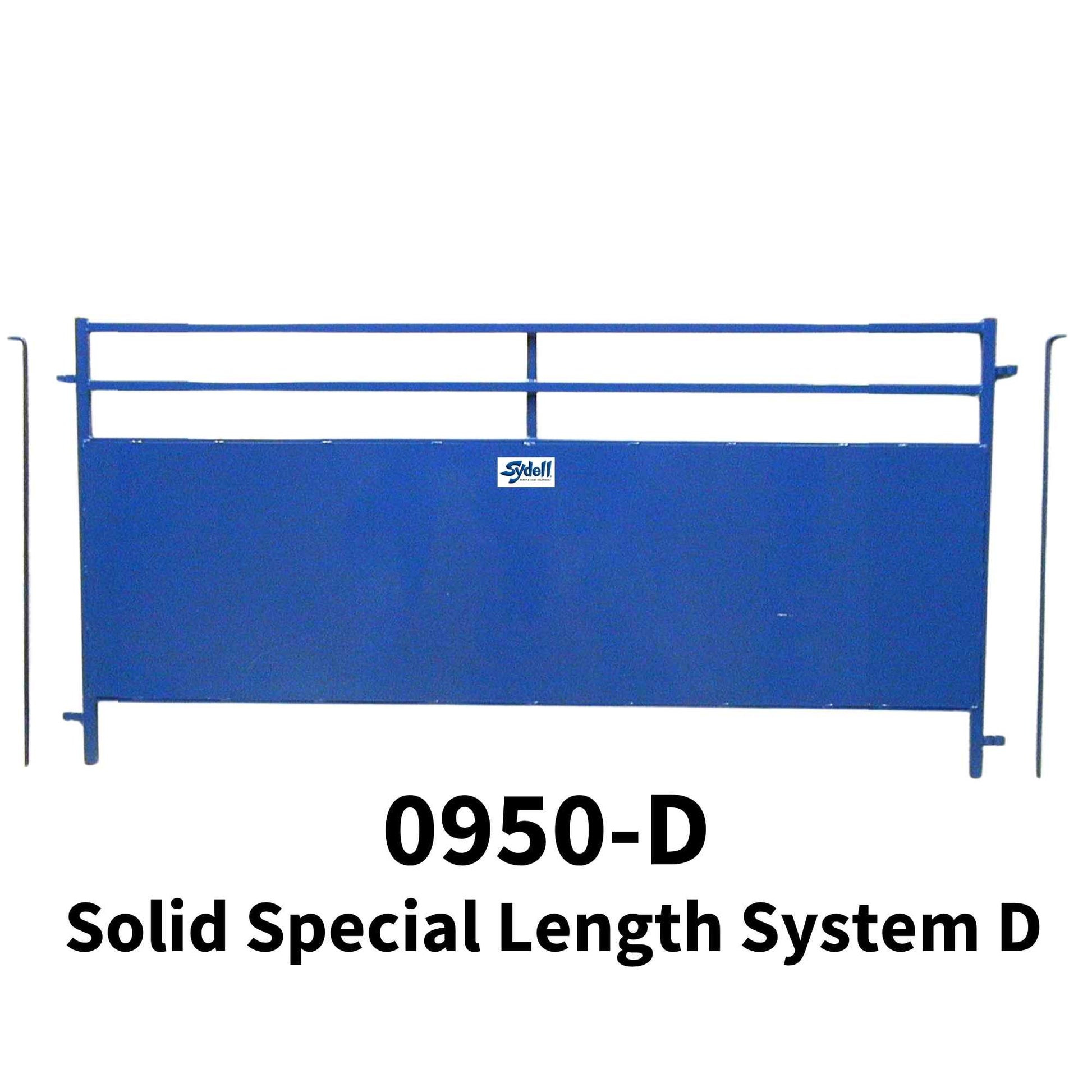

1-0950D System D Special-Length Solid Panel
Special-length solid panel designed specifically to complete the System D crowding tub and working layout.

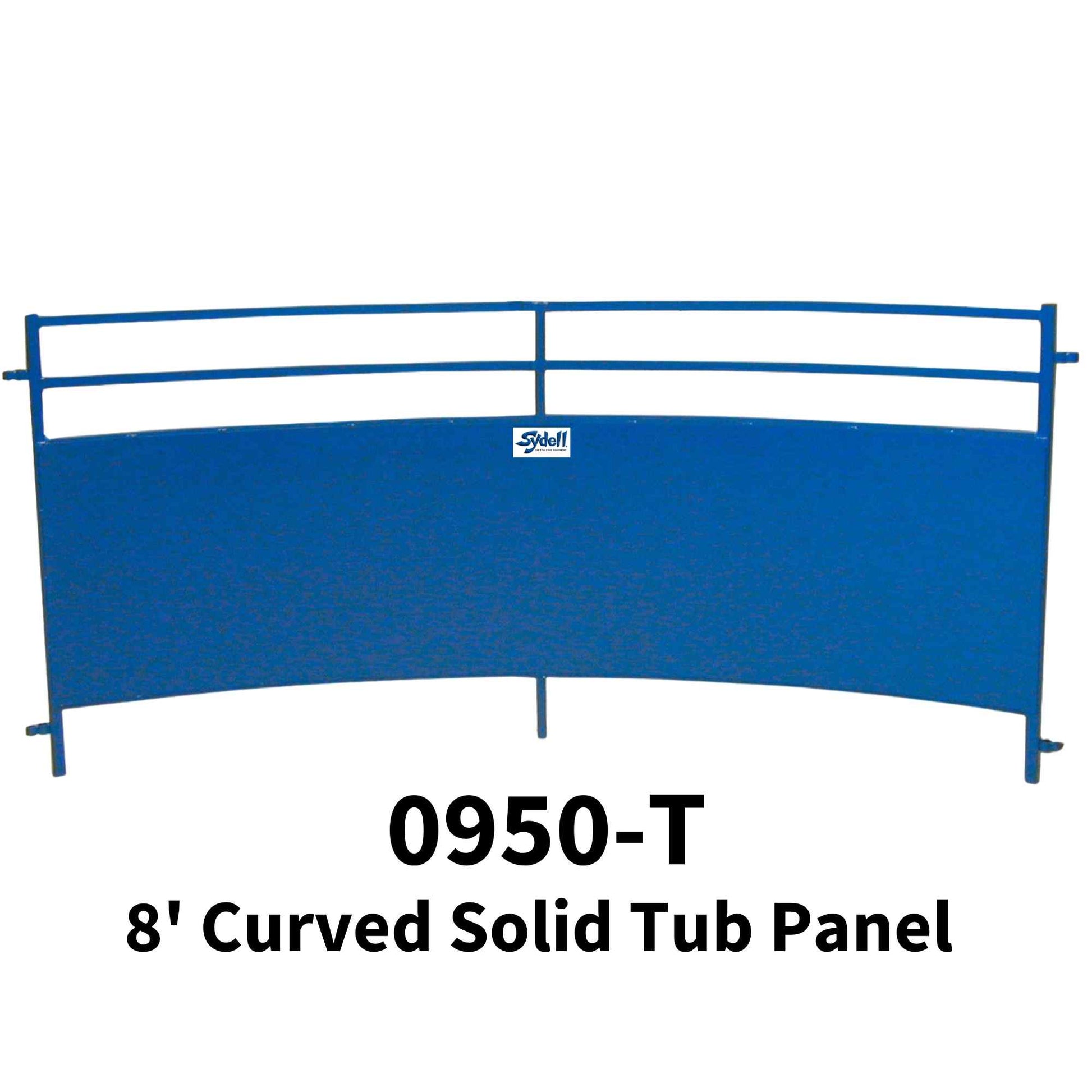

2-0950-T 8 ft Curved Solid Tub Panels
Form the curved portion of the crowding tub and help guide livestock toward the working alley. 42 in H.

2-0955 8 ft Solid Panels with 12 in Drop Top
Solid working-alley panels with a lowered top section for easier handler access. 42 in overall height.

1-0965 Flat Anti-Backup Plate
Helps discourage sheep and goats from backing up in the working alley.

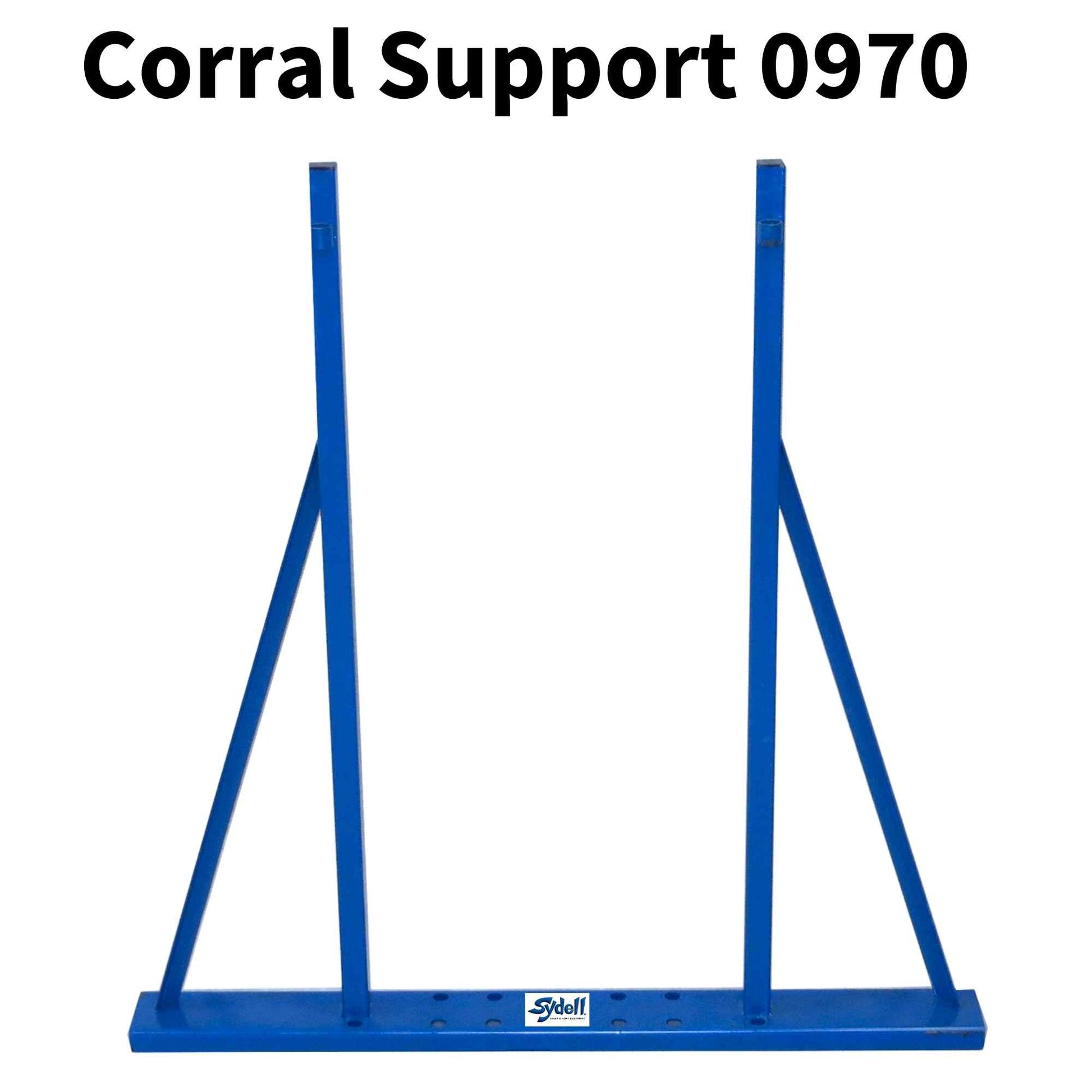

1-0970 Corral Support Stand
Provides additional support and stability to the working system.

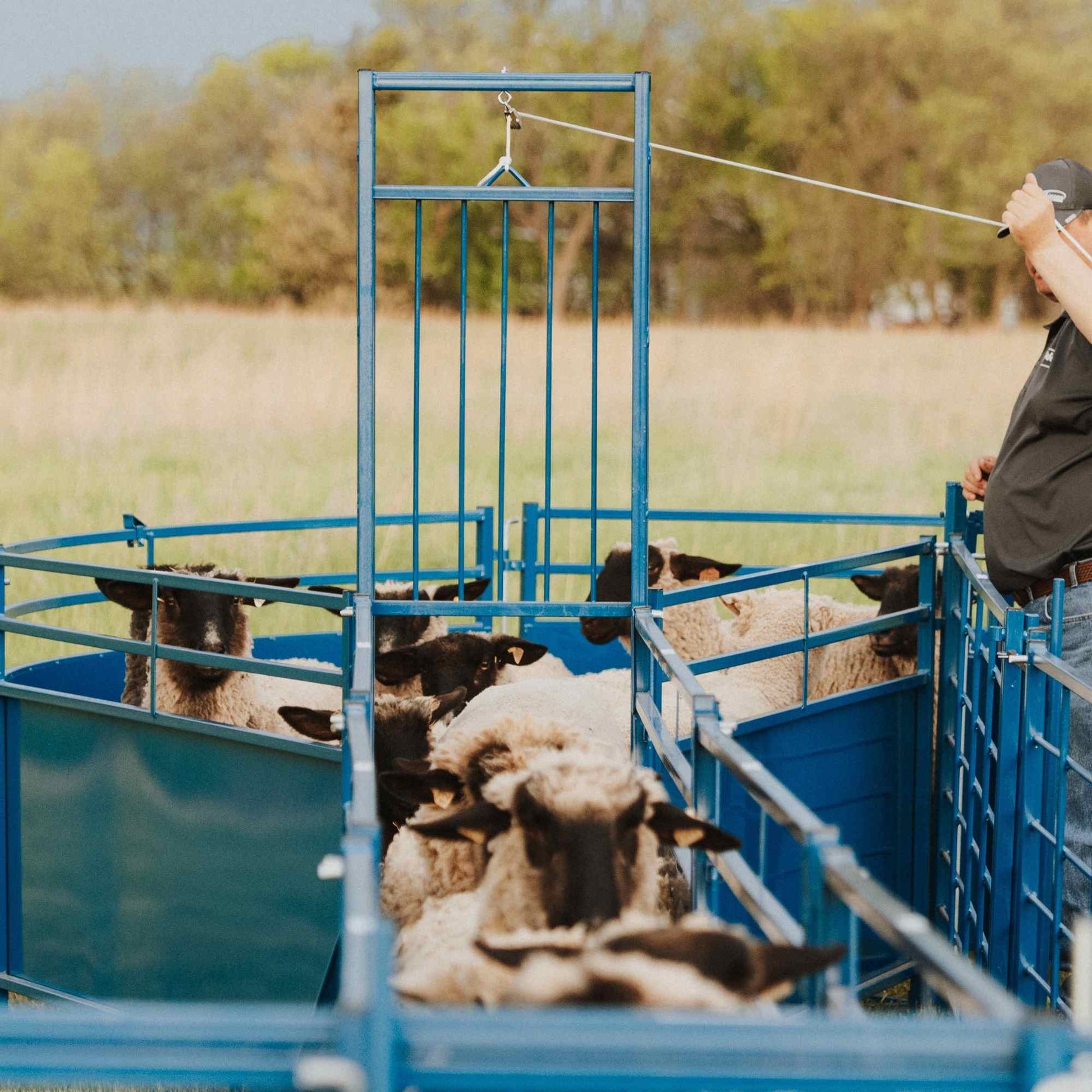

1-0985 Guillotine Gate
Opens and closes vertically to control livestock movement from the crowding area into the working alley.

1-0986 Telescoping Rope Support
Supports the rope-operated Guillotine Gate system.

22-0945 Heavy-Duty Drop Pins
Zinc-plated 1/2 in x 42 in pins used to securely connect panels, gates, and system components.

Optional System Add-Ons

System D can be adapted to meet additional livestock handling needs. Depending on your operation and layout, compatible options may include:

• 3-Way Sort for additional sorting directions
• Spin Doctor for sheep and goat handling
• Tilt Table for livestock restraint and management
• Foot Bath for hoof-care and management applications
• Livestock scales and other compatible Sydell handling equipment

Designed for Everyday Sheep & Goat Management

System D provides a controlled setup for routine livestock handling while allowing producers to adjust the working alley for different sizes of animals. It can be used for sorting and separating livestock, vaccinations and health checks, identification and tagging, breeding management, hoof care and treatment, flock and herd separation, moving animals through weighing or treatment equipment, and general sheep and goat handling.

Ideal For

System D is well suited for family farms and ranches, breeding and registered stock operations, commercial sheep and goat producers, universities, research facilities, veterinary facilities, and operations that need an adjustable-width working alley and complete crowding and sorting system in a compact footprint.

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
