Complete Corral Working System G for Sheep & Goats | Sydell #0989

Sydell System G Sheep & Goat Corral and Working System – Item 0989

The Sydell System G Corral and Working System is a compact, complete sheep and goat handling system designed for crowding, moving, working, and sorting livestock. Its narrow footprint makes it a practical choice for producers who want a complete working system without requiring a large handling area.

Built from heavy-duty American steel, System G combines a 25-head crowding tub, 16 ft solid working alley, Guillotine Gate, anti-backup equipment, and 2-Way Sort into one organized livestock handling system.

System Specifications

Sydell Item Number: 0989
Overall Size: 31 ft 6 in L x 7 ft 10 in W
Weight: 935 lb
Crowding Tub Capacity: Up to 25 head of full-grown sheep or goats
Crowding Tub Size: 13 ft 6 in L x 7 ft 8 in W
Working Alley Length: 16 ft
Primary Panel Height: 42 in
Construction: Heavy-duty American steel
Designed For: Sheep and goats
System Type: Crowding, working, and sorting system
Assembly: Modular panels and gates connected with heavy-duty drop pins

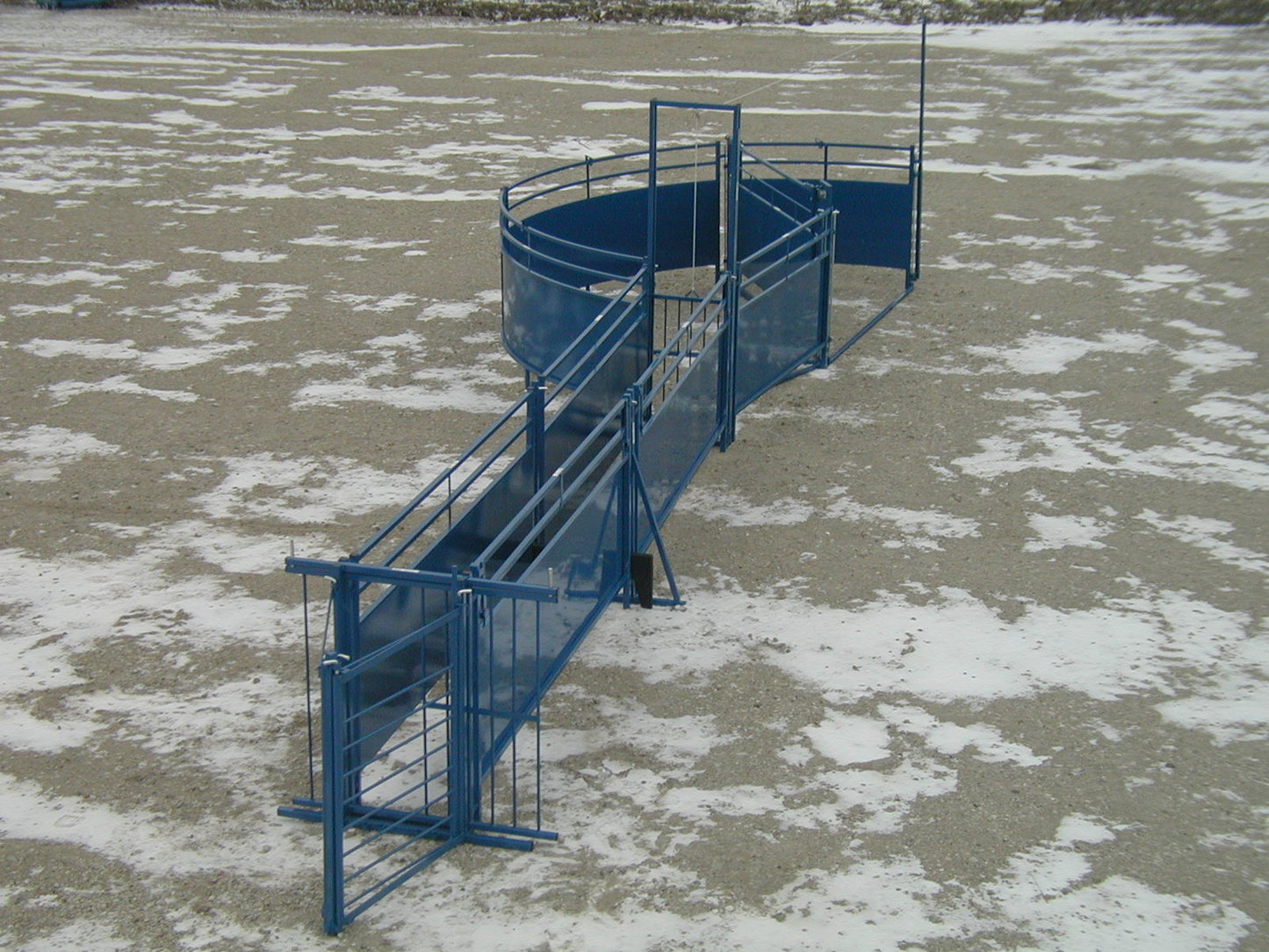

How System G Works

Livestock enter the 0989 crowding tub, which holds up to 25 head of full-grown sheep or goats. The curved, solid-sided tub helps guide animals toward the working alley while limiting outside distractions.

The 8 ft Slide/Swing Gate allows the operator to move livestock forward through the tub and control animal flow toward the 0985 Guillotine Gate.

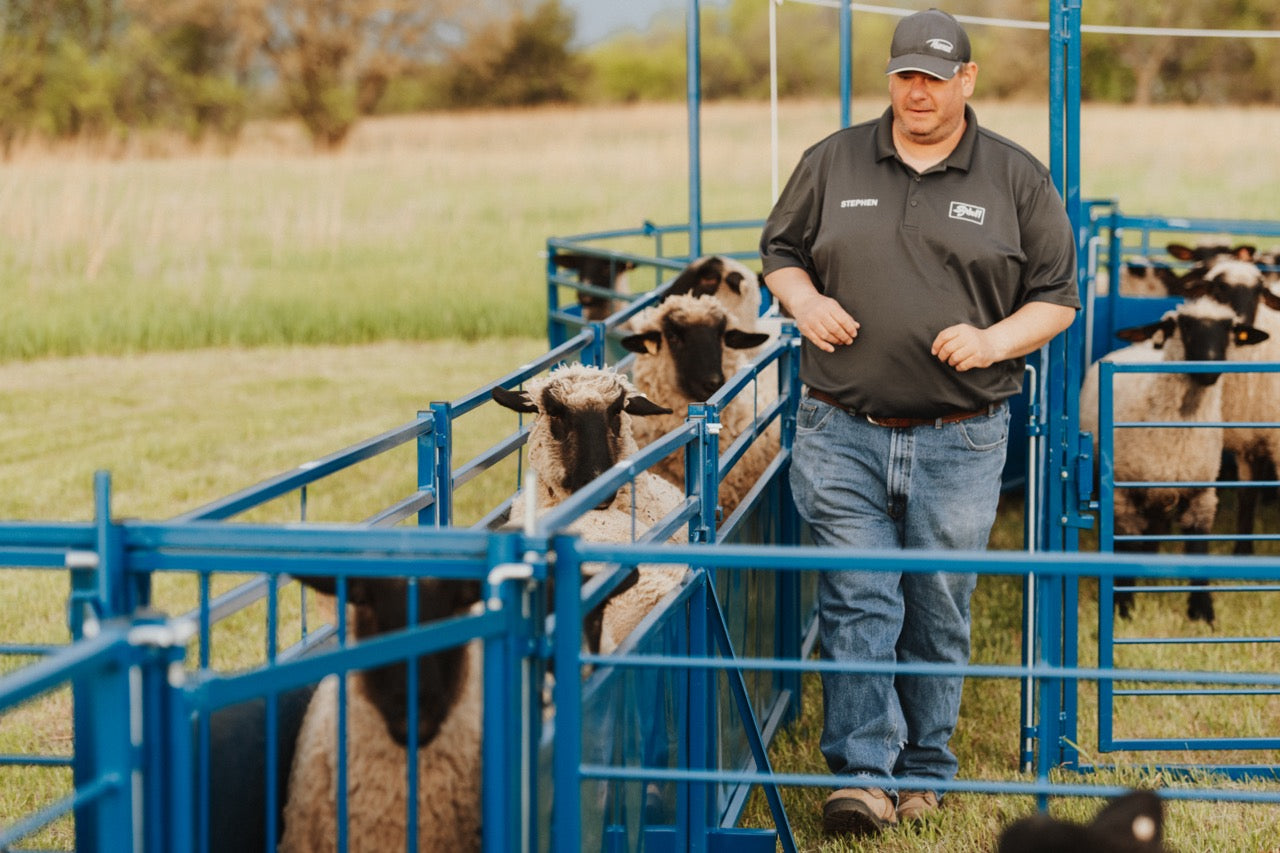

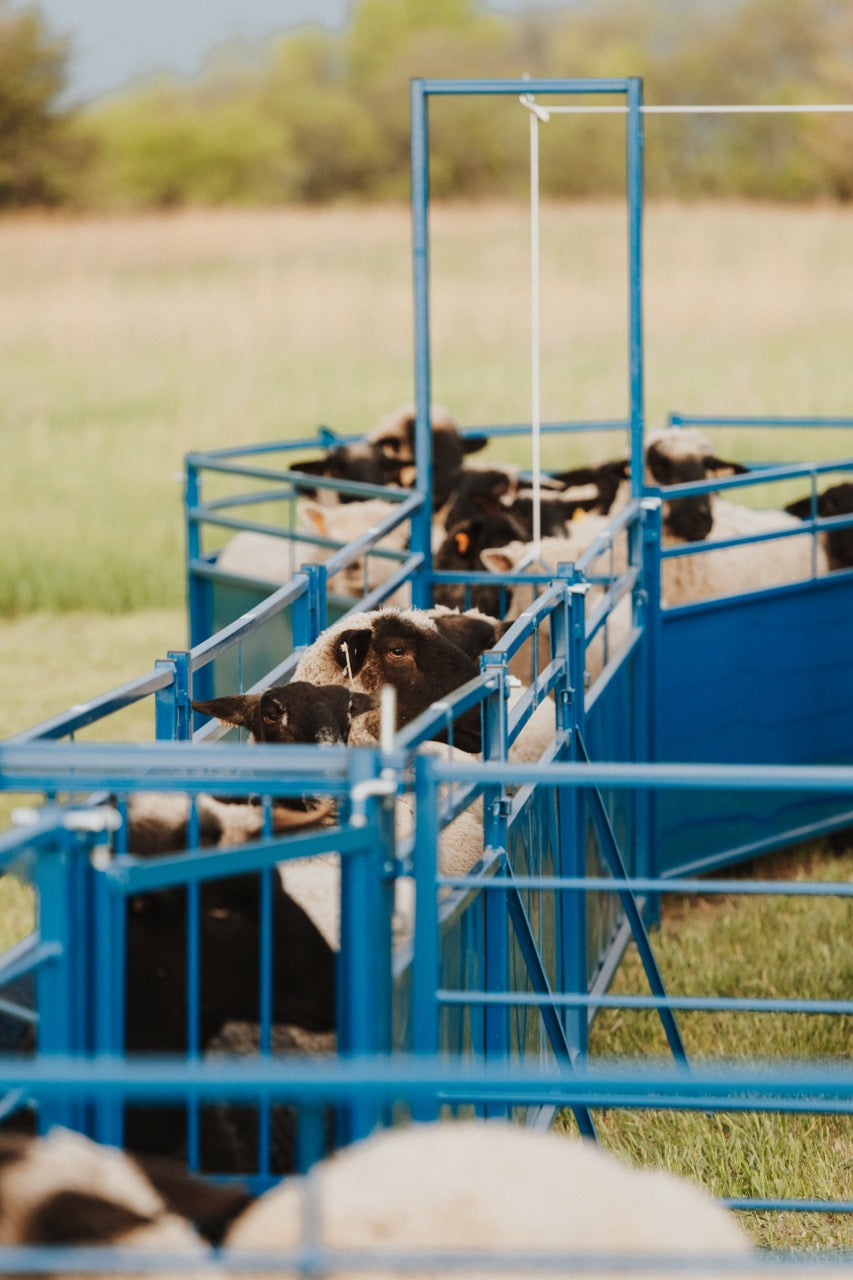

From the tub, livestock enter the 16 ft solid working alley. The 42 in high solid panels provide secure containment and help limit outside distractions. Two panels feature a 12 in drop top, giving the handler easier access to livestock for inspection and hands-on management.

The 0965 Flat Anti-Backup Plate helps discourage animals from backing through the alley.

At the end of the working alley, the 0920B 2-Way Sort allows sheep and goats to be directed into two separate groups.

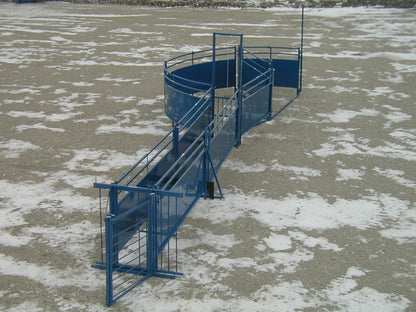

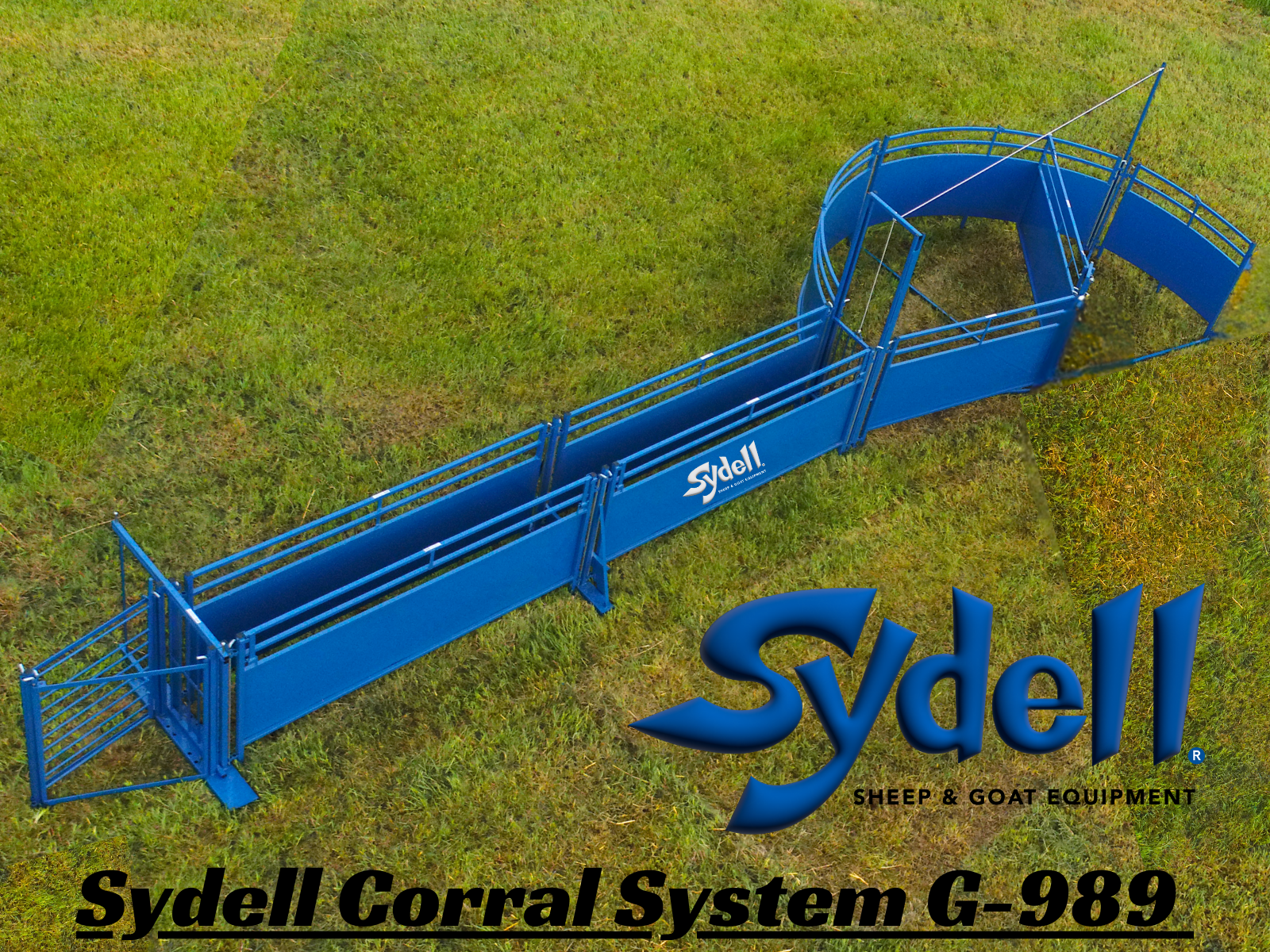

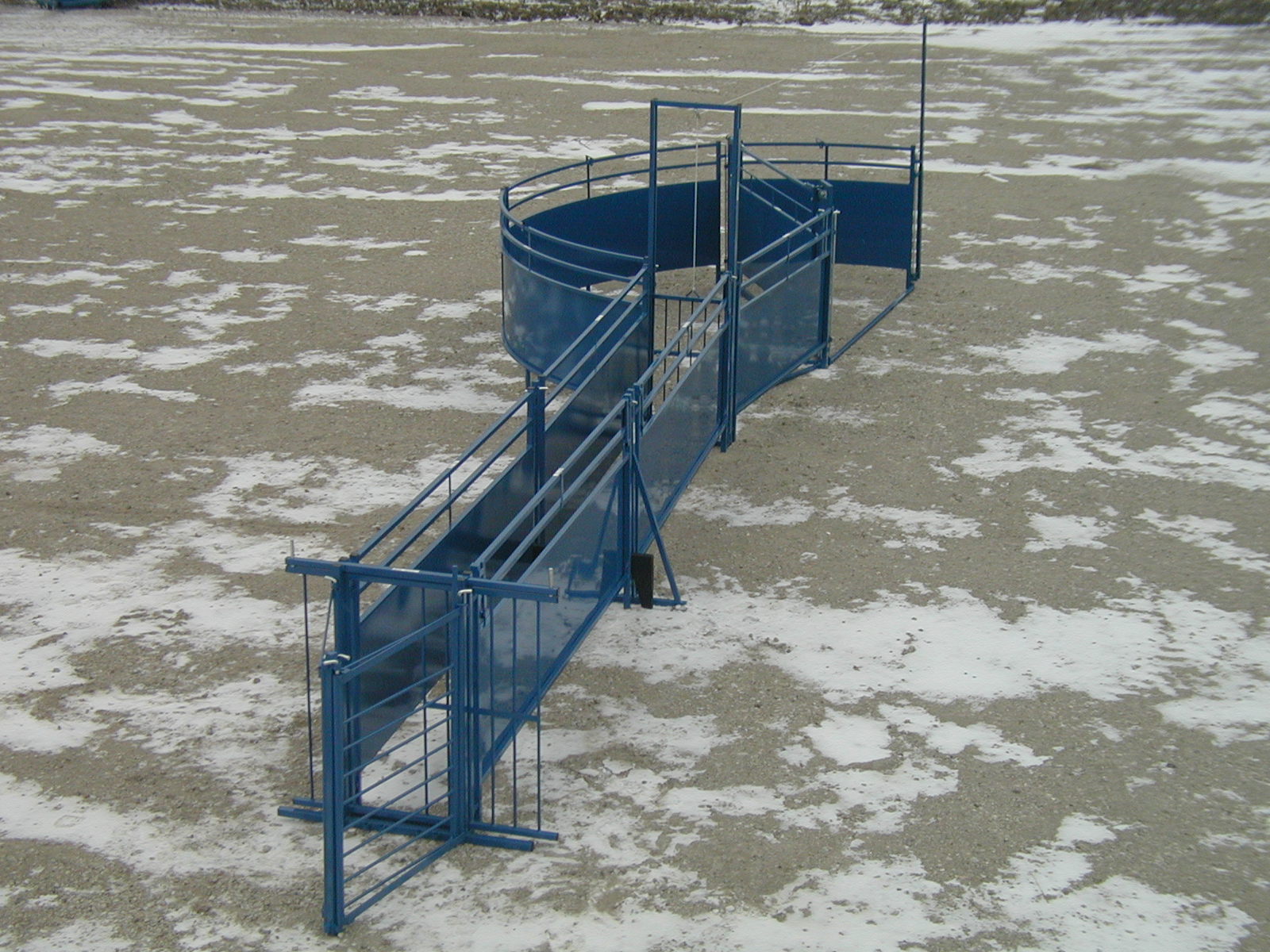

This tub-to-alley-to-sort layout creates an efficient path for routine livestock handling while keeping the overall system compact.

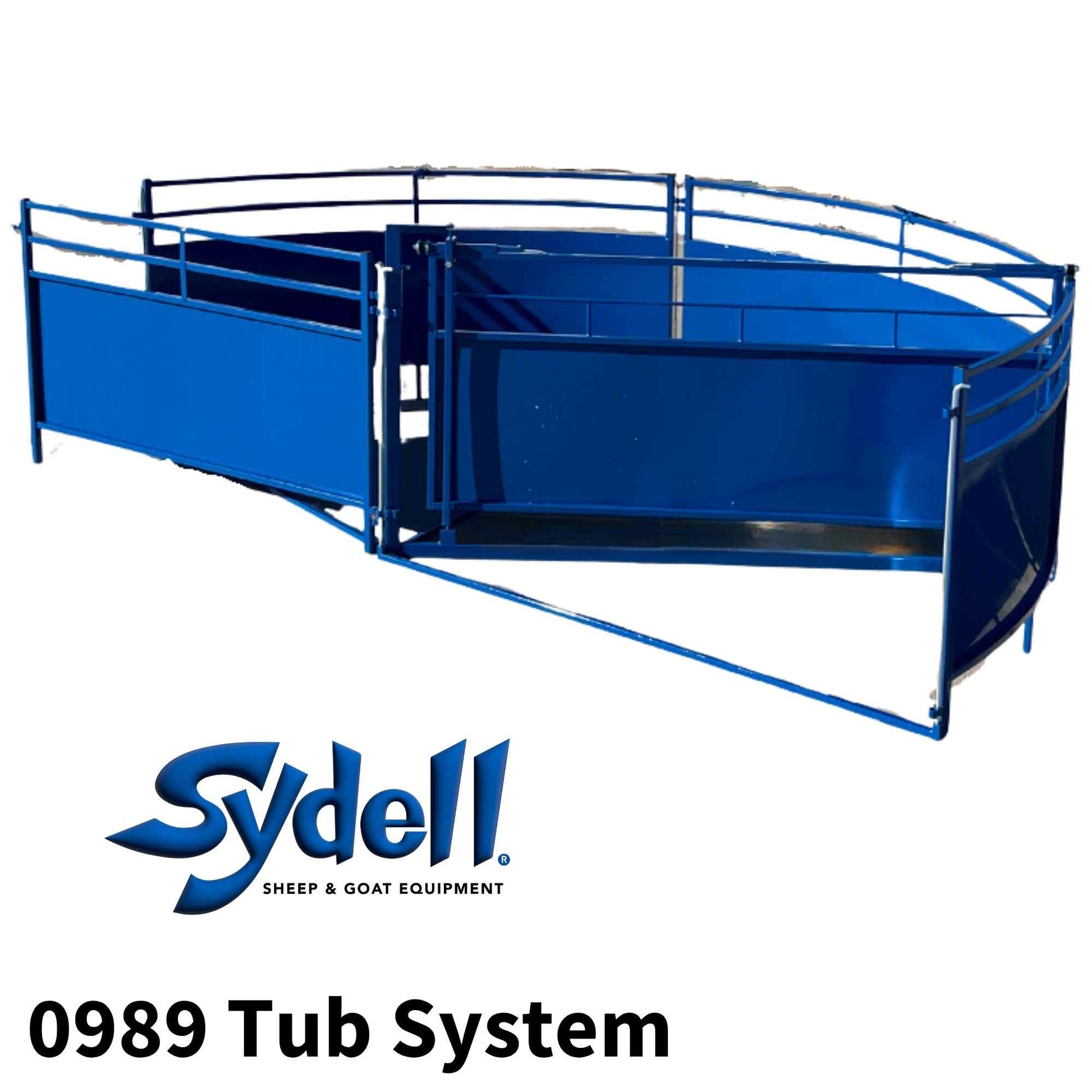

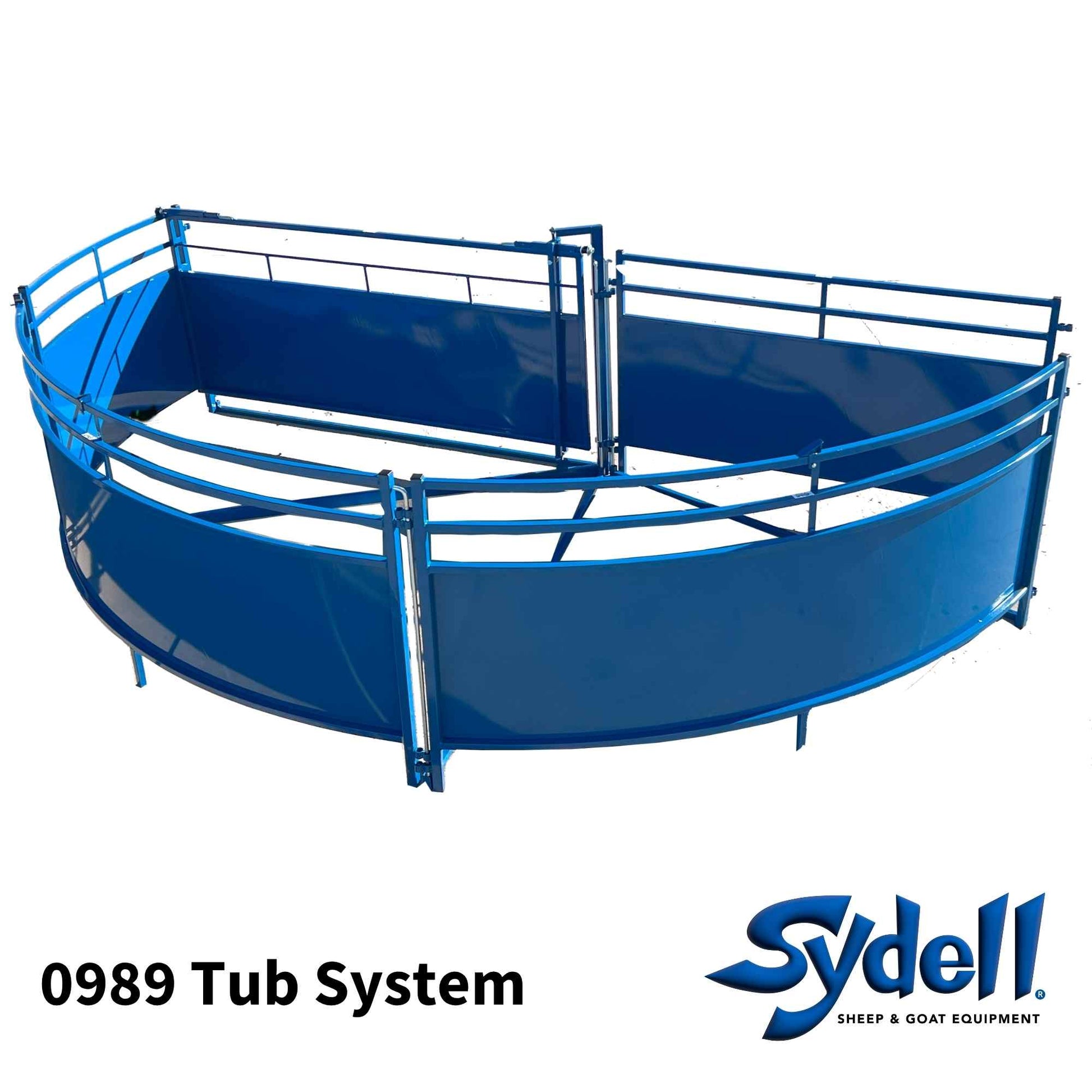

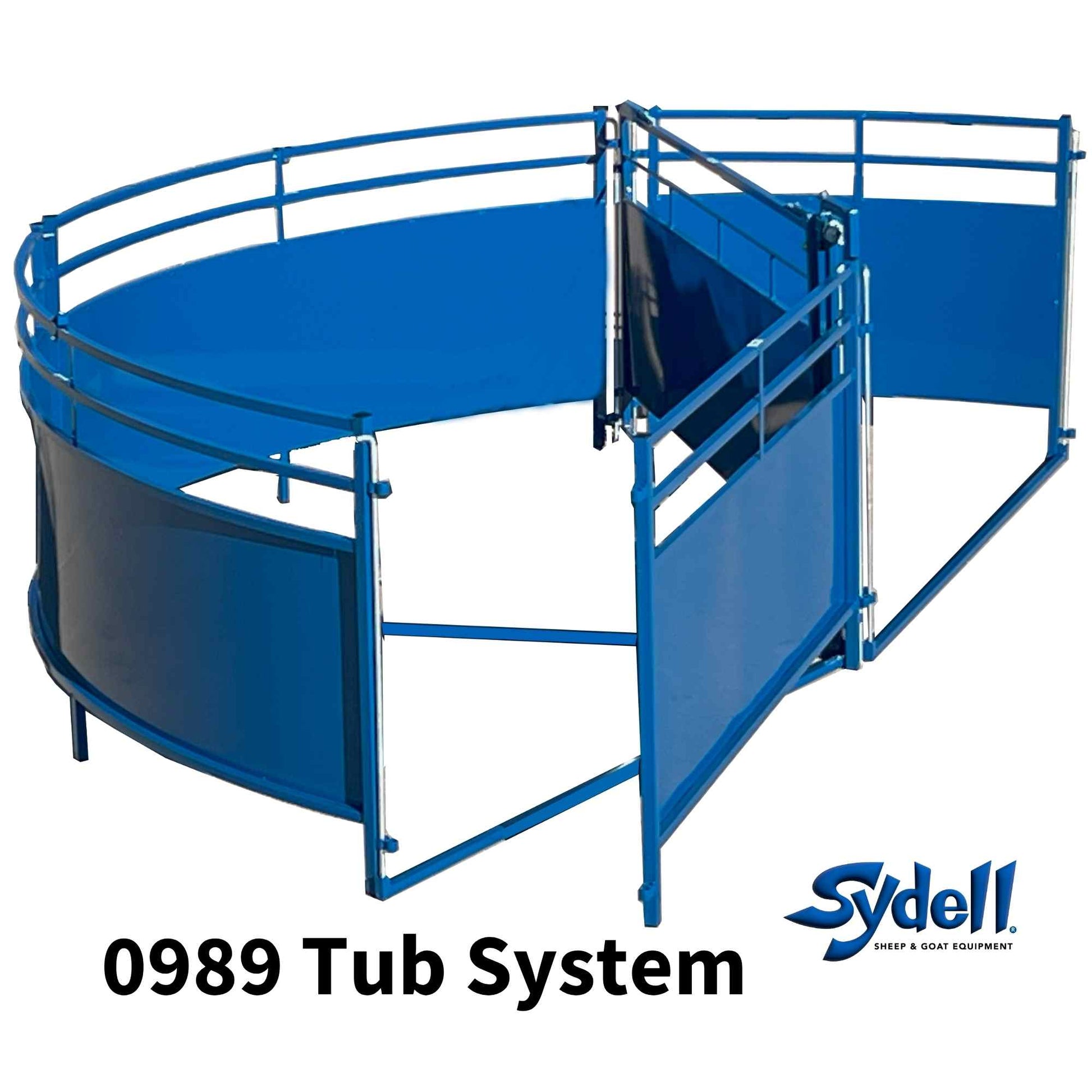

0989 Crowding Tub – 25-Head Capacity

The System G crowding tub measures 13 ft 6 in long x 7 ft 8 in wide and holds up to 25 head of full-grown sheep or goats.

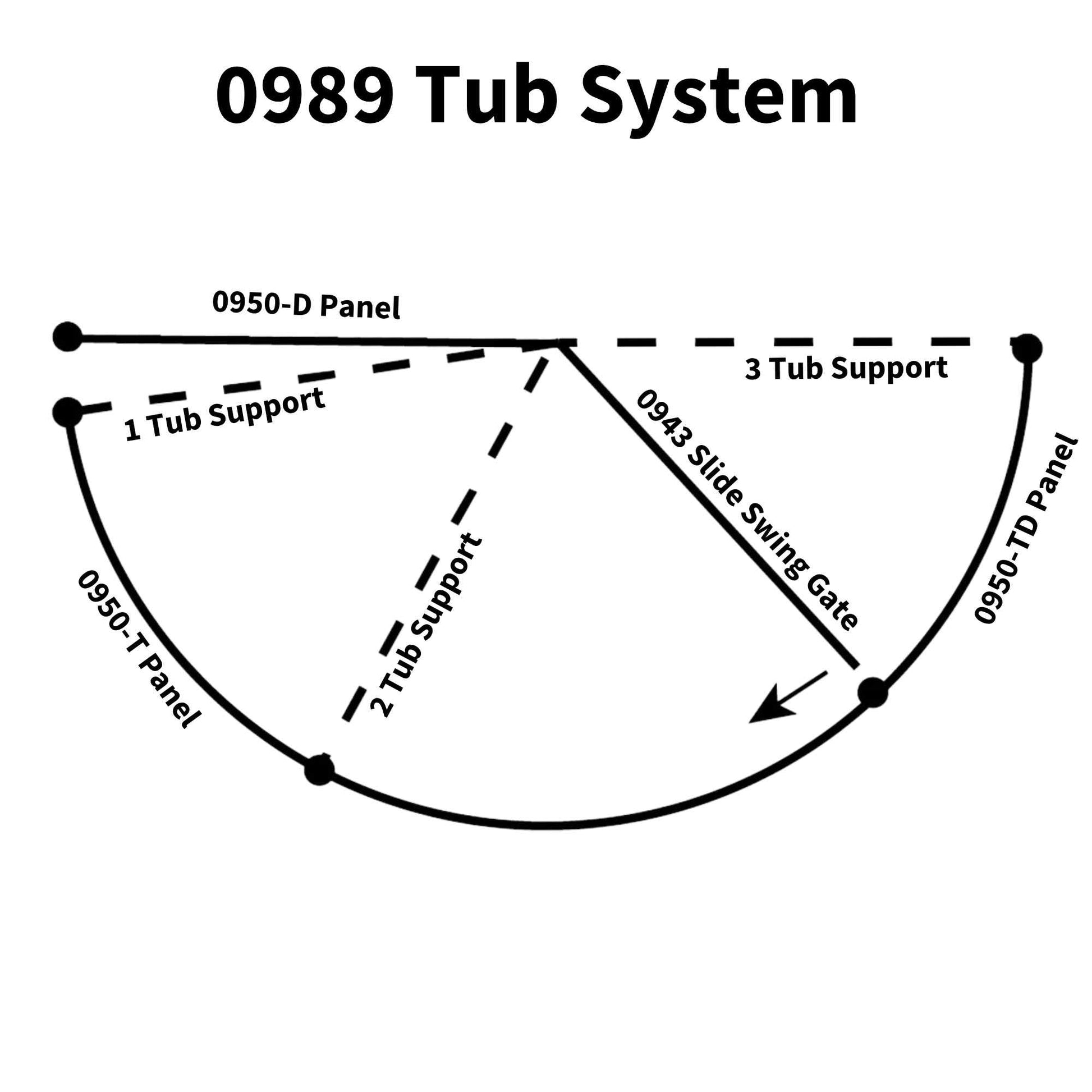

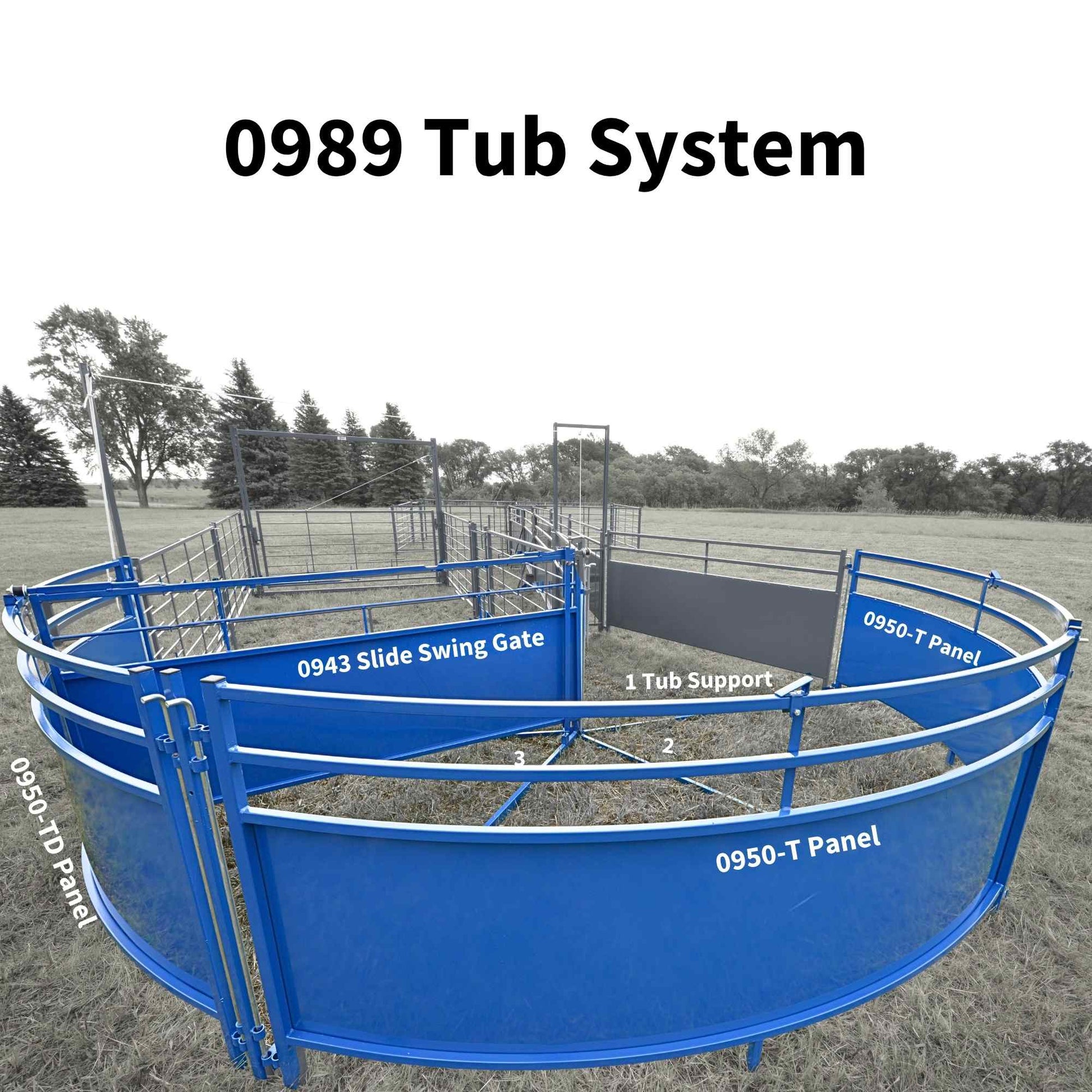

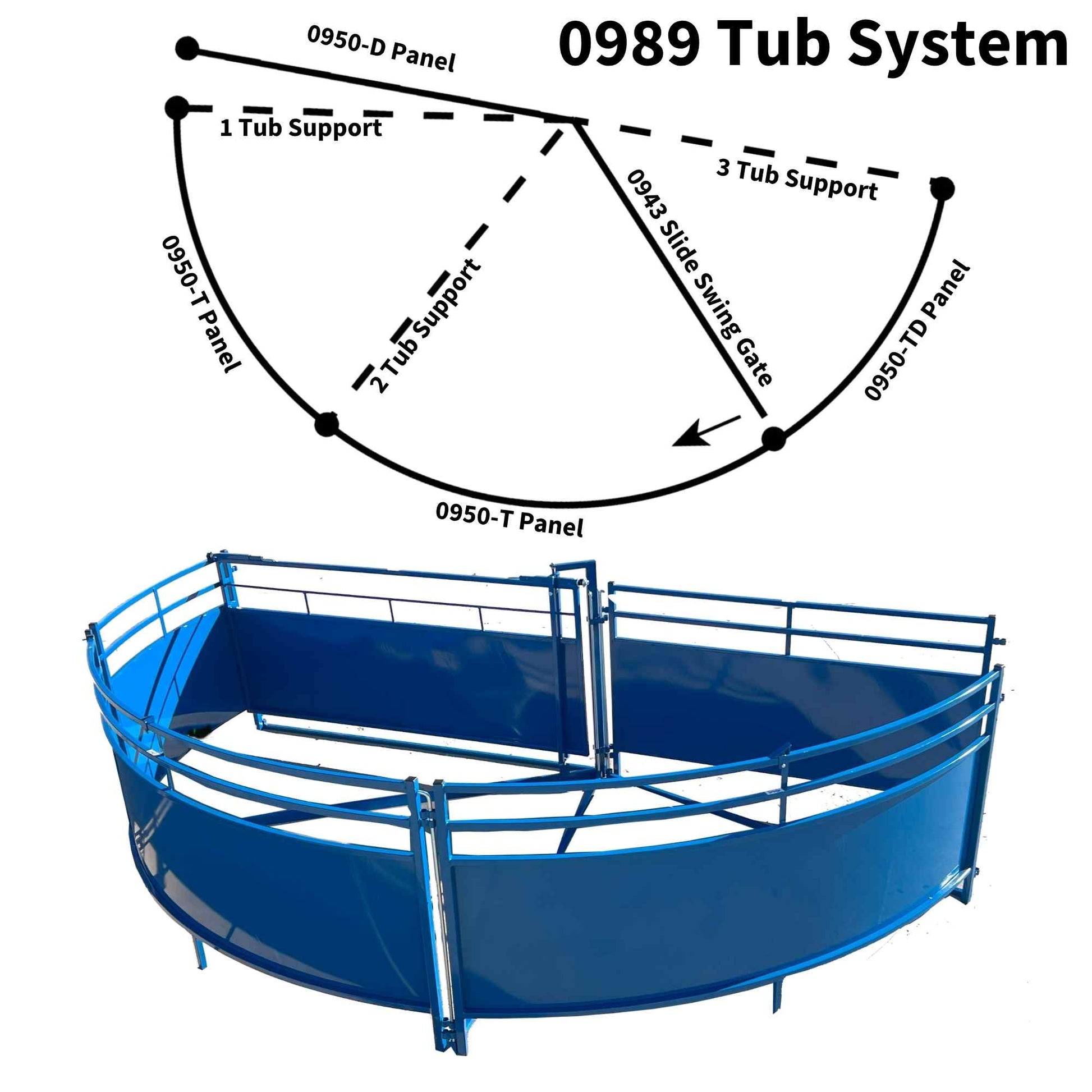

Unlike a full circular tub, the compact System G tub uses a combination of curved and special-length solid panels to create the crowding area. Two 8 ft curved solid tub panels and one short curved tub panel help guide livestock toward the alley, while the special-length solid panel completes the System G layout.

The 0943-8 Slide/Swing Gate gives the operator control over livestock movement through the tub and into the working alley.

0989 Tub Includes:

• 1 – 0943-8: 8 ft Slide/Swing Gate
• 1 – 0944: Tub Support Assembly
• 2 – 0950-T: 8 ft Curved Solid Tub Panels
• 1 – 0950-TD: Short Curved Tub Panel
• 1 – 0950D: Special-Length Solid Panel

Key Features & Benefits

• Complete sheep and goat crowding, working, and sorting system
• Crowding tub holds up to 25 head of full-grown sheep or goats
• Compact 13 ft 6 in x 7 ft 8 in crowding tub
• 16 ft solid working alley
• 42 in high panels provide secure livestock containment
• Curved, solid-sided tub helps guide livestock toward the working alley
• Solid working-alley panels help limit outside distractions
• 12 in drop-top panels provide easier handler access to livestock
• Guillotine Gate controls livestock entry into the working alley
• Anti-backup equipment helps discourage animals from backing through the alley
• 2-Way Sort directs livestock into two separate groups
• 8 ft Slide/Swing Gate provides livestock access and flow control
• Heavy-duty American steel construction
• Modular drop-pin design allows components to be assembled and reconfigured
• Narrow overall footprint makes efficient use of available handling space

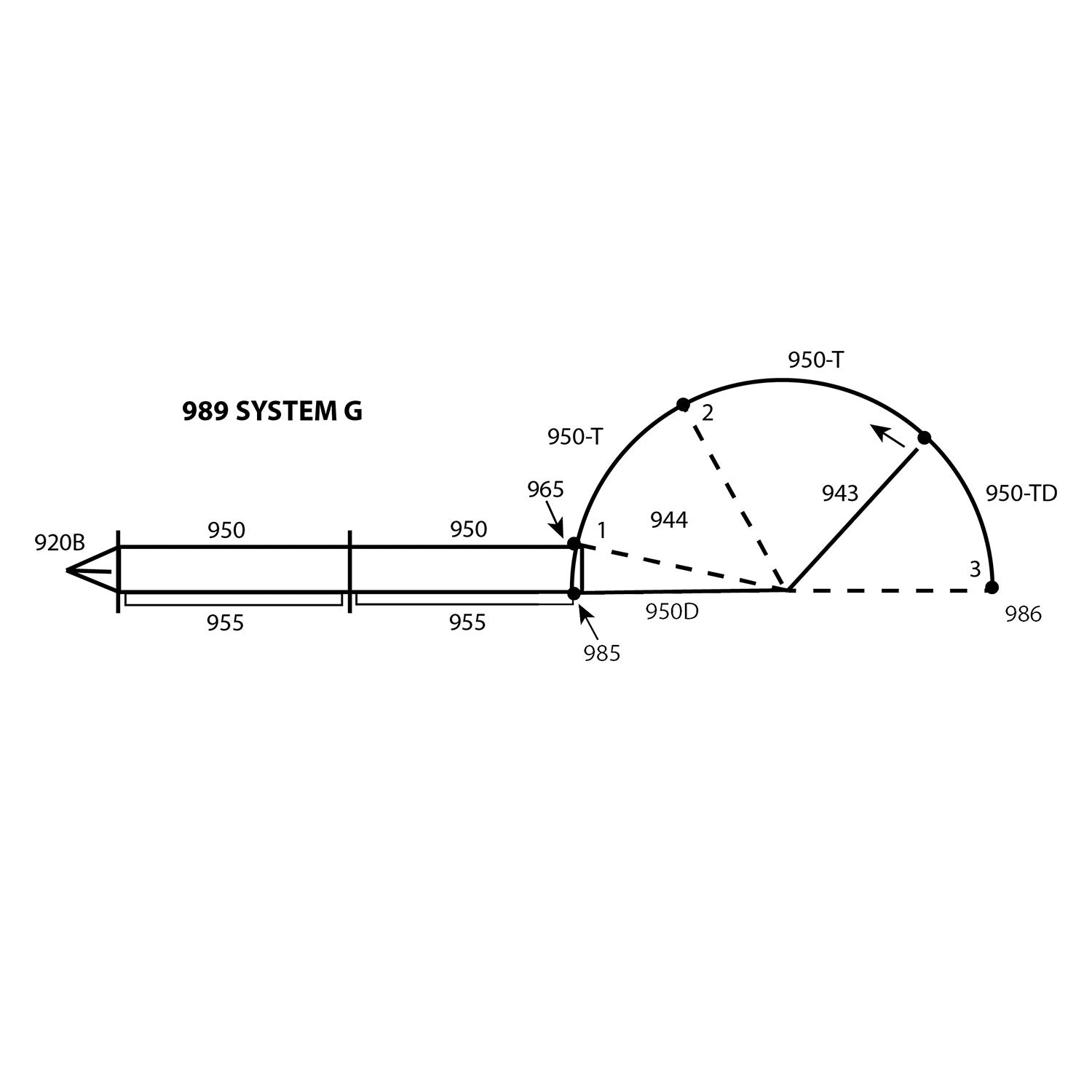

What’s Included in System G

• (1) 0920B – 2-Way Sort
• (1) 0943-8 – 8 ft Slide/Swing Gate
• (1) 0944 – Tub Support Assembly
• (2) 0950 – 8 ft Solid Corral Panels
• (1) 0950D – Special-Length Solid Panel
• (2) 0950-T – 8 ft Curved Solid Tub Panels
• (1) 0950-TD – Short Curved Tub Panel
• (2) 0955 – 8 ft Solid Panels with 12 in Drop Top
• (1) 0965 – Flat Anti-Backup Plate
• (1) 0970 – Corral Support Stand
• (1) 0985 – Guillotine Gate
• (1) 0986 – Telescoping Rope Support
• (24) 0945 – Heavy-Duty Zinc-Plated Drop Pins

Detailed System G Components

1-0920B 2-Way Sort
Directs sheep and goats into two separate sorting directions.

1-0943-8 8 ft Slide/Swing Gate
Slides or swings open for flexible livestock access and control. 42 in H.

1-0944 Tub Support Assembly
Supports and stabilizes the System G crowding tub.

2-0950 8 ft Solid Corral Panels
Solid panels used to guide livestock and limit outside distractions. 42 in H.

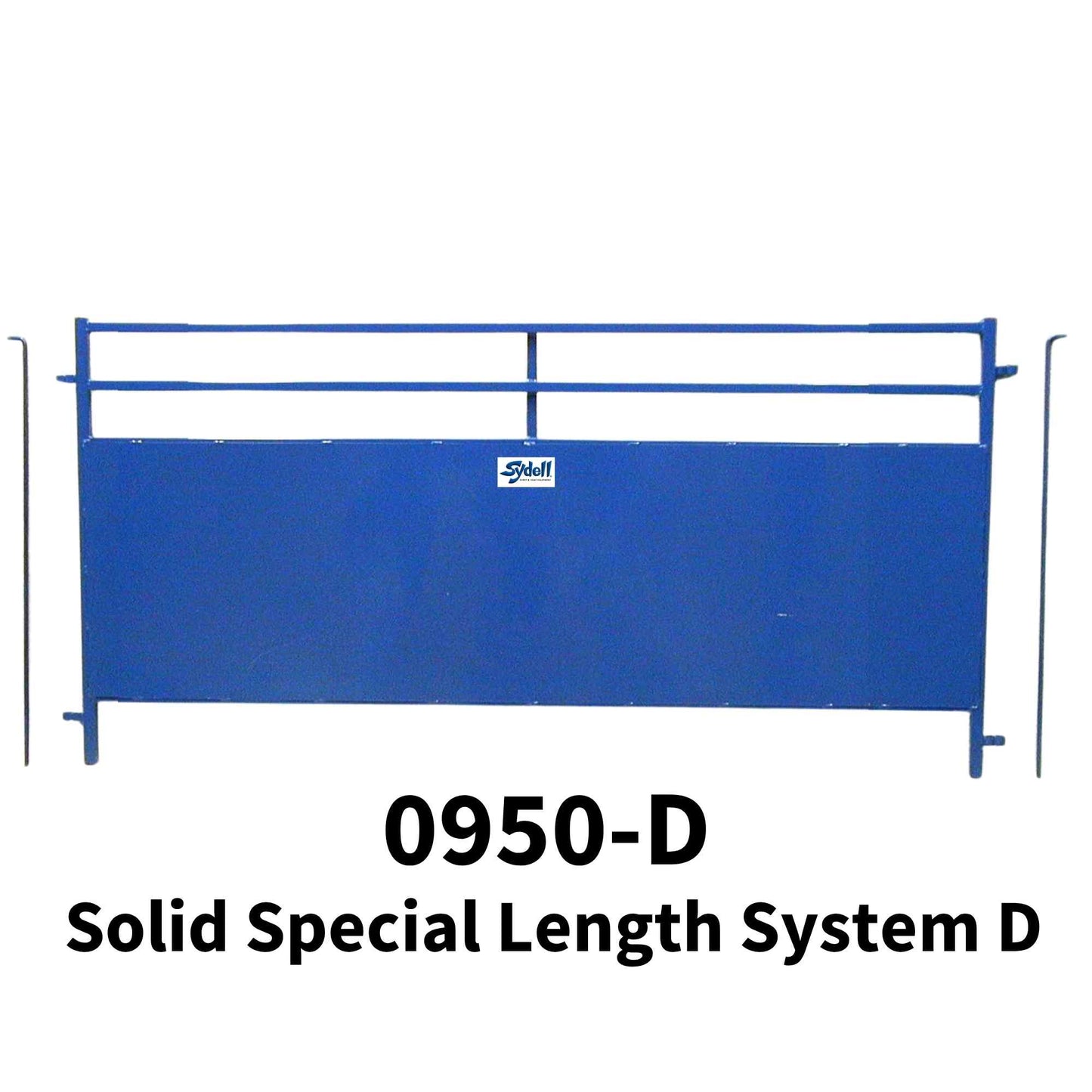

1-0950D Special-Length Solid Panel
Special-length solid panel designed to complete the System G crowding and working layout. 42 in H.

2-0950-T 8 ft Curved Solid Tub Panels
Form the curved portion of the crowding tub and help guide livestock toward the working alley. 42 in H.

1-0950-TD Short Curved Tub Panel
Short curved solid panel designed to complete the System G crowding tub. 42 in H.

2-0955 8 ft Solid Panels with 12 in Drop Top
Solid working-alley panels with a lowered top section for easier handler access. 42 in overall height.

1-0965 Flat Anti-Backup Plate
Helps discourage sheep and goats from backing up in the working alley.

1-0970 Corral Support Stand
Provides additional support and stability to the working system.

1-0985 Guillotine Gate
Opens and closes vertically to control livestock movement from the crowding area into the working alley.

1-0986 Telescoping Rope Support
Supports the rope-operated Guillotine Gate system.

24-0945 Heavy-Duty Drop Pins
Zinc-plated 1/2 in x 42 in pins used to securely connect panels, gates, and system components.

Designed for Everyday Sheep & Goat Management

System G provides a controlled setup for routine livestock handling while maintaining a relatively narrow footprint. It can be used for:

• Sorting and separating livestock
• Vaccinations and health checks
• Identification and tagging
• Breeding management
• Hoof care and treatment
• Flock and herd separation
• Moving animals through weighing or treatment equipment
• General sheep and goat handling

Ideal For

System G is well suited for family farms and ranches, breeding and registered stock operations, commercial sheep and goat producers, universities, research facilities, veterinary facilities, and operations where a complete working system is needed but available handling space is limited.

Finish Options

Painted steel is standard. Galvanized finish is available as an option where applicable.

Proudly Made in the USA by Sydell — a third-generation, veteran-owned, woman-owned family business with over 45 years of experience manufacturing trusted sheep and goat handling equipment.
